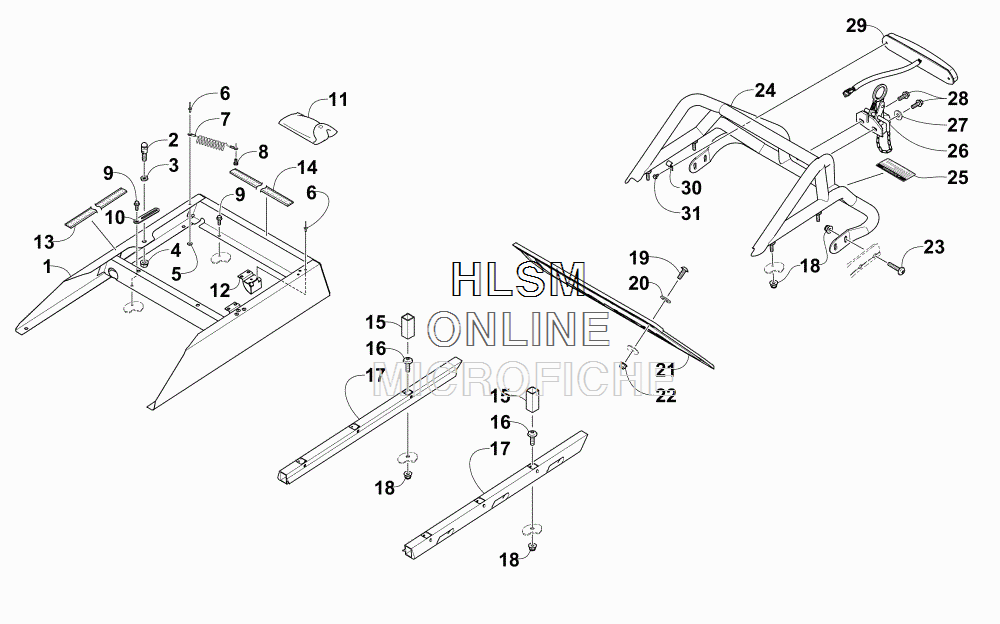

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (RUSSIAN) (BLACK) [S2015BCNWLRUB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-065 RISER, SEAT - ASSEMBLY
    RISER, SEAT - ASSEMBLY
  • 2
    1623-345 STUD, SEAT
    STUD, SEAT
  • 3
    1623-083 NUT
    NUT
  • 4
    8422-002 NUT, LOCK
    NUT, LOCK
  • 5
    0123-802 WASHER
    WASHER
  • 6
    8060-706 RIVET
    RIVET
  • 7
    4606-162 CABLE
    CABLE
  • 8
    1623-022 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 9
    8408-616 SCREW, CAP
    SCREW, CAP
  • 10
    1623-984 CLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
    CLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
  • 11
    5706-054 KIT, TOOL
    KIT, TOOL
  • 12
    0623-579 HINGE, SEAT-BASE
    HINGE, SEAT-BASE
  • 13
    5606-802 SEAL, RISER (13 1/2 IN)
    SEAL, RISER (13 1/2 IN)
  • 14
    5606-803 SEAL, RISER (16 IN)
    SEAL, RISER (16 IN)
  • 15
    0441-592 BUSHING
    BUSHING
  • 16
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    4706-258 MOUNT, RACK - RIGHT (BLACK)
    MOUNT, RACK - RIGHT (BLACK)
  • 17
    4706-259 MOUNT, RACK - LEFT (BLACK)
    MOUNT, RACK - LEFT (BLACK)
  • 18
    8427-802 NUT, LOCK
    NUT, LOCK
  • 19
    1623-782 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0623-184 WASHER
    WASHER
  • 21
    3606-740 SNOWFLAP-BCWT
    SNOWFLAP-BCWT
  • 22
    8427-602 NUT, LOCK
    NUT, LOCK
  • 23
    8476-835 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    4706-065 BUMPER, REAR - (BLACK)
    BUMPER, REAR - (BLACK)
  • 25
    2621-214 DECAL, WARNING - TOWING (RUSSIAN)
    DECAL, WARNING - TOWING (RUSSIAN)
  • 26
    4606-156 HITCH, PINTLE
    HITCH, PINTLE
  • 27
    8050-242 WASHER
    WASHER
  • 28
    8408-832 SCREW, CAP
    SCREW, CAP
  • 29
    0609-887 TAILLIGHT, LED - (1.5 IN X 9.5 IN) (55 IN LEAD) - (RED)
    TAILLIGHT, LED - (1.5 IN X 9.5 IN) (55 IN LEAD) - (RED)
  • 30
    1623-786 CLAMP, WIRE
    CLAMP, WIRE
  • 31
    0623-301 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
