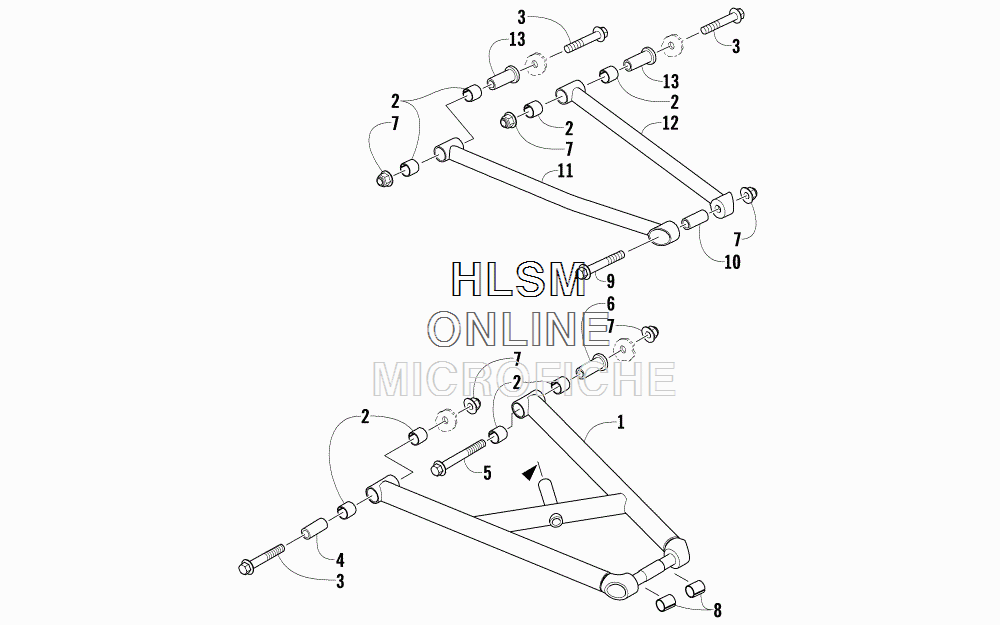

A-ARM ASSEMBLY для Arctic Cat BEARCAT 2000 XTE (RUSSIAN) (BLACK) [S2015BCDWERUB] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    2703-334 A-ARM, LOWER BLACK (INC. EIGHT NO. 2)
    A-ARM, LOWER BLACK (INC. EIGHT NO. 2)
  • 2
    1603-895 .........BEARING
    .........BEARING
  • 3
    8408-070 SCREW,CAP-HFH M10X1.25X70 CL8.8 Z & Y
    SCREW,CAP-HFH M10X1.25X70 CL8.8 Z & Y
  • 4
    2603-544 AXLE, INNER - LOWER A-ARM - FRONT
    AXLE, INNER - LOWER A-ARM - FRONT
  • 5
    8408-090 SCREW,CAP-HFH M10X1.25X90 CL8.8 Z & Y
    SCREW,CAP-HFH M10X1.25X90 CL8.8 Z & Y
  • 6
    2603-543 AXLE, LOWER A-ARM - REAR
    AXLE, LOWER A-ARM - REAR
  • 7
    8427-002 NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
    NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z & Y
  • 8
    2603-577 BEARING, SPLIT
    BEARING, SPLIT
  • 9
    8408-065 SCREW,CAP-HFH M10X1.25X65 CL8.8 Z & Y
    SCREW,CAP-HFH M10X1.25X65 CL8.8 Z & Y
  • 10
    2603-643 AXLE, SPINDLE
    AXLE, SPINDLE
  • 11
    2703-328 A-ARM, UPPER - FRONT (BLACK) (INC. FOUR NO. 2)
    A-ARM, UPPER - FRONT (BLACK) (INC. FOUR NO. 2)
  • 12
    2703-329 A-ARM, UPPER - REAR (BLACK) (INC. FOUR NO. 2)
    A-ARM, UPPER - REAR (BLACK) (INC. FOUR NO. 2)
  • 13
    2603-634 AXLE, INNER - UPPER A-ARM
    AXLE, INNER - UPPER A-ARM
