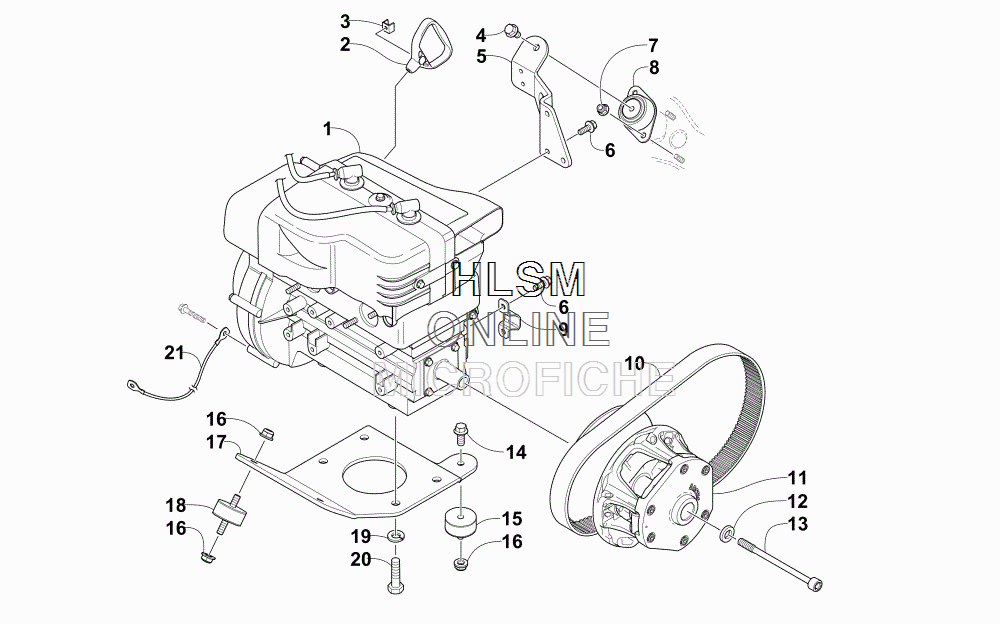

ENGINE AND RELATED PARTS для Arctic Cat BEARCAT 2000 XT (INTERNATIONAL) (ORANGE) [S2015BCDWTOSO] - 2015 года выпуска`
-
№АртикулНазвание
-
10762-584 LONG BLOCK,ENGINE-570LONG BLOCK,ENGINE-570
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48409-020 SCREW, CAPSCREW, CAP
-
50608-571 MOUNT, ENGINE - REARMOUNT, ENGINE - REAR
-
61623-553 SCREW, CAP - HFH 5/16-18 X .750 W/2353SCREW, CAP - HFH 5/16-18 X .750 W/2353
-
78427-802 NUT, LOCKNUT, LOCK
-
80608-496 MOUNT, ENGINEMOUNT, ENGINE
-
90708-543 PLATE, SNUBBERPLATE, SNUBBER
-
100627-046 BELT, DRIVEBELT, DRIVE
-
110746-435 CLUTCH,DRIVE-UNCAL-(8.25 33MM/S)CLUTCH,DRIVE-UNCAL-(8.25 33MM/S)
-
121623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
131623-792 BOLT, CLUTCHBOLT, CLUTCH
-
142623-075 SCREW, CAPSCREW, CAP
-
150608-251 MOUNT, ENGINE - SINGLEMOUNT, ENGINE - SINGLE
-
168047-486 NUT, LOCKNUT, LOCK
-
170608-562 PLATE, ENGINE MOUNTPLATE, ENGINE MOUNT
-
180608-250 MOUNT, ENGINE - DOUBLEMOUNT, ENGINE - DOUBLE
-
198051-332 WASHER,SPR LOCK-1/2 .502X.869X.125WASHER,SPR LOCK-1/2 .502X.869X.125
-
208002-402 SCREW, CAPSCREW, CAP
-
210686-126 WIRE, GROUNDWIRE, GROUND
