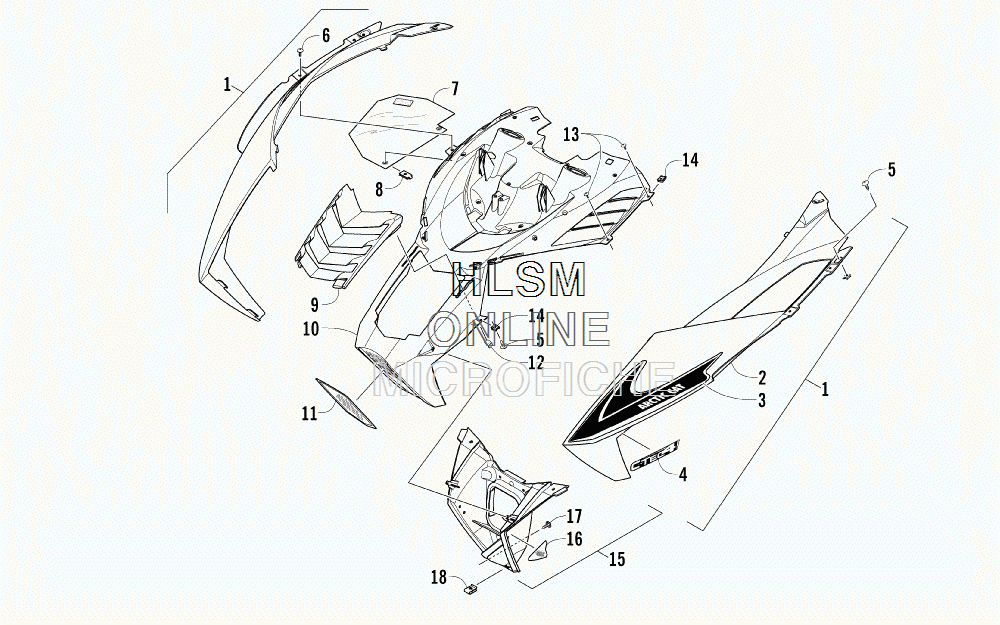

HOOD ASSEMBLY для Arctic Cat ZR 7000 Sno Pro - GREEN [S2014ZRUEPUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-128 HOOD W/DECALS - RIGHT - WHITE (INC. 2-4)
    HOOD W/DECALS - RIGHT - WHITE (INC. 2-4)
  • 1
    4718-129 HOOD W/DECALS - LEFT - WHITE (INC. 2-4)
    HOOD W/DECALS - LEFT - WHITE (INC. 2-4)
  • 2
    6606-324 ...HOOD W/O DECALS - RIGHT - WHITE
    ...HOOD W/O DECALS - RIGHT - WHITE
  • 2
    6606-325 ...HOOD W/O DECALS - LEFT - WHITE
    ...HOOD W/O DECALS - LEFT - WHITE
  • 3
    0621-676 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 3
    0621-677 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 4
    0621-993 ...DECAL, "C-TEC"
    ...DECAL, "C-TEC"
  • 5
    0623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
    SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 6
    1623-031 SCREW, SELF TAP-TSTRH #10-12X1.00
    SCREW, SELF TAP-TSTRH #10-12X1.00
  • 7
    1712-899 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 8
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 10
    6606-510 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 11
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 12
    1623-694 CLIP, RETAINING
    CLIP, RETAINING
  • 13
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 15
    5706-879 PLENUM, INTAKE - LOWER FRONT (INC. 16)
    PLENUM, INTAKE - LOWER FRONT (INC. 16)
  • 16
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 17
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
