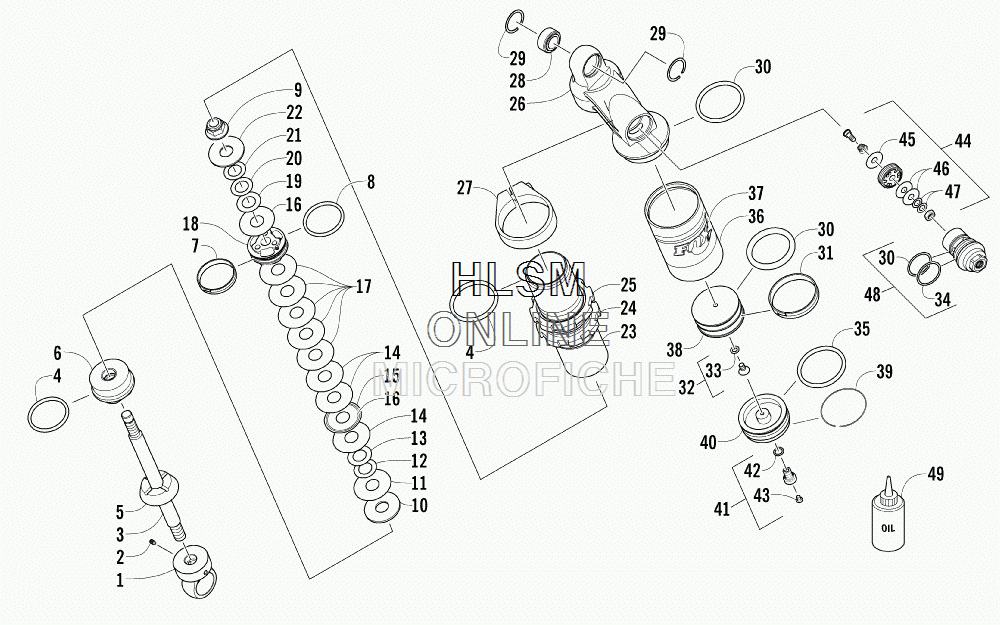

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 6000 Sno Cross Sno Pro R - GREEN [S2014ACDPRUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    2704-311 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    3604-842 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1603-940 SCREW, SET
    SCREW, SET
  • 3
    3604-895 ROD, SHOCK
    ROD, SHOCK
  • 4
    2603-849 KIT, SEAL/REBUILD (INC. 5-9)
    KIT, SEAL/REBUILD (INC. 5-9)
  • 5
    3604-530 ...BUMPER
    ...BUMPER
  • 6
    2604-413 ...BEARING - ASSEMBLY
    ...BEARING - ASSEMBLY
  • 7
    2603-994 ...STRAP, PISTON
    ...STRAP, PISTON
  • 8
    2604-214 ...O-RING
    ...O-RING
  • 9
    0603-301 ...NUT
    ...NUT
  • 10
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 11
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 12
    0603-333 VALVE, 0.800 X 0.006 IN.
    VALVE, 0.800 X 0.006 IN.
  • 13
    0603-337 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 14
    0603-890 VALVE, 1.300 X 0.015 IN.
    VALVE, 1.300 X 0.015 IN.
  • 15
    3604-788 VALVE, RING - 1.250 X 0.012 IN.
    VALVE, RING - 1.250 X 0.012 IN.
  • 16
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 17
    0603-891 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 18
    2603-987 PISTON, HIGH FLOW
    PISTON, HIGH FLOW
  • 19
    3604-171 VALVE, 0.600 X 0.004 IN.
    VALVE, 0.600 X 0.004 IN.
  • 20
    0603-731 VALVE, 0.700 X 0.004 IN.
    VALVE, 0.700 X 0.004 IN.
  • 21
    0603-895 VALVE, 0.800 X 0.004 IN.
    VALVE, 0.800 X 0.004 IN.
  • 22
    3604-170 WASHER, TOP OUT
    WASHER, TOP OUT
  • 23
    3604-729 BODY, SHOCK
    BODY, SHOCK
  • 24
    2604-840 NUT, ADJUSTER
    NUT, ADJUSTER
  • 25
    2604-841 COLLAR, LOCKING - ADJUSTER NUT
    COLLAR, LOCKING - ADJUSTER NUT
  • 26
    3604-522 END CAP, SHOCK/RESERVOIR (INC. 27-29)
    END CAP, SHOCK/RESERVOIR (INC. 27-29)
  • 27
    3604-532 ...CLAMP, BODY/END CAP
    ...CLAMP, BODY/END CAP
  • 28
    3604-526 ...BEARING
    ...BEARING
  • 29
    3604-527 ...RING, RETAINING
    ...RING, RETAINING
  • 30
    3604-539 KIT, REBUILD - RESERVOIR (INC. 31-35 AND 41-43)
    KIT, REBUILD - RESERVOIR (INC. 31-35 AND 41-43)
  • 31
    1603-235 ...STRAP, PISTON
    ...STRAP, PISTON
  • 32
    1604-316 ...SCREW, MACHINE W/O-RING (INC. 33)
    ...SCREW, MACHINE W/O-RING (INC. 33)
  • 33
    1604-425 ......O-RING
    ......O-RING
  • 34
    2603-502 ...O-RING
    ...O-RING
  • 35
    0603-671 ...O-RING
    ...O-RING
  • 36
    3604-528 RESERVOIR
    RESERVOIR
  • 37
    3604-724 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 38
    3604-524 PISTON, INTERNAL FLOATING
    PISTON, INTERNAL FLOATING
  • 39
    0604-992 RING, RETAINING
    RING, RETAINING
  • 40
    2603-525 END CAP, RESERVOIR (INC. 35 AND 41-42)
    END CAP, RESERVOIR (INC. 35 AND 41-42)
  • 41
    0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 42)
    ...VALVE, PRESSURE - ASSEMBLY (INC. 42)
  • 42
    1604-318 ......O-RING
    ......O-RING
  • 43
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 44
    3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 45-47)
    PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 45-47)
  • 45
    0603-331 ...VALVE, 0.700 X 0.008 IN.
    ...VALVE, 0.700 X 0.008 IN.
  • 46
    2603-501 ...VALVE, 0.700 X 0.010 IN.
    ...VALVE, 0.700 X 0.010 IN.
  • 47
    3604-165 ...PLATE, BACKUP
    ...PLATE, BACKUP
  • 48
    2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 34)
    CARTRIDGE, DAMPING ADJUSTER (INC. 34)
  • 49
    5639-530 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
