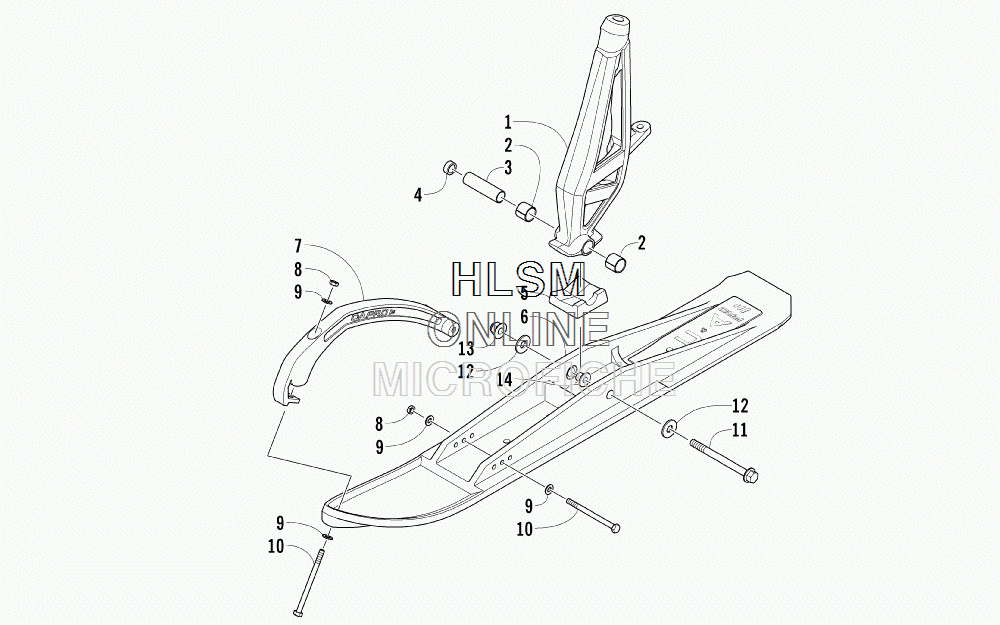

SKI AND SPINDLE ASSEMBLY для Arctic Cat ZR 6000 Cross Country Sno Pro R - GREEN [S2014ACDCCUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3703-258 SPINDLE, STEERING - RIGHT - GREEN (INC. 2)
    SPINDLE, STEERING - RIGHT - GREEN (INC. 2)
  • 1
    3703-259 SPINDLE, STEERING - LEFT - GREEN (INC. 2)
    SPINDLE, STEERING - LEFT - GREEN (INC. 2)
  • 2
    0603-158 ...BEARING
    ...BEARING
  • 3
    2603-813 AXLE, SPINDLE
    AXLE, SPINDLE
  • 4
    2603-208 SPACER
    SPACER
  • 5
    3603-340 DAMPER, SKI - RIGHT
    DAMPER, SKI - RIGHT
  • 5
    3603-341 DAMPER, SKI - LEFT
    DAMPER, SKI - LEFT
  • 6
    3703-094 SKI (INC. 7-10)
    SKI (INC. 7-10)
  • 7
    2603-708 ...HANDLE, PLASTIC - BLACK
    ...HANDLE, PLASTIC - BLACK
  • 8
    0623-928 ...NUT, LOCK
    ...NUT, LOCK
  • 9
    0623-927 ...WASHER
    ...WASHER
  • 10
    1623-684 ...SCREW, CAP
    ...SCREW, CAP
  • 11
    1623-996 SCREW, CAP
    SCREW, CAP
  • 12
    0423-073 WASHER
    WASHER
  • 13
    8427-002 NUT, LOCK
    NUT, LOCK
  • 14
    3603-256 INSERT, SKI SADDLE
    INSERT, SKI SADDLE
