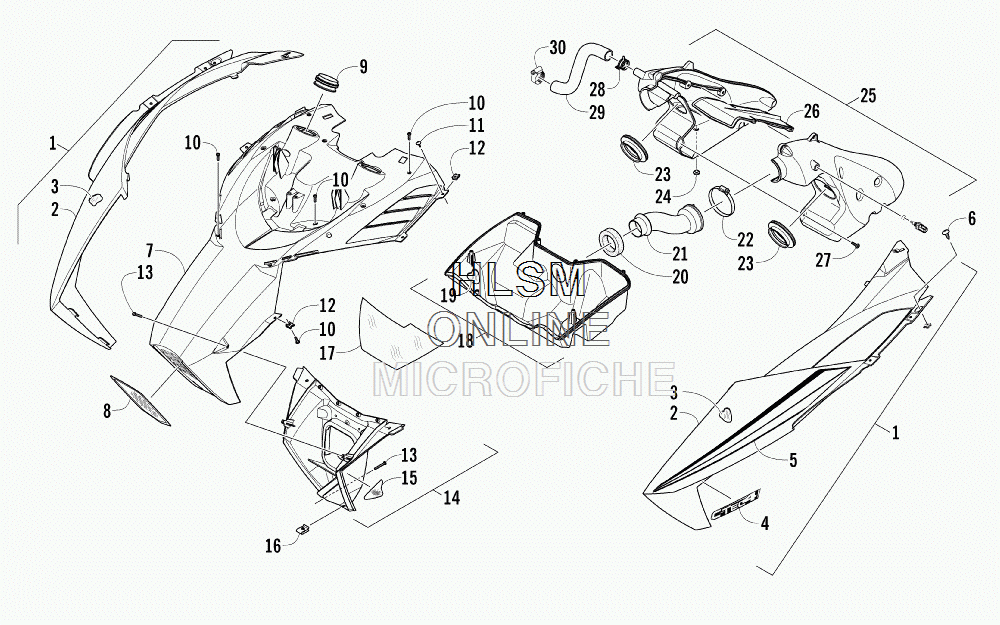

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 5000 LXR - GREEN [S2014ZRNLXUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-838 HOOD W/DECALS - RIGHT - GREEN (INC. 2-5)
    HOOD W/DECALS - RIGHT - GREEN (INC. 2-5)
  • 1
    3718-839 HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
    HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
  • 2
    3718-264 ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
    ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
  • 2
    3718-837 ...HOOD W/O DECALS - LEFT - GREEN (INC. 3)
    ...HOOD W/O DECALS - LEFT - GREEN (INC. 3)
  • 3
    6606-420 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 3
    6606-415 ......FOIL, PROTECTIVE - LEFT
    ......FOIL, PROTECTIVE - LEFT
  • 4
    0621-993 ...DECAL, HOOD - "C-TEC"
    ...DECAL, HOOD - "C-TEC"
  • 5
    0621-650 ...DECAL, HOOD - RIGHT - GREEN
    ...DECAL, HOOD - RIGHT - GREEN
  • 5
    0621-651 ...DECAL, HOOD - LEFT - GREEN
    ...DECAL, HOOD - LEFT - GREEN
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    6606-383 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 8
    0608-696 SCREEN, VENT
    SCREEN, VENT
  • 9
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 10
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 11
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 13
    1623-929 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    5706-357 PLENUM, INTAKE - LOWER FRONT (INC. 15)
    PLENUM, INTAKE - LOWER FRONT (INC. 15)
  • 15
    0621-989 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 16
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 17
    6606-421 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 18
    5706-372 PLENUM, INTAKE - LOWER REAR (INC. 19)
    PLENUM, INTAKE - LOWER REAR (INC. 19)
  • 19
    6606-419 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 20
    0617-644 SEAL
    SEAL
  • 21
    2670-164 DUCT, INTAKE
    DUCT, INTAKE
  • 22
    0423-018 CLAMP
    CLAMP
  • 23
    2670-161 BOOT, THROTTLE BODY
    BOOT, THROTTLE BODY
  • 24
    0406-877 BUMPER
    BUMPER
  • 25
    2670-160 SILENCER, AIR - ASSEMBLY (INC. 26-27)
    SILENCER, AIR - ASSEMBLY (INC. 26-27)
  • 26
    2670-183 ...BAFFLE, AIR SILENCER
    ...BAFFLE, AIR SILENCER
  • 27
    1623-251 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 28
    1623-229 CLAMP, HOSE
    CLAMP, HOSE
  • 29
    0610-852 HOSE, BREATHER
    HOSE, BREATHER
  • 30
    1623-291 CLAMP, HOSE
    CLAMP, HOSE
