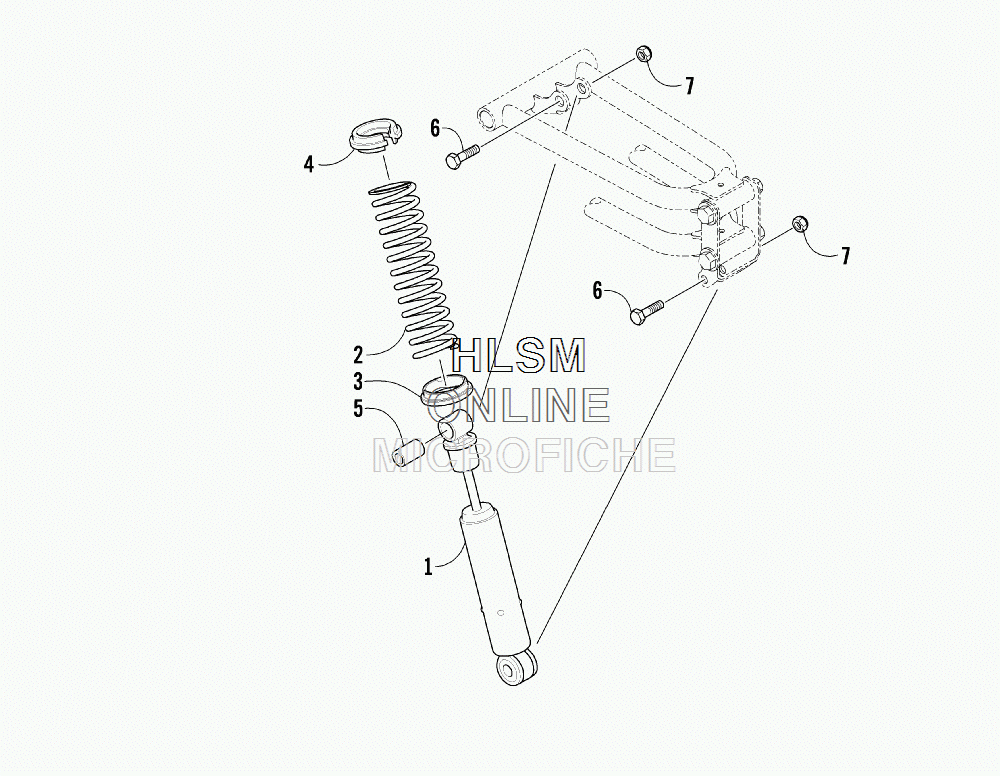

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat ZR 120 - GREEN [S2014ZRAAAUSG] - 2014 года выпуска
-
№АртикулНазвание
-
12603-517 SHOCK, SKISHOCK, SKI
-
22703-397 SPRING, SHOCK - WHITESPRING, SHOCK - WHITE
-
30403-027 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
42603-520 RETAINER, SPRING - UPPERRETAINER, SPRING - UPPER
-
51603-531 AXLEAXLE
-
68002-225 SCREW, CAPSCREW, CAP
-
78041-486 NUT, LOCKNUT, LOCK
Все узлы модели:
- A-ARM ASSEMBLY
- AIR CLEANER ASSEMBLY
- BELLY PAN AND EXHAUST ASSEMBLIES
- CAMSHAFT AND VALVE ASSEMBLY
- CARBURETOR ASSEMBLY
- CHASSIS- FOOTREST- AND REAR BUMPER ASSEMBLY
- CRANKCASE/COVER ASSEMBLY
- CYLINDER AND AIR BREATHER ASSEMBLY
- DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES
- ENGINE AND RELATED PARTS
- • FRONT SUSPENSION SHOCK ABSORBER
- GAS TANK- SEAT- AND TAILLIGHT ASSEMBLY
- GOVERNOR ASSEMBLY
- HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY
- MAGNETO
- PISTON AND CRANKSHAFT ASSEMBLY
- REAR SUSPENSION ARM ASSEMBLY
- RECOIL STARTER AND AIR SHROUD ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SLIDE RAIL- IDLER WHEELS- AND TRACK ASSEMBLY
- STEERING POST AND TIE ROD ASSEMBLY
