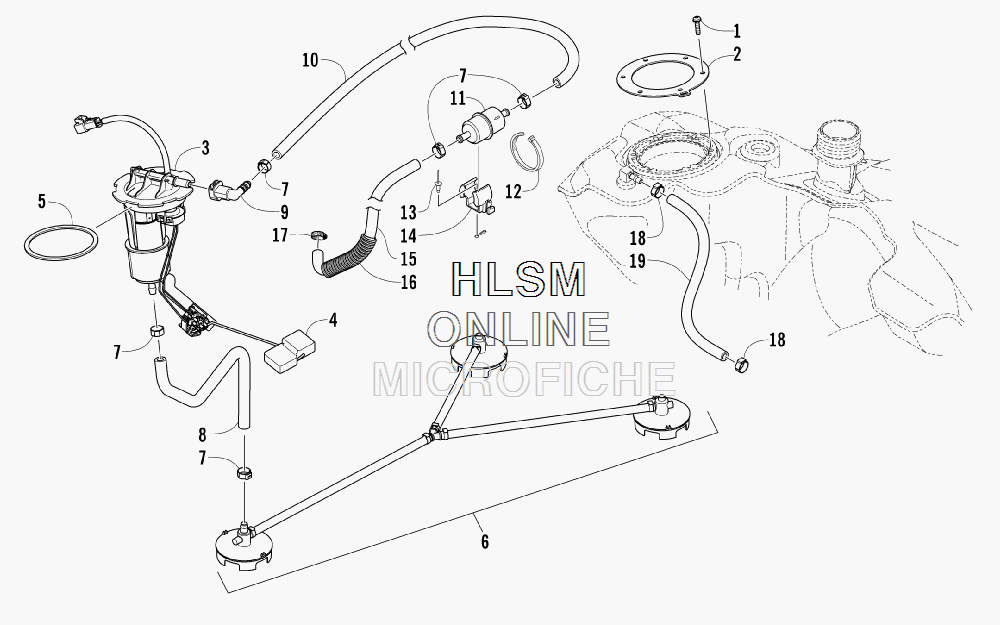

FUEL PUMP ASSEMBLY для Arctic Cat XF 9000 Sno Pro - ORANGE [S2014XFNTPUSO] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-898 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 2
    2670-042 PLATE, RETAINING - FUEL PUMP
    PLATE, RETAINING - FUEL PUMP
  • 3
    2670-275 PUMP, FUEL - ASSEMBLY (INC. 4)
    PUMP, FUEL - ASSEMBLY (INC. 4)
  • 4
    2670-235 ...FLOAT, FUEL PUMP-WALBRO 75-22
    ...FLOAT, FUEL PUMP-WALBRO 75-22
  • 5
    0470-838 SEAL
    SEAL
  • 6
    2670-377 PICKUP, FUEL - ASSEMBLY
    PICKUP, FUEL - ASSEMBLY
  • 7
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 8
    2670-442 HOSE, FUEL PUMP/PICKUP
    HOSE, FUEL PUMP/PICKUP
  • 9
    1670-878 FITTING, QUICK-CONNECT
    FITTING, QUICK-CONNECT
  • 10
    0610-876 HOSE, GASLINE - PUMP/FILTER
    HOSE, GASLINE - PUMP/FILTER
  • 11
    1670-825 FILTER, FUEL
    FILTER, FUEL
  • 12
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 12
    0623-751 TIE, CABLE - 11.75 IN.
    TIE, CABLE - 11.75 IN.
  • 13
    8061-706 RIVET, BLIND-LF SS64 BLACK
    RIVET, BLIND-LF SS64 BLACK
  • 14
    2670-339 BRACKET, MOUNTING - FUEL FILTER
    BRACKET, MOUNTING - FUEL FILTER
  • 15
    0610-874 HOSE, GASLINE - FILTER/THROTTLE BODY
    HOSE, GASLINE - FILTER/THROTTLE BODY
  • 16
    0619-776 CONDUIT, FLEXIBLE - 5 FT - OPTIONAL
    CONDUIT, FLEXIBLE - 5 FT - OPTIONAL
  • 17
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0610-415 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    2670-330 HOSE, GASLINE - RETURN
    HOSE, GASLINE - RETURN
