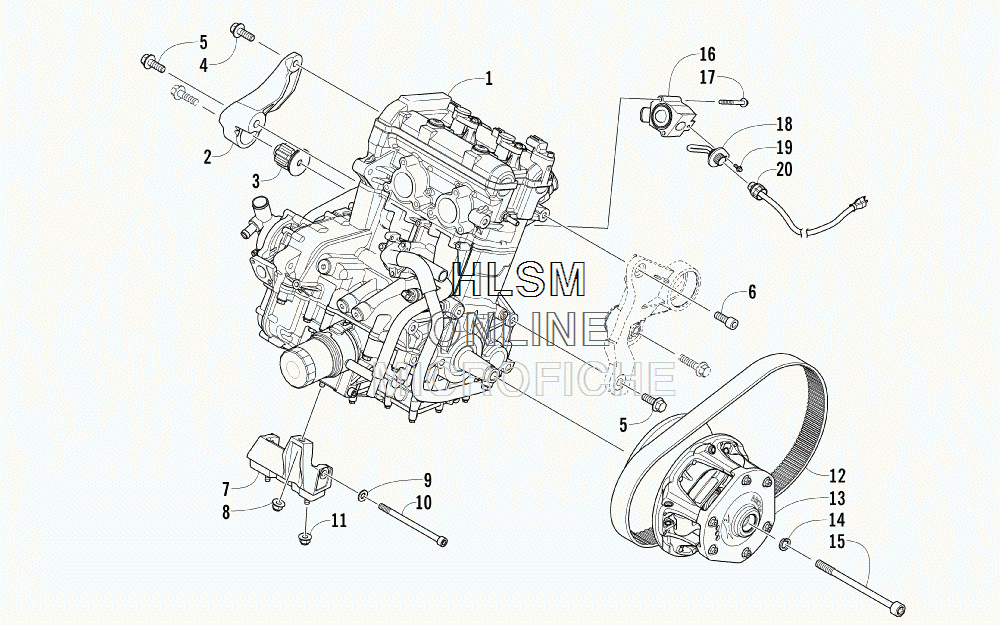

ENGINE AND RELATED PARTS для Arctic Cat XF 9000 LXR - BLACK [S2014XFNTSUSB] - 2014 года выпуска`
-
№АртикулНазвание
-
10762-607 ENGINE, AB11L5ENGINE, AB11L5
-
20708-574 BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)
-
30608-654 ...MOUNT, ENGINE...MOUNT, ENGINE
-
48413-036 SCREW, CAP-HFH M10X1.25X35 CL10.9 W/2353SCREW, CAP-HFH M10X1.25X35 CL10.9 W/2353
-
58413-241 SCREW, CAP-HFH M12X1.25X40 CL10.9W/2353SCREW, CAP-HFH M12X1.25X40 CL10.9W/2353
-
61623-985 SCREW, CAP-HSH-M10X1.25X35-CL12.9-W/2510SCREW, CAP-HSH-M10X1.25X35-CL12.9-W/2510
-
70608-619 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
88427-002 NUT, LOCKNUT, LOCK
-
98450-157 WASHERWASHER
-
101623-925 SCREW, CAPSCREW, CAP
-
118427-802 NUT, LOCKNUT, LOCK
-
120627-082 BELT, DRIVEBELT, DRIVE
-
130746-444 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
141623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
151623-620 BOLT, CLUTCHBOLT, CLUTCH
-
160609-928 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
178408-650 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
180609-927 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
198408-617 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
200709-082 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
