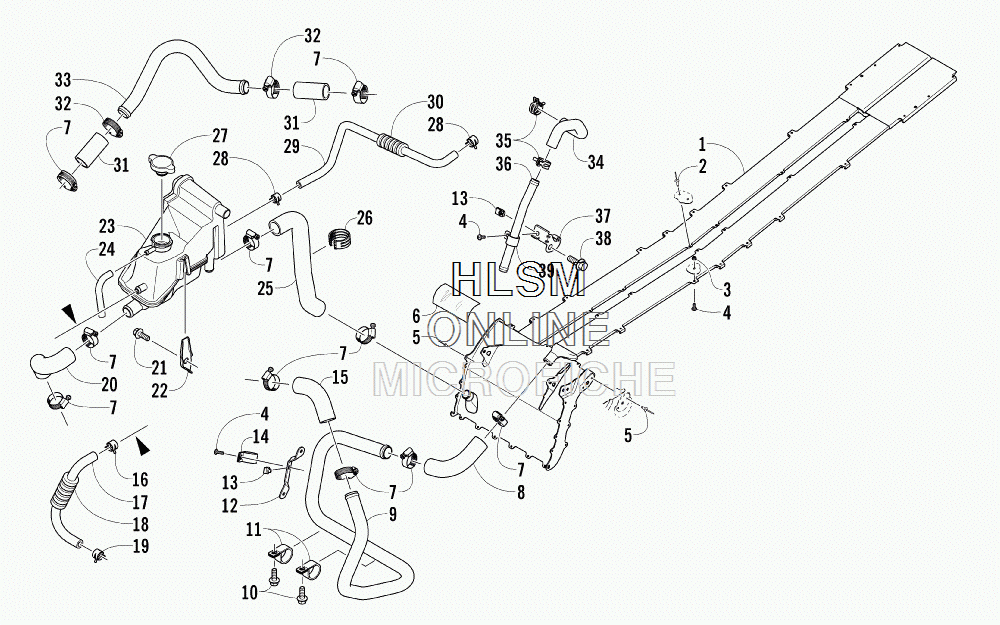

COOLING ASSEMBLY для Arctic Cat XF 9000 High Country Sno Pro - BLACK [S2014X9NHIUSB] - 2014 года выпуска`
-
№АртикулНазвание
-
10713-079 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVETRIVET
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
58060-686 RIVETRIVET
-
60619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
71623-230 CLAMP, HOSECLAMP, HOSE
-
80610-866 HOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGERHOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGER
-
90613-050 TUBE, COOLANT - ENGINE/HEAT EXCHANGERTUBE, COOLANT - ENGINE/HEAT EXCHANGER
-
108409-017 SCREW, CAPSCREW, CAP
-
111623-916 CLAMP, ROUTINGCLAMP, ROUTING
-
120608-668 BRACKET, MOUNTING - COOLANT TUBEBRACKET, MOUNTING - COOLANT TUBE
-
131623-637 CLIP, U-NUTCLIP, U-NUT
-
140423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
150610-865 HOSE, COOLANT - THERMOSTAT/COOLANT TUBEHOSE, COOLANT - THERMOSTAT/COOLANT TUBE
-
161623-973 CLAMP, HOSECLAMP, HOSE
-
170610-845 HOSE, COOLANTHOSE, COOLANT
-
181619-356 CONDUIT, HIGH-TEMPERATURE - 5 FTCONDUIT, HIGH-TEMPERATURE - 5 FT
-
191623-281 CLAMP, HOSECLAMP, HOSE
-
200610-849 HOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANK
-
218408-026 SCREW, CAPSCREW, CAP
-
220613-048 BRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANKBRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANK
-
230613-070 TANK, COOLANT-OIL SEPARATOR - ASSEMBLYTANK, COOLANT-OIL SEPARATOR - ASSEMBLY
-
240613-120 HOSE, VENTHOSE, VENT
-
250610-842 HOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANK
-
260623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
272606-284 CAPCAP
-
281623-278 CLAMP, HOSECLAMP, HOSE
-
290610-841 HOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODYHOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODY
-
300619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
310610-840 HOSEHOSE
-
322623-038 CLAMP, HOSECLAMP, HOSE
-
330613-049 TUBE, COOLANT - CYLINDER HEAD/PUMPTUBE, COOLANT - CYLINDER HEAD/PUMP
-
340610-867 HOSE, COOLANTHOSE, COOLANT
-
351623-285 CLAMP, HOSECLAMP, HOSE
-
360613-051 TUBE, COOLANTTUBE, COOLANT
-
370613-138 BRACKET, RETAININGBRACKET, RETAINING
-
383007-825 SCREW, CAPSCREW, CAP
-
392623-006 CLAMP, ROUTINGCLAMP, ROUTING
