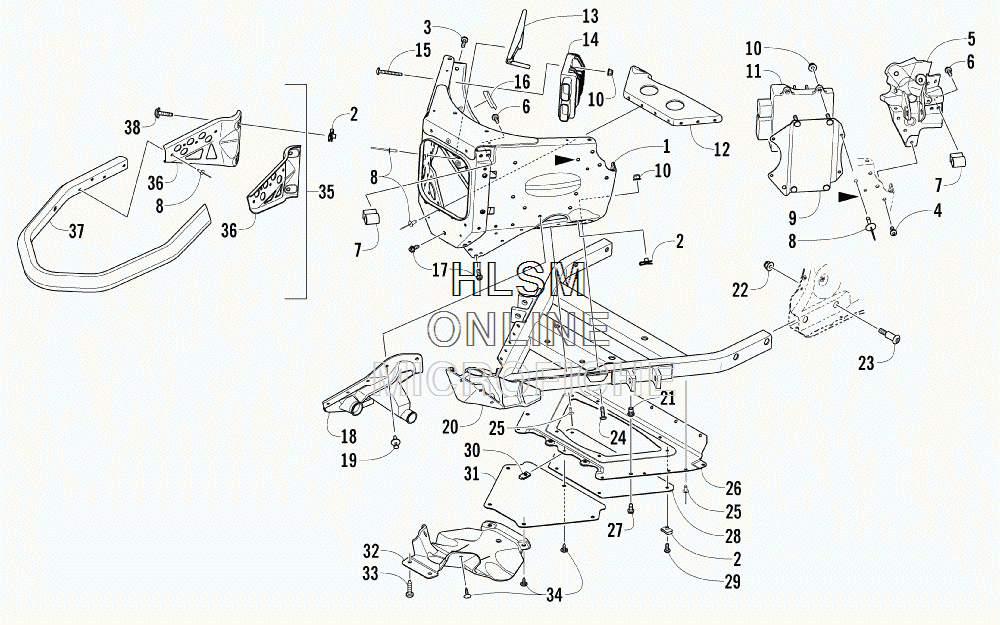

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 7000 Sno Pro - GREEN [S2014XFUSPUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    1707-964 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)
    PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-5)
  • 2
    0423-577 ...CLIP, U-NUT
    ...CLIP, U-NUT
  • 3
    1623-683 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 4
    0423-538 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    1707-668 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
    ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
  • 5
    1707-669 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
    ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
  • 6
    8413-617 SCREW, CAP
    SCREW, CAP
  • 7
    1607-233 BRACKET, MOUNTING - UPPER A-ARM
    BRACKET, MOUNTING - UPPER A-ARM
  • 8
    8060-706 RIVET
    RIVET
  • 9
    0745-391 BRACKET, MOUNTING - ECM
    BRACKET, MOUNTING - ECM
  • 10
    8427-602 NUT, LOCK
    NUT, LOCK
  • 11
    0730-192 ECM
    ECM
  • 12
    1607-127 BRACKET, REINFORCEMENT
    BRACKET, REINFORCEMENT
  • 13
    1607-126 BRACKET, STEERING STOP
    BRACKET, STEERING STOP
  • 14
    0824-072 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 15
    8477-625 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0706-371 TRIM - 3 FT
    TRIM - 3 FT
  • 17
    1623-959 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 18
    1605-028 BOOT, STEERING - RIGHT
    BOOT, STEERING - RIGHT
  • 18
    1605-029 BOOT, STEERING - LEFT
    BOOT, STEERING - LEFT
  • 19
    0623-362 CLIP, RETAINING
    CLIP, RETAINING
  • 20
    1707-843 FRAME, FRONT - LOWER
    FRAME, FRONT - LOWER
  • 21
    1623-797 INSERT
    INSERT
  • 22
    8427-802 NUT, LOCK
    NUT, LOCK
  • 23
    1623-817 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    8060-686 RIVET
    RIVET
  • 26
    1607-217 BELLY PAN - CENTER
    BELLY PAN - CENTER
  • 27
    8476-520 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    1607-218 COVER, ACCESS
    COVER, ACCESS
  • 29
    8468-617 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    1623-052 CLIP, U-NUT
    CLIP, U-NUT
  • 31
    1607-063 PANEL, ACCESS
    PANEL, ACCESS
  • 32
    6606-614 BELLY PAN - FRONT
    BELLY PAN - FRONT
  • 33
    2623-033 SCREW, MACHINE
    SCREW, MACHINE
  • 34
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 35
    1707-787 BUMPER, FRONT - ASSEMBLY - WHITE (INC. EIGHT NO. 8 AND 36-37)
    BUMPER, FRONT - ASSEMBLY - WHITE (INC. EIGHT NO. 8 AND 36-37)
  • 36
    1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
    ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
  • 36
    1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
    ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
  • 37
    1707-786 ...BUMPER, FRONT - WHITE
    ...BUMPER, FRONT - WHITE
  • 38
    0423-609 SCREW, MACHINE
    SCREW, MACHINE
