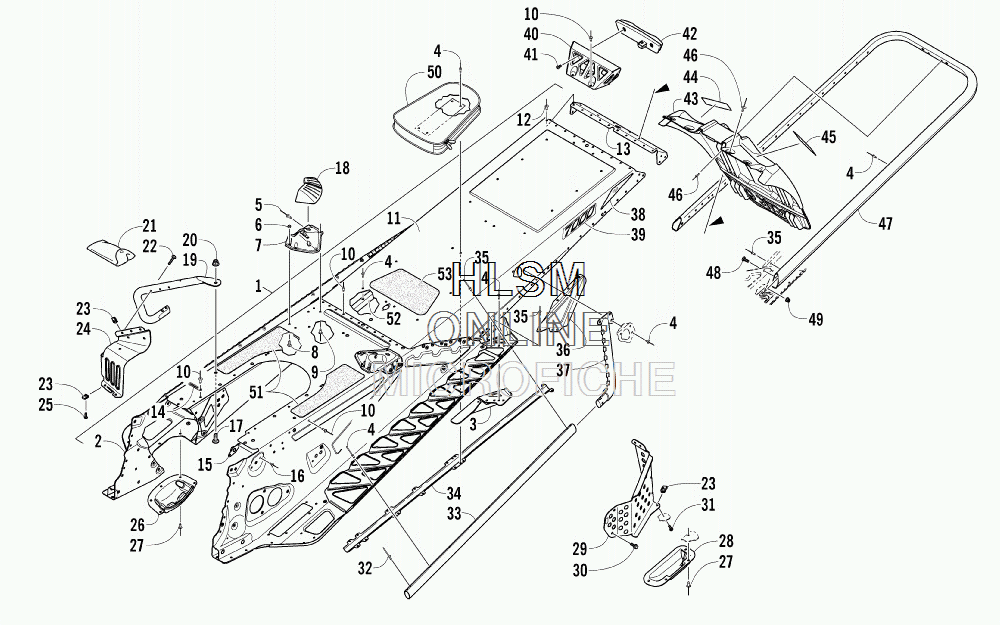

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 7000 Cross Country Sno Pro - BLACK [S2014X7UCCUSB] - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    2707-087 COMPLETE CHASSIS ASSEMBLY
    COMPLETE CHASSIS ASSEMBLY
  • 1
    2707-380 TUNNEL ASSEMBLY (INC. 2-13)
    TUNNEL ASSEMBLY (INC. 2-13)
  • 2
    2707-045 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
    ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
  • 3
    1607-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT
    ......BRACKET, MOUNTING - SUSPENSION - RIGHT
  • 3
    1607-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT
    ......BRACKET, MOUNTING - SUSPENSION - LEFT
  • 4
    8060-686 ......RIVET
    ......RIVET
  • 5
    1623-206 ...RIVET
    ...RIVET
  • 6
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 7
    1707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT
    ...BRACKET, MOUNTING - REAR SPAR - RIGHT
  • 7
    1707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT
    ...BRACKET, MOUNTING - REAR SPAR - LEFT
  • 8
    8476-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 9
    1623-257 ...RIVET
    ...RIVET
  • 10
    8060-682 ...RIVET
    ...RIVET
  • 11
    1607-395 ...TUNNEL, REAR
    ...TUNNEL, REAR
  • 12
    8060-484 ...RIVET
    ...RIVET
  • 13
    1607-104 ...END CAP, TUNNEL
    ...END CAP, TUNNEL
  • 14
    1623-984 CLAMP, ROUTING
    CLAMP, ROUTING
  • 15
    0608-631 PLATE, RETAINING
    PLATE, RETAINING
  • 16
    8060-688 RIVET
    RIVET
  • 17
    8476-820 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    6606-664 SUPPORT, GAS TANK - RIGHT
    SUPPORT, GAS TANK - RIGHT
  • 18
    6606-665 SUPPORT, GAS TANK - LEFT
    SUPPORT, GAS TANK - LEFT
  • 19
    1707-454 SUPPORT, FOOTREST - RIGHT - BLACK
    SUPPORT, FOOTREST - RIGHT - BLACK
  • 19
    1707-455 SUPPORT, FOOTREST - LEFT - BLACK
    SUPPORT, FOOTREST - LEFT - BLACK
  • 20
    8427-802 NUT, LOCK
    NUT, LOCK
  • 21
    0744-064 KIT, TOOL
    KIT, TOOL
  • 22
    8468-535 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    0607-996 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 24
    0607-997 FOOTREST - LEFT
    FOOTREST - LEFT
  • 25
    8470-516 SCREW, MACHINE
    SCREW, MACHINE
  • 26
    1607-109 PROTECTOR, CHAIN CASE
    PROTECTOR, CHAIN CASE
  • 27
    8061-708 RIVET
    RIVET
  • 28
    0607-351 PROTECTOR, BRAKE DISC
    PROTECTOR, BRAKE DISC
  • 29
    1607-371 SHIELD, BRAKE DISC
    SHIELD, BRAKE DISC
  • 30
    8408-613 SCREW, CAP
    SCREW, CAP
  • 31
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 32
    1623-130 RIVET
    RIVET
  • 33
    1607-092 ROLL, TUNNEL
    ROLL, TUNNEL
  • 34
    0630-316 PROTECTOR, HARNESS - TAILLIGHT EXTENSION
    PROTECTOR, HARNESS - TAILLIGHT EXTENSION
  • 35
    1623-241 RIVET
    RIVET
  • 36
    1607-162 GUSSET, RUNNING BOARD - RIGHT
    GUSSET, RUNNING BOARD - RIGHT
  • 36
    1607-163 GUSSET, RUNNING BOARD - LEFT
    GUSSET, RUNNING BOARD - LEFT
  • 37
    1607-040 GUSSET, TUNNEL ROLL - RIGHT
    GUSSET, TUNNEL ROLL - RIGHT
  • 37
    1607-041 GUSSET, TUNNEL ROLL - LEFT
    GUSSET, TUNNEL ROLL - LEFT
  • 38
    0621-990 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
  • 39
    0621-723 DECAL, TUNNEL - "7000"
    DECAL, TUNNEL - "7000"
  • 40
    0630-279 BRACKET, MOUNTING - TAILLIGHT
    BRACKET, MOUNTING - TAILLIGHT
  • 41
    8470-512 SCREW, MACHINE
    SCREW, MACHINE
  • 42
    0609-898 TAILLIGHT, LED
    TAILLIGHT, LED
  • 43
    6606-394 SNOWFLAP
    SNOWFLAP
  • 44
    5611-852 DECAL, WARNING - TOWING (FRENCH)
    DECAL, WARNING - TOWING (FRENCH)
  • 45
    5611-853 DECAL, WARNING - TOWING (ENGLISH)
    DECAL, WARNING - TOWING (ENGLISH)
  • 46
    8061-706 RIVET
    RIVET
  • 47
    1707-818 BUMPER, REAR - BLACK
    BUMPER, REAR - BLACK
  • 48
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 49
    8427-602 NUT, LOCK
    NUT, LOCK
  • 50
    6606-615 BAG, SPARE BELT
    BAG, SPARE BELT
  • 51
    6606-814 PAD, FUEL TANK - RIGHT
    PAD, FUEL TANK - RIGHT
  • 51
    6606-815 PAD, FUEL TANK - LEFT
    PAD, FUEL TANK - LEFT
  • 52
    1607-455 PROTECTOR, TUNNEL
    PROTECTOR, TUNNEL
  • 53
    6606-816 PAD, FUEL TANK - CENTER
    PAD, FUEL TANK - CENTER
