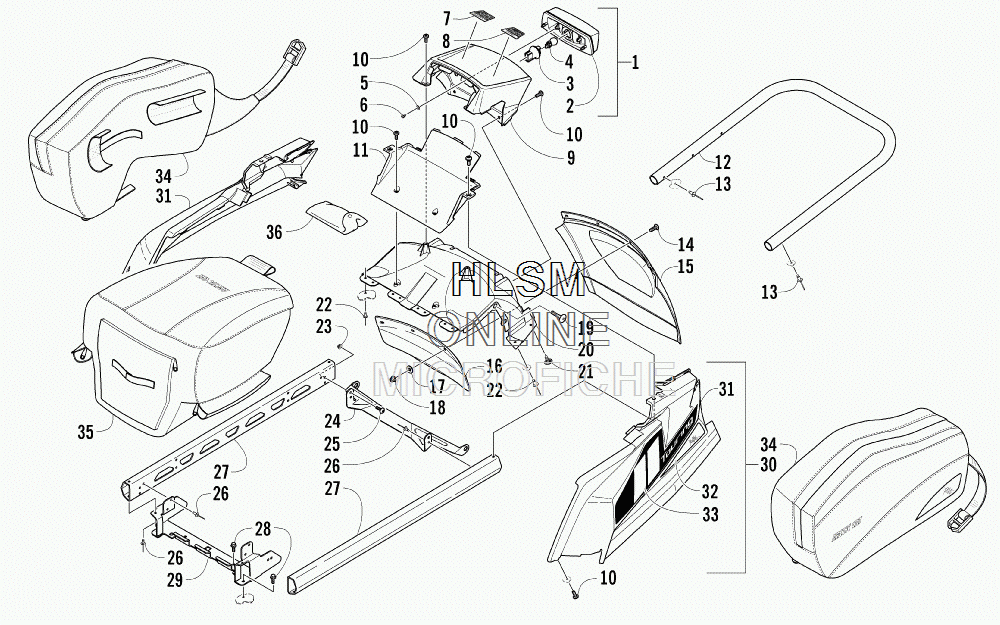

REAR BUMPER- RACK RAIL- SNOWFLAP- AND TAILLIGHT ASSEMBLY для Arctic Cat TZ1 LXR - BLACK - [S2014TZNLXUSB] - 2014 года выпуска`
-
№АртикулНазвание
-
10509-022 TAILLIGHT - ASSEMBLY (INC. 2-4)TAILLIGHT - ASSEMBLY (INC. 2-4)
-
20509-025 ...HOUSING, TAILLIGHT...HOUSING, TAILLIGHT
-
30409-057 ...SOCKET, TAILLIGHT...SOCKET, TAILLIGHT
-
40409-056 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
58050-127 WASHERWASHER
-
60623-257 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
77611-433 DECAL, WARNING - TOWING - FRENCHDECAL, WARNING - TOWING - FRENCH
-
87611-432 DECAL, WARNING - TOWING - ENGLISHDECAL, WARNING - TOWING - ENGLISH
-
95706-272 HOOD, TAILLIGHTHOOD, TAILLIGHT
-
101623-661 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
115706-273 PANEL, ACCESS - TAILLIGHTPANEL, ACCESS - TAILLIGHT
-
121707-260 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
131623-241 RIVETRIVET
-
141623-782 SCREW, MACHINESCREW, MACHINE
-
155606-254 SNOWFLAPSNOWFLAP
-
163606-776 SUPPORT, SNOWFLAPSUPPORT, SNOWFLAP
-
170623-184 WASHERWASHER
-
188427-602 NUT, LOCKNUT, LOCK
-
191623-700 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
205606-056 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
210623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
228061-506 RIVETRIVET
-
238427-502 NUT, LOCKNUT, LOCK
-
243706-989 BRACKET, MOUNTING - RACK RAIL - REARBRACKET, MOUNTING - RACK RAIL - REAR
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
268060-686 RIVETRIVET
-
274706-482 RAIL, RACKRAIL, RACK
-
288408-620 SCREW, CAPSCREW, CAP
-
294706-017 BRACKET, MOUNTING - RACK RAIL - FRONTBRACKET, MOUNTING - RACK RAIL - FRONT
-
303718-970 FENDER, REAR - RIGHT W/DECAL (INC. 31-33)FENDER, REAR - RIGHT W/DECAL (INC. 31-33)
-
303718-971 FENDER, REAR - LEFT W/DECAL (INC. 31-33)FENDER, REAR - LEFT W/DECAL (INC. 31-33)
-
313718-406 ...FENDER, REAR - RIGHT (INC. 32)...FENDER, REAR - RIGHT (INC. 32)
-
313718-407 ...FENDER, REAR - LEFT (INC. 32)...FENDER, REAR - LEFT (INC. 32)
-
328611-304 ......DECAL, REFLECTOR - RIGHT - RED......DECAL, REFLECTOR - RIGHT - RED
-
328611-305 ......DECAL, REFLECTOR - LEFT - RED......DECAL, REFLECTOR - LEFT - RED
-
330621-630 ...DECAL, REAR FENDER - RIGHT...DECAL, REAR FENDER - RIGHT
-
330621-631 ...DECAL, REAR FENDER - LEFT...DECAL, REAR FENDER - LEFT
-
345606-172 SADDLEBAG, SIDE - RIGHTSADDLEBAG, SIDE - RIGHT
-
345606-173 SADDLEBAG, SIDE - LEFTSADDLEBAG, SIDE - LEFT
-
355606-171 SADDLEBAG, REARSADDLEBAG, REAR
-
365706-054 KIT, TOOLKIT, TOOL
