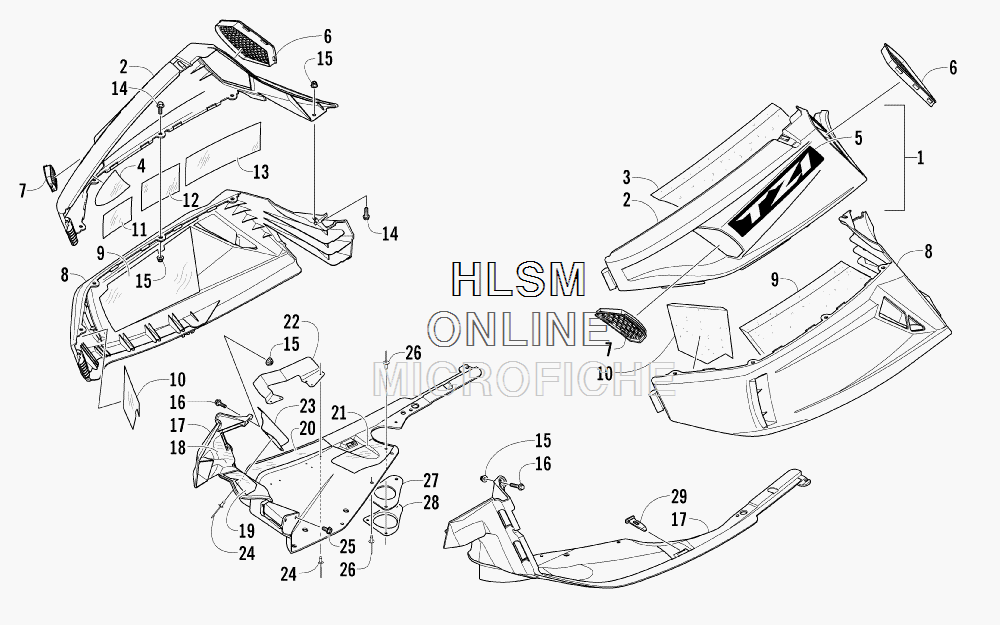

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat TZ1 - BLACK [S2014TZNTOUSB] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    4718-478 PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2 AND 4-5)
    PANEL, SIDE - UPPER - RIGHT W/DECALS - BLACK (INC. 2 AND 4-5)
  • 1
    4718-479 PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5)
    PANEL, SIDE - UPPER - LEFT W/DECALS - BLACK (INC. 2-3 AND 5)
  • 2
    2718-716 ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 4)
    ...PANEL, SIDE - UPPER - RIGHT W/O DECALS - BLACK (INC. 4)
  • 2
    2718-289 ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
    ...PANEL, SIDE - UPPER - LEFT W/O DECALS - BLACK (INC. 3)
  • 3
    0617-563 ......FOAM, UPPER SIDE PANEL - LEFT
    ......FOAM, UPPER SIDE PANEL - LEFT
  • 4
    4606-799 ......FOIL, PROTECTIVE
    ......FOIL, PROTECTIVE
  • 5
    0621-624 ...DECAL, UPPER SIDE PANEL
    ...DECAL, UPPER SIDE PANEL
  • 6
    4606-650 VENT, UPPER SIDE PANEL - REAR - RIGHT
    VENT, UPPER SIDE PANEL - REAR - RIGHT
  • 6
    4606-651 VENT, UPPER SIDE PANEL - REAR - LEFT
    VENT, UPPER SIDE PANEL - REAR - LEFT
  • 7
    4606-662 VENT, UPPER SIDE PANEL - FRONT - RIGHT
    VENT, UPPER SIDE PANEL - FRONT - RIGHT
  • 7
    4606-663 VENT, UPPER SIDE PANEL - FRONT - LEFT
    VENT, UPPER SIDE PANEL - FRONT - LEFT
  • 8
    2718-930 PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 9-10)
    PANEL, SIDE - LOWER - RIGHT W/O DECALS - BLACK (INC. 9-10)
  • 8
    2718-349 PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 9-10)
    PANEL, SIDE - LOWER - LEFT W/O DECALS - BLACK (INC. 9-10)
  • 9
    6606-212 ...FOIL, PROTECTIVE - RIGHT
    ...FOIL, PROTECTIVE - RIGHT
  • 9
    0617-567 ...FOAM, LOWER SIDE PANEL - REAR - LEFT
    ...FOAM, LOWER SIDE PANEL - REAR - LEFT
  • 10
    6606-214 ...FOIL, PROTECTIVE - RIGHT
    ...FOIL, PROTECTIVE - RIGHT
  • 10
    0617-566 ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
    ...FOAM, LOWER SIDE PANEL - FRONT - LEFT
  • 11
    6606-219 FOIL,PROTECTIVE-127X191
    FOIL,PROTECTIVE-127X191
  • 12
    6606-218 FOIL,PROTECTIVE-102X152
    FOIL,PROTECTIVE-102X152
  • 13
    6606-220 FOIL,PROTECTIVE-127X343
    FOIL,PROTECTIVE-127X343
  • 14
    8408-620 SCREW, CAP
    SCREW, CAP
  • 15
    8427-602 NUT, LOCK
    NUT, LOCK
  • 16
    8408-635 SCREW, CAP
    SCREW, CAP
  • 17
    4706-772 PLATE, SKID - RIGHT
    PLATE, SKID - RIGHT
  • 17
    4706-073 PLATE, SKID - LEFT
    PLATE, SKID - LEFT
  • 18
    4606-982 FOIL, SKID PLATE HINGE
    FOIL, SKID PLATE HINGE
  • 19
    4606-796 FOIL, PROTECTIVE - UPPER - FRONT - RIGHT
    FOIL, PROTECTIVE - UPPER - FRONT - RIGHT
  • 20
    4606-798 FOIL, PROTECTIVE - OUTER - RIGHT
    FOIL, PROTECTIVE - OUTER - RIGHT
  • 21
    4606-797 FOIL, PROTECTIVE - CENTER - RIGHT
    FOIL, PROTECTIVE - CENTER - RIGHT
  • 22
    6606-227 SHIELD, HEAT - RIGHT
    SHIELD, HEAT - RIGHT
  • 23
    6606-423 SHIELD, HEAT - HINGE
    SHIELD, HEAT - HINGE
  • 24
    8061-506 RIVET
    RIVET
  • 25
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    8061-708 RIVET
    RIVET
  • 27
    2612-469 SEAL, EXHAUST - OUTLET
    SEAL, EXHAUST - OUTLET
  • 28
    1712-594 SHIELD, HEAT - EXHAUST OUTLET
    SHIELD, HEAT - EXHAUST OUTLET
  • 29
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
