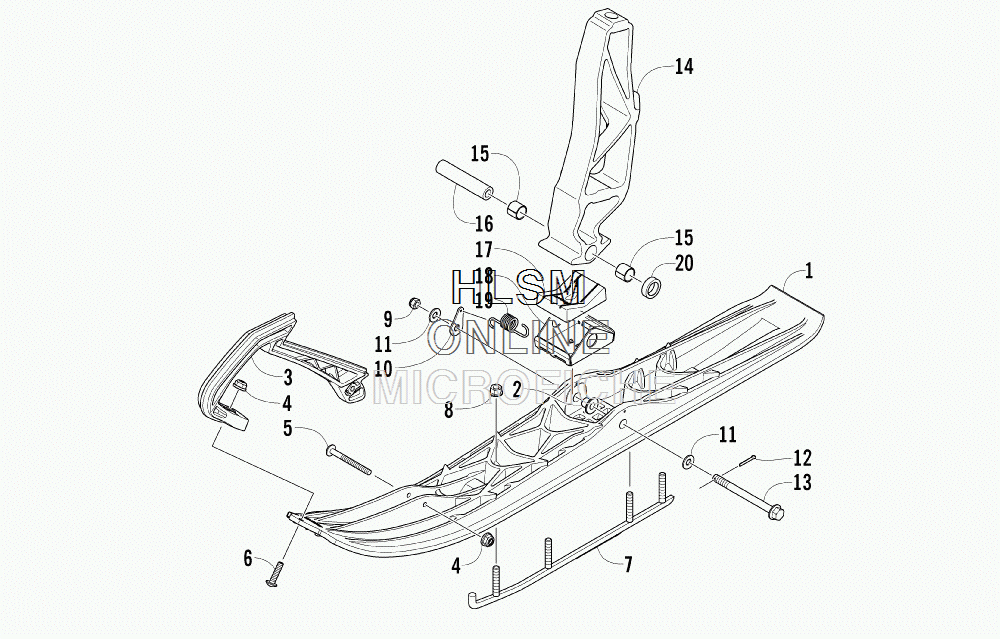

SKI AND SPINDLE ASSEMBLY для Arctic Cat Sno Pro 500 - GREEN [S2014ACCPRUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    2603-599 SKI, PLASTIC - BLACK
    SKI, PLASTIC - BLACK
  • 2
    2603-746 INSERT
    INSERT
  • 3
    2603-950 HANDLE, PLASTIC - BLACK
    HANDLE, PLASTIC - BLACK
  • 4
    8427-602 NUT, LOCK
    NUT, LOCK
  • 5
    8476-650 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    0703-871 SKAG, 4" CARBIDE-PTD BLK
    SKAG, 4" CARBIDE-PTD BLK
  • 8
    8047-486 NUT, LOCK
    NUT, LOCK
  • 9
    0423-744 NUT, LOCK
    NUT, LOCK
  • 10
    6606-205 WASHER, SLIDE SPRING
    WASHER, SLIDE SPRING
  • 11
    1623-801 WASHER
    WASHER
  • 12
    0123-458 PIN, COTTER
    PIN, COTTER
  • 13
    1623-781 SCREW, CAP
    SCREW, CAP
  • 14
    2703-560 SPINDLE, STEERING - RIGHT - GREEN (INC. 15)
    SPINDLE, STEERING - RIGHT - GREEN (INC. 15)
  • 14
    2703-561 SPINDLE, STEERING - LEFT - GREEN (INC. 15)
    SPINDLE, STEERING - LEFT - GREEN (INC. 15)
  • 15
    2603-481 ...BEARING
    ...BEARING
  • 16
    2603-813 AXLE, SPINDLE
    AXLE, SPINDLE
  • 17
    2603-824 DAMPER, SKI
    DAMPER, SKI
  • 18
    2603-894 PLATE, SKI DAMPER
    PLATE, SKI DAMPER
  • 19
    3606-549 SPRING, SLIDE
    SPRING, SLIDE
  • 20
    2603-932 SPACER
    SPACER
