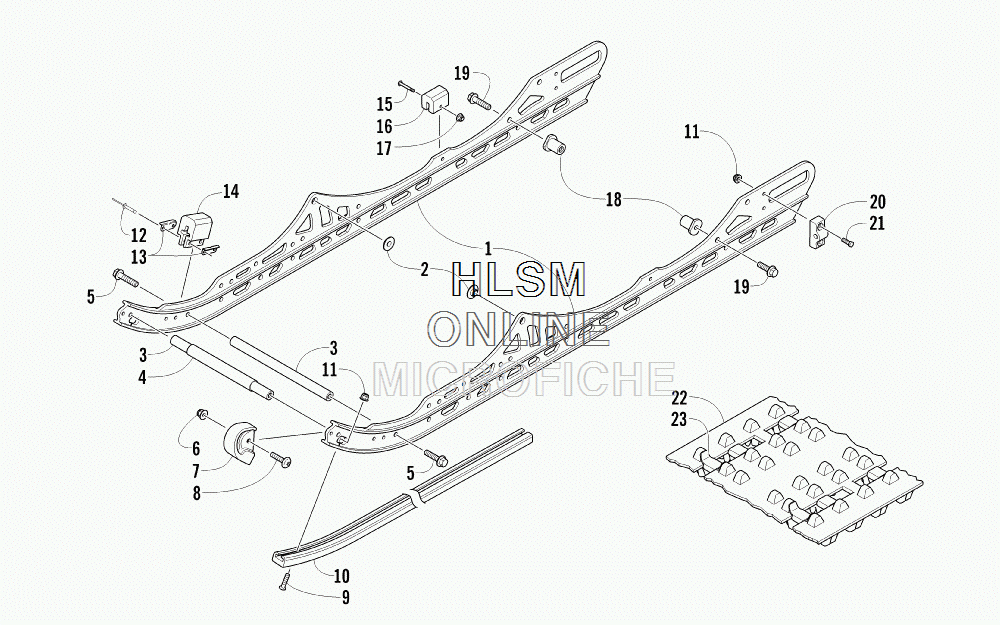

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat F570 [S2014F5DFCUSG] - 2014 года выпуска

  • №
    Артикул
    Название
  • -
    2704-085 COMPLETE SKID FRAME ASSEMBLY
    COMPLETE SKID FRAME ASSEMBLY
  • 1
    3604-572 RAIL, FORMED
    RAIL, FORMED
  • 2
    3604-266 INSERT, RAIL
    INSERT, RAIL
  • 3
    3604-268 AXLE, INNER
    AXLE, INNER
  • 4
    2604-281 SPACER
    SPACER
  • 5
    8408-826 SCREW, CAP
    SCREW, CAP
  • 6
    8427-602 NUT, LOCK
    NUT, LOCK
  • 7
    3604-003 END CAP, SLIDE RAIL
    END CAP, SLIDE RAIL
  • 8
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    0123-859 SCREW, MACHINE
    SCREW, MACHINE
  • 10
    3604-186 WEARSTRIP, SLIDE RAIL
    WEARSTRIP, SLIDE RAIL
  • 11
    8047-366 NUT, LOCK
    NUT, LOCK
  • 12
    8060-633 RIVET, BLIND-DH AA614 BLK
    RIVET, BLIND-DH AA614 BLK
  • 13
    0604-967 BRACKET, RETAINING
    BRACKET, RETAINING
  • 14
    0604-918 PAD, SHOCK
    PAD, SHOCK
  • 15
    8470-540 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    1604-429 PAD, SHOCK
    PAD, SHOCK
  • 17
    8427-502 NUT, LOCK
    NUT, LOCK
  • 18
    3604-979 BUSHING, STOP - REAR ARM
    BUSHING, STOP - REAR ARM
  • 19
    8408-031 SCREW, CAP
    SCREW, CAP
  • 20
    0704-352 ADJUSTER, TRACK
    ADJUSTER, TRACK
  • 21
    8002-042 SCREW, CAP
    SCREW, CAP
  • 22
    2602-096 TRACK,15X128X 1" CHALLENGER LP (INC. 23)
    TRACK,15X128X 1" CHALLENGER LP (INC. 23)
  • 23
    2602-384 ...CLIP, GUIDE
    ...CLIP, GUIDE
