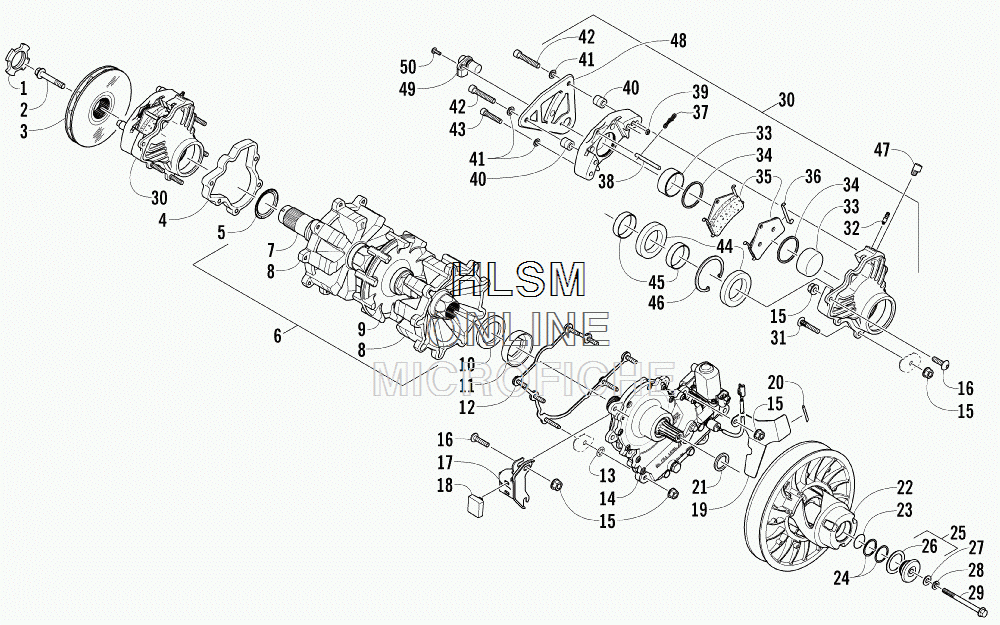

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat Bearcat Z1 XT LTD [S2014BCNWLUSB] - 2014 года выпуска`
-
№АртикулНазвание
-
11602-957 NUT, RETAININGNUT, RETAINING
-
21623-461 SCREW, CAPSCREW, CAP
-
31602-656 DISC, BRAKEDISC, BRAKE
-
41602-497 SPACER, BRAKE CALIPERSPACER, BRAKE CALIPER
-
52602-076 SHIELD, BEARINGSHIELD, BEARING
-
60728-215 TRACK, DRIVE - ASSEMBLY (INC. 7-9)TRACK, DRIVE - ASSEMBLY (INC. 7-9)
-
70702-991 ...SHAFT, DRIVE-W/RETAINER-ASSY...SHAFT, DRIVE-W/RETAINER-ASSY
-
82602-771 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
91602-783 ...SPROCKET, IDLER-10T-45MM HEX...SPROCKET, IDLER-10T-45MM HEX
-
102602-068 SPACERSPACER
-
111602-984 SEALSEAL
-
121702-060 PLATE, MOUNTING - REVERSEPLATE, MOUNTING - REVERSE
-
131623-355 NUT, PUSHNUT, PUSH
-
141702-283 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
158427-802 NUT, LOCKNUT, LOCK
-
168476-830 SCREW, MACHINESCREW, MACHINE
-
170708-487 BRACKET, RUBBER SNUBBERBRACKET, RUBBER SNUBBER
-
180608-486 SNUBBER, RUBBERSNUBBER, RUBBER
-
194606-939 SHIELD, ACTUATORSHIELD, ACTUATOR
-
200706-371 TRIM - 3 FTTRIM - 3 FT
-
210648-442 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
210648-443 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
220726-301 CLUTCH, DRIVEN - ASSEMBLYCLUTCH, DRIVEN - ASSEMBLY
-
230648-441 O-RINGO-RING
-
240648-715 WASHER, SHIM (.030 IN.)WASHER, SHIM (.030 IN.)
-
240648-716 WASHER, SHIM (.060 IN.)WASHER, SHIM (.060 IN.)
-
240648-714 WASHER, SHIM (.090 IN.)WASHER, SHIM (.090 IN.)
-
251702-114 ADJUSTER, SHEAVE (INC. 26)ADJUSTER, SHEAVE (INC. 26)
-
260648-788 ...WASHER, THRUST...WASHER, THRUST
-
271623-415 WASHERWASHER
-
288051-272 WASHER, LOCKWASHER, LOCK
-
291623-572 SCREW, CAPSCREW, CAP
-
301702-176 CALIPER, BRAKE - ASSEMBLY (INC. 31-46)CALIPER, BRAKE - ASSEMBLY (INC. 31-46)
-
311623-757 ...BOLT, CARRIAGE - RIBBED...BOLT, CARRIAGE - RIBBED
-
321602-458 ...FITTING, BLEED...FITTING, BLEED
-
331602-461 ...PISTON...PISTON
-
341602-669 ...O-RING...O-RING
-
350702-563 ...PAD, BRAKE - SET (INC. 36-37)...PAD, BRAKE - SET (INC. 36-37)
-
361602-466 ......CLIP, ANTI-RATTLE......CLIP, ANTI-RATTLE
-
371602-467 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
381602-464 ...PIN, RETAINING - BRAKE PAD...PIN, RETAINING - BRAKE PAD
-
390602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
402602-132 ...SPACER...SPACER
-
410402-165 ...WASHER...WASHER
-
421602-670 ...SCREW, CAP...SCREW, CAP
-
431602-671 ...SCREW, CAP...SCREW, CAP
-
442602-131 ...BEARING, 45MM X 68MM X 12MM...BEARING, 45MM X 68MM X 12MM
-
451602-463 ...SLEEVE, DRIVESHAFT...SLEEVE, DRIVESHAFT
-
461602-456 ...RING, RETAINING...RING, RETAINING
-
471602-978 FITTING, INLETFITTING, INLET
-
480630-287 PLATE, MOUNTING - SPEEDOMETER SENSORPLATE, MOUNTING - SPEEDOMETER SENSOR
-
490430-091 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
508468-617 SCREW, MACHINESCREW, MACHINE
