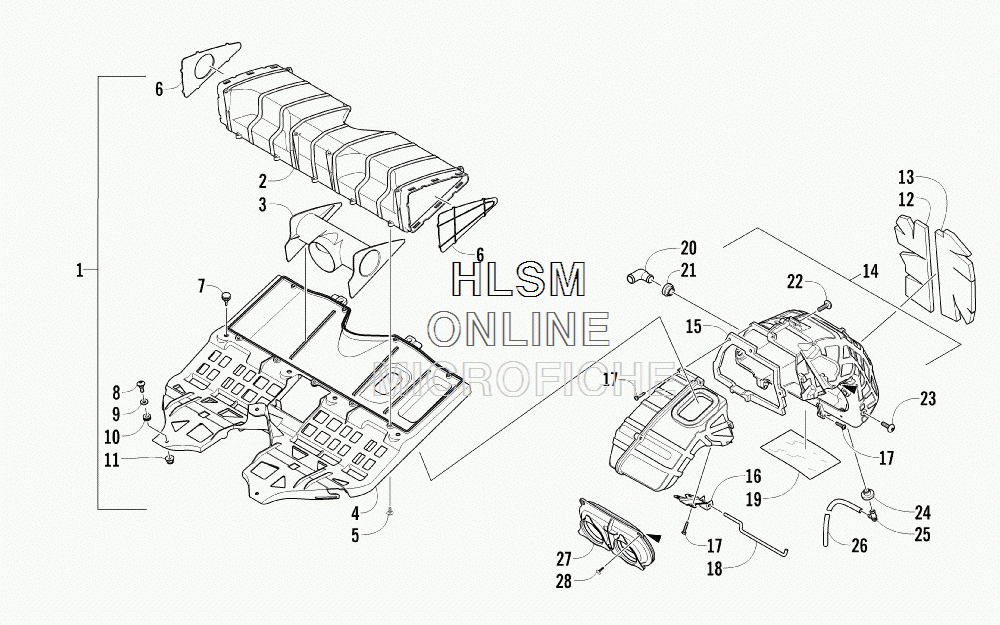

AIR SILENCER ASSEMBLY для Arctic Cat Bearcat Z1 XT GS - ORANGE [S2014BCNWGUSO] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-805 INTAKE, SUPPORT - ASSEMBLY (INC. 2-5)
    INTAKE, SUPPORT - ASSEMBLY (INC. 2-5)
  • 2
    1670-732 ...INTAKE, SUPPORT - TOP
    ...INTAKE, SUPPORT - TOP
  • 3
    1670-828 ...RESONATOR, TOP - PLENUM
    ...RESONATOR, TOP - PLENUM
  • 4
    1670-980 ...INTAKE, SUPPORT - BOTTOM
    ...INTAKE, SUPPORT - BOTTOM
  • 5
    0623-784 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 6
    1670-830 COVER, TOP PLENUM - RIGHT
    COVER, TOP PLENUM - RIGHT
  • 6
    1670-831 COVER, TOP PLENUM - LEFT
    COVER, TOP PLENUM - LEFT
  • 7
    4606-276 GROMMET
    GROMMET
  • 8
    0423-356 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    8050-212 WASHER
    WASHER
  • 10
    4606-275 GROMMET
    GROMMET
  • 11
    8427-602 NUT, LOCK
    NUT, LOCK
  • 12
    0617-542 FOAM, AIR SILENCER - RIGHT
    FOAM, AIR SILENCER - RIGHT
  • 13
    0617-543 FOAM, AIR SILENCER - LEFT
    FOAM, AIR SILENCER - LEFT
  • 14
    0770-951 SILENCER, AIR - ASSEMBLY (INC. 15-18)
    SILENCER, AIR - ASSEMBLY (INC. 15-18)
  • 15
    2670-209 ...SEAL
    ...SEAL
  • 16
    2670-208 ...BRACKET, LATCH
    ...BRACKET, LATCH
  • 17
    1623-934 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 18
    1623-910 ...PIN, RETAINING
    ...PIN, RETAINING
  • 19
    0619-206 FOIL, PROTECTIVE - 30 FT
    FOIL, PROTECTIVE - 30 FT
  • 20
    1670-784 FITTING, ELBOW
    FITTING, ELBOW
  • 21
    1670-785 GROMMET
    GROMMET
  • 22
    1623-609 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    0423-029 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    1670-325 GROMMET
    GROMMET
  • 25
    1670-324 FITTING, ELBOW
    FITTING, ELBOW
  • 26
    0610-692 HOSE - GREEN - 25 FT
    HOSE - GREEN - 25 FT
  • 26
    0610-693 HOSE - GREEN - 100 FT
    HOSE - GREEN - 100 FT
  • 27
    2670-024 BOOT, DUAL INTAKE
    BOOT, DUAL INTAKE
  • 28
    0623-165 CLIP, X-MAS TREE-5/32
    CLIP, X-MAS TREE-5/32
