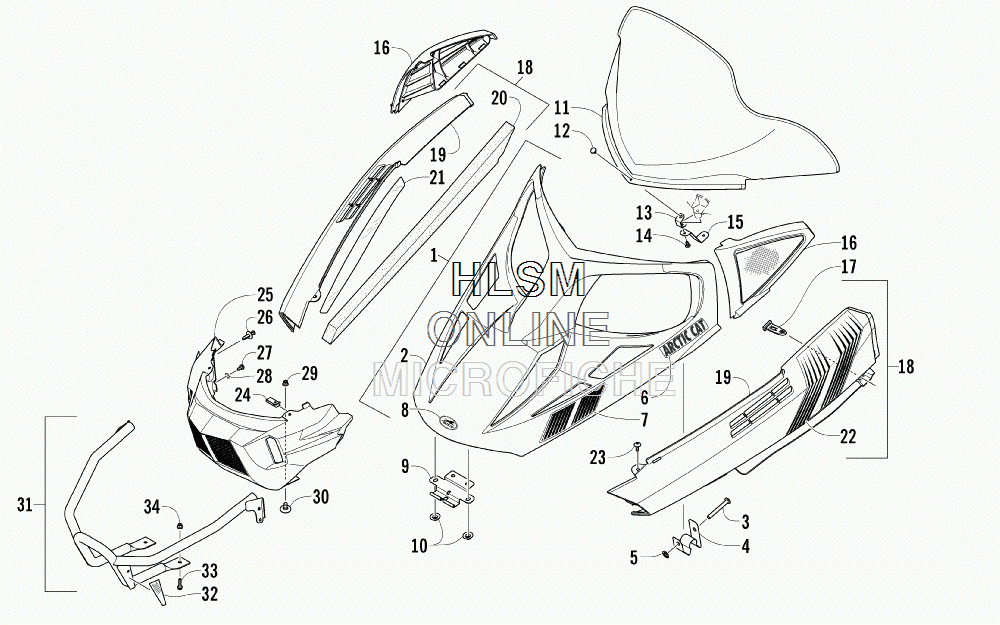

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat Bearcat 570 XT - BLUE [S2014BCDWTUSL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-276 HOOD W/DECALS - WHITE (INC. 2-8)
    HOOD W/DECALS - WHITE (INC. 2-8)
  • 2
    7800-956 ...HOOD W/O DECALS - WHITE (INC. 3-5)
    ...HOOD W/O DECALS - WHITE (INC. 3-5)
  • 3
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 4
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 4
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 5
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 6
    0621-572 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 7
    0621-562 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 7
    0621-563 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 8
    9611-751 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 9
    6606-027 BRACKET, HINGE
    BRACKET, HINGE
  • 10
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 11
    5606-962 WINDSHIELD
    WINDSHIELD
  • 12
    1623-677 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 13
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 14
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    5606-277 BRACKET, WINDSHIELD
    BRACKET, WINDSHIELD
  • 16
    5606-940 BEZEL, INTAKE - RIGHT - WHITE
    BEZEL, INTAKE - RIGHT - WHITE
  • 16
    5606-941 BEZEL, INTAKE - LEFT - WHITE
    BEZEL, INTAKE - LEFT - WHITE
  • 17
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 18
    3718-888 SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 19-22)
    SPAR, FRONT W/DECALS - RIGHT - BLUE (INC. 19-22)
  • 18
    3718-889 SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 19-20 AND 22)
    SPAR, FRONT W/DECALS - LEFT - BLUE (INC. 19-20 AND 22)
  • 19
    3718-886 ...SPAR, FRONT W/O DECALS - RIGHT - BLUE (INC. 20)
    ...SPAR, FRONT W/O DECALS - RIGHT - BLUE (INC. 20)
  • 19
    3718-887 ...SPAR, FRONT W/O DECALS - LEFT - BLUE (INC. 20)
    ...SPAR, FRONT W/O DECALS - LEFT - BLUE (INC. 20)
  • 20
    0617-656 ......FOAM, FRONT SPAR - RIGHT
    ......FOAM, FRONT SPAR - RIGHT
  • 20
    0617-657 ......FOAM, FRONT SPAR - LEFT
    ......FOAM, FRONT SPAR - LEFT
  • 21
    4606-934 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 22
    0621-574 ...DECAL, FRONT SPAR - RIGHT - BLUE
    ...DECAL, FRONT SPAR - RIGHT - BLUE
  • 22
    0621-575 ...DECAL, FRONT SPAR - LEFT - BLUE
    ...DECAL, FRONT SPAR - LEFT - BLUE
  • 23
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 25
    5606-723 FASCIA, FRONT - WHITE
    FASCIA, FRONT - WHITE
  • 26
    0623-362 RIVET, PLASTIC-REINSTALLABLE
    RIVET, PLASTIC-REINSTALLABLE
  • 27
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 29
    8427-602 NUT, LOCK
    NUT, LOCK
  • 30
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 31
    4706-961 BUMPER, FRONT (INC. 32)
    BUMPER, FRONT (INC. 32)
  • 32
    9611-386 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 32
    9611-387 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 33
    8408-025 SCREW, CAP
    SCREW, CAP
  • 34
    8427-002 NUT, LOCK
    NUT, LOCK
