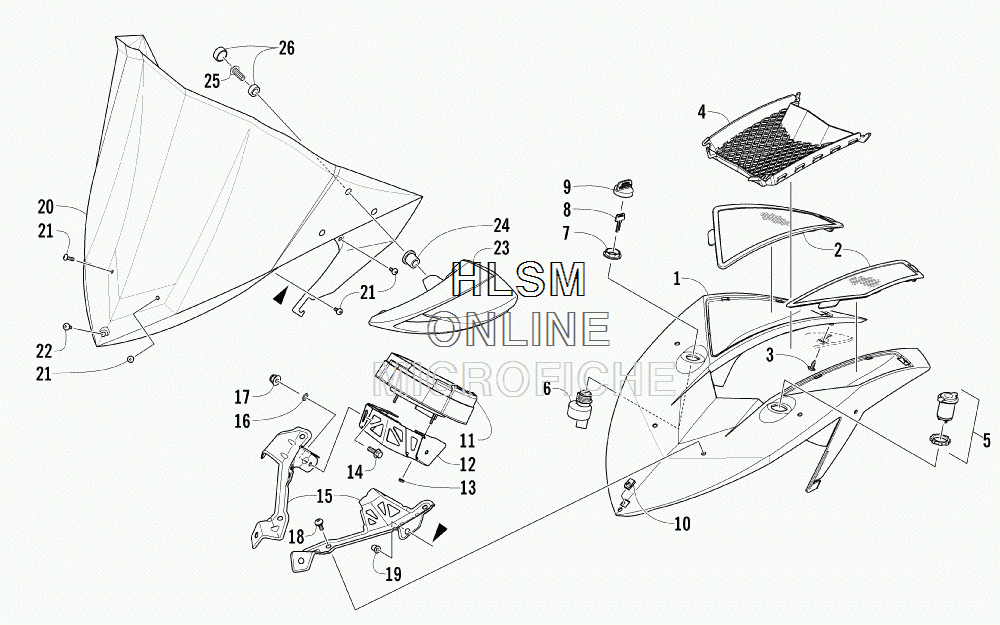

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 800 Cross-Tour (BLACK) [S2013XFHXPUSB] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-534 POD, INSTRUMENT - BLACK
    POD, INSTRUMENT - BLACK
  • 2
    0608-640 VENT, INTAKE - RIGHT
    VENT, INTAKE - RIGHT
  • 2
    0608-641 VENT, INTAKE - LEFT
    VENT, INTAKE - LEFT
  • 3
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    6606-556 VENT, POD
    VENT, POD
  • 5
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 6
    0609-910 SWITCH, IGNITION (INC. 7-9)
    SWITCH, IGNITION (INC. 7-9)
  • 7
    0430-050 ...NUT, RETAINING
    ...NUT, RETAINING
  • 8
    0430-042 ...KEY, IGNITION Y SERIES - LEFT-SIDE CUT
    ...KEY, IGNITION Y SERIES - LEFT-SIDE CUT
  • 8
    0430-043 ...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT
    ...KEY, IGNITION Z SERIES - RIGHT-SIDE CUT
  • 9
    0430-054 ...COVER, KEY
    ...COVER, KEY
  • 10
    1623-637 CLIP, U-NUT
    CLIP, U-NUT
  • 11
    0620-391 GAUGE, SPEEDOMETER
    GAUGE, SPEEDOMETER
  • 12
    5706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
    BRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
  • 13
    0423-493 NUT W/WASHER
    NUT W/WASHER
  • 14
    8410-616 SCREW, CAP
    SCREW, CAP
  • 15
    5706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
    BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
  • 15
    5706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
    BRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
  • 16
    8053-212 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 17
    8427-602 NUT, LOCK
    NUT, LOCK
  • 18
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 19
    1623-764 NUT, EXPANSION
    NUT, EXPANSION
  • 20
    6606-514 WINDSHIELD - MID
    WINDSHIELD - MID
  • 21
    8477-516 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    8477-510 SCREW, MACHINE
    SCREW, MACHINE
  • 23
    4639-734 MIRROR KIT (INC. 24-26)
    MIRROR KIT (INC. 24-26)
  • 24
    0623-845 ...NUT, EXPANSION
    ...NUT, EXPANSION
  • 25
    0623-902 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 26
    0124-054 ...SNAP CAP W/WASHER
    ...SNAP CAP W/WASHER
