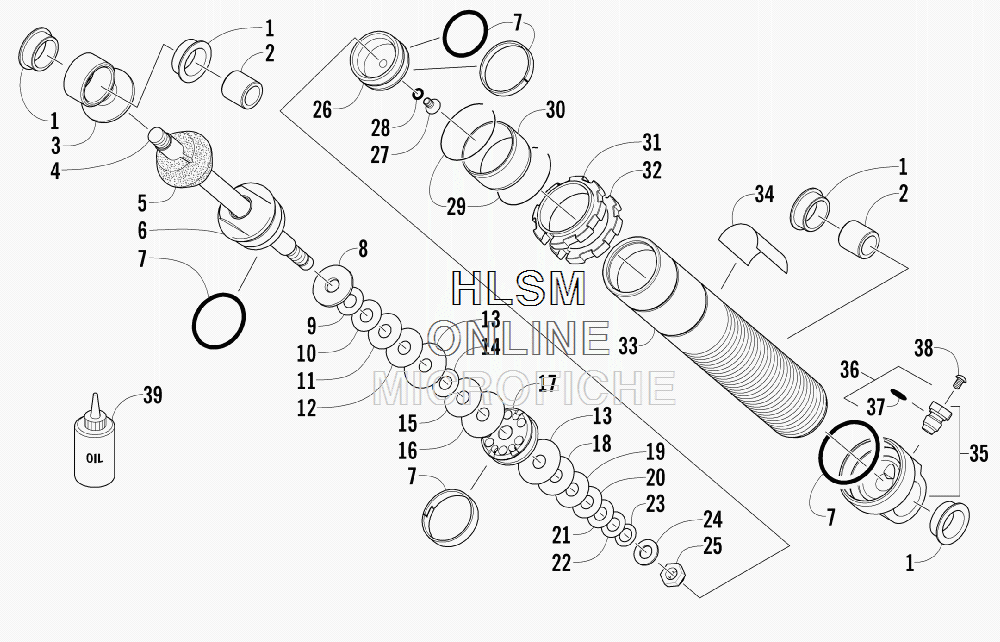

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat XF 1100 Turbo LXR - GREEN [2013XFNTSUSG] - 2013 года выпуска`
-
№АртикулНазвание
-
-2704-173 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
30603-910 EYELET, SHOCKEYELET, SHOCK
-
42603-840 ROD, SHOCKROD, SHOCK
-
52603-459 BUMPER, SHOCKBUMPER, SHOCK
-
62604-812 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
72604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
80603-540 WASHER, TOP OUTWASHER, TOP OUT
-
90603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
100603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
110603-340 VALVE, 1.000 X 0.008 IN.VALVE, 1.000 X 0.008 IN.
-
120603-342 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
130603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
140603-334 VALVE, 0.800 X 0.008 IN.VALVE, 0.800 X 0.008 IN.
-
150603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
160603-349 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
172603-810 PISTON, 0.070 IN. - ORIFICEPISTON, 0.070 IN. - ORIFICE
-
180603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
190603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
200603-880 VALVE, 0.900 X 0.012 IN.VALVE, 0.900 X 0.012 IN.
-
210603-879 VALVE, 0.800 X 0.012 IN.VALVE, 0.800 X 0.012 IN.
-
220603-878 VALVE, 0.700 X 0.012 IN.VALVE, 0.700 X 0.012 IN.
-
232603-902 VALVE, 0.550 X 0.020 IN.VALVE, 0.550 X 0.020 IN.
-
240603-389 WASHER, BACKUPWASHER, BACKUP
-
250603-301 NUTNUT
-
262604-816 PISTON, FLOATINGPISTON, FLOATING
-
271604-316 SCREW, MACHINE W/O-RING (INC. 28)SCREW, MACHINE W/O-RING (INC. 28)
-
281604-425 ...O-RING...O-RING
-
292603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
302603-246 SLEEVE, WEARSLEEVE, WEAR
-
312604-840 NUT, ADJUSTERNUT, ADJUSTER
-
322604-841 COLLAR, LOCKING - ADJUSTER NUTCOLLAR, LOCKING - ADJUSTER NUT
-
333604-595 BODY, SHOCKBODY, SHOCK
-
342604-897 DECAL, SHOCKDECAL, SHOCK
-
352604-817 END CAP, SHOCK - ASSEMBLY (INC. 36-37)END CAP, SHOCK - ASSEMBLY (INC. 36-37)
-
360703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 37)...VALVE, PRESSURE - ASSEMBLY (INC. 37)
-
371604-318 ......O-RING......O-RING
-
380624-097 SCREW, VALVESCREW, VALVE
-
395639-240 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
