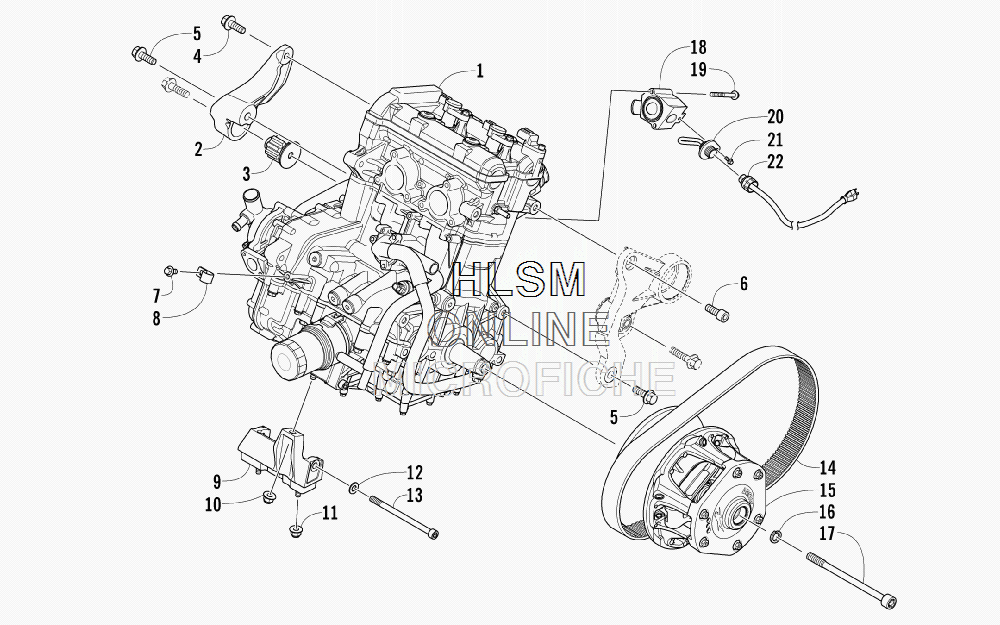

ENGINE AND RELATED PARTS для Arctic Cat XF 1100 LXR - BLACK [S2013XFNLXUSB] - 2013 года выпуска`
-
№АртикулНазвание
-
10762-606 ENGINE, AA11L5ENGINE, AA11L5
-
20708-574 BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)
-
30608-654 ...MOUNT, ENGINE...MOUNT, ENGINE
-
48413-036 SCREW, CAPSCREW, CAP
-
58413-241 SCREW, CAPSCREW, CAP
-
61623-985 SCREW, CAPSCREW, CAP
-
78408-816 SCREW, CAPSCREW, CAP
-
81623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
90608-619 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
108427-002 NUT, LOCKNUT, LOCK
-
118427-802 NUT, LOCKNUT, LOCK
-
128450-157 WASHERWASHER
-
131623-925 SCREW, CAPSCREW, CAP
-
140627-081 BELT, DRIVEBELT, DRIVE
-
150746-441 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
161623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
171623-620 BOLT, CLUTCHBOLT, CLUTCH
-
180609-928 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
198408-650 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
200609-927 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
218408-617 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
220709-082 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
