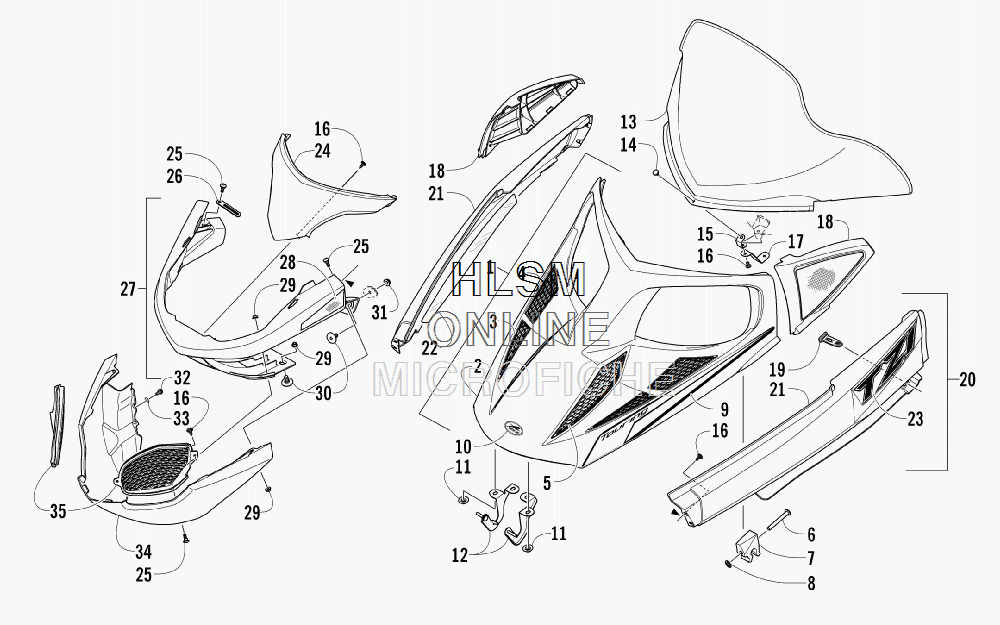

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat TZ1 [S2013TZNTOUSB] - 2013 года выпуска`
-
№АртикулНазвание
-
13718-773 HOOD W/DECALS - BLACK (INC. 2-10)HOOD W/DECALS - BLACK (INC. 2-10)
-
27901-183 ...HOOD W/O DECALS - BLACK (INC. 3-8)...HOOD W/O DECALS - BLACK (INC. 3-8)
-
34606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
-
34606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK......VENT, HOOD - OUTER FRONT - LEFT - BLACK
-
44606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK......VENT, HOOD - OUTER REAR - RIGHT - BLACK
-
44606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK......VENT, HOOD - OUTER REAR - LEFT - BLACK
-
54606-614 ......VENT, HOOD - INNER - RIGHT - BLACK......VENT, HOOD - INNER - RIGHT - BLACK
-
54606-615 ......VENT, HOOD - INNER - LEFT - BLACK......VENT, HOOD - INNER - LEFT - BLACK
-
61623-610 ......PIN, RETAINING......PIN, RETAINING
-
75706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
75706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
81623-409 ......NUT, PUSH......NUT, PUSH
-
99611-940 ...DECAL, HOOD - RIGHT...DECAL, HOOD - RIGHT
-
99611-941 ...DECAL, HOOD - LEFT...DECAL, HOOD - LEFT
-
109611-751 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
111623-469 NUT, STAMPEDNUT, STAMPED
-
123706-348 BRACKET, HINGE - RIGHTBRACKET, HINGE - RIGHT
-
123706-347 BRACKET, HINGE - LEFTBRACKET, HINGE - LEFT
-
135606-962 WINDSHIELDWINDSHIELD
-
141623-677 RIVET, PLASTICRIVET, PLASTIC
-
154606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
161623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
175606-277 BRACKET, WINDSHIELDBRACKET, WINDSHIELD
-
185606-924 BEZEL, INTAKE - RIGHT - BLACKBEZEL, INTAKE - RIGHT - BLACK
-
185606-925 BEZEL, INTAKE - LEFT - BLACKBEZEL, INTAKE - LEFT - BLACK
-
194606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
203718-774 SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 21-23)SPAR, FRONT W/DECALS - RIGHT - BLACK (INC. 21-23)
-
203718-775 SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 21 AND 23)SPAR, FRONT W/DECALS - LEFT - BLACK (INC. 21 AND 23)
-
214606-884 ...SPAR, FRONT W/O DECALS - RIGHT - BLACK...SPAR, FRONT W/O DECALS - RIGHT - BLACK
-
214606-885 ...SPAR, FRONT W/O DECALS - LEFT - BLACK...SPAR, FRONT W/O DECALS - LEFT - BLACK
-
224606-934 ...FOIL, SPAR - RIGHT...FOIL, SPAR - RIGHT
-
239611-943 ...DECAL, FRONT SPAR...DECAL, FRONT SPAR
-
244606-518 FASCIA, BUMPER - UPPER - BLACKFASCIA, BUMPER - UPPER - BLACK
-
250423-355 SCREW, SHOULDERSCREW, SHOULDER
-
261623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
272718-925 BUMPER, FRONT - WHITE (INC. 28)BUMPER, FRONT - WHITE (INC. 28)
-
289611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
289611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
298427-602 NUT, LOCKNUT, LOCK
-
301623-775 SCREW, SHOULDERSCREW, SHOULDER
-
318424-602 NUTNUT
-
320623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
338053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
345606-462 FASCIA, BUMPER - LOWER - BLACKFASCIA, BUMPER - LOWER - BLACK
-
354606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
354606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
