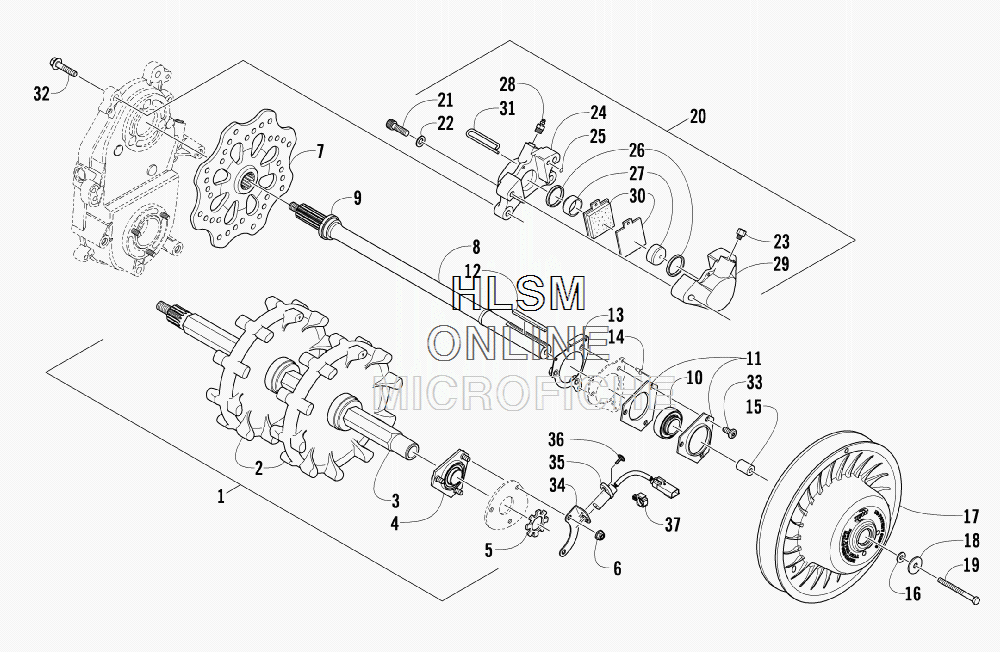

DRIVE TRAIN SHAFT AND BRAKE ASSEMBLIES для Arctic Cat Sno Pro 500 [S2013ACCPRUSG] - 2013 года выпуска`
-
№АртикулНазвание
-
10728-196 TRACK DRIVE - ASSEMBLY (INC. 2-5)TRACK DRIVE - ASSEMBLY (INC. 2-5)
-
21602-247 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
32602-273 ...DRIVESHAFT...DRIVESHAFT
-
41702-194 ...FLANGE, BEARING - INNER - ASSEMBLY...FLANGE, BEARING - INNER - ASSEMBLY
-
52602-185 ...WASHER, SPEEDOMETER SENSOR...WASHER, SPEEDOMETER SENSOR
-
68047-426 NUT, LOCKNUT, LOCK
-
72602-279 DISC, BRAKEDISC, BRAKE
-
81702-195 SHAFT, DRIVEN (INC. 9-10)SHAFT, DRIVEN (INC. 9-10)
-
91702-210 ...COLLAR, HUB - BRAKE DISC...COLLAR, HUB - BRAKE DISC
-
102602-390 ...BEARING, 1 IN. W/O LOCK COLLAR...BEARING, 1 IN. W/O LOCK COLLAR
-
110602-932 PLATE, FLANGEPLATE, FLANGE
-
120101-076 KEYKEY
-
135606-989 PLATE, NUT - DRIVEN SHAFTPLATE, NUT - DRIVEN SHAFT
-
148060-682 RIVETRIVET
-
150648-785 SHAFT, STUBSHAFT, STUB
-
160123-053 WASHERWASHER
-
170726-297 CLUTCH, DRIVENCLUTCH, DRIVEN
-
180123-019 WASHERWASHER
-
198002-138 SCREW, CAPSCREW, CAP
-
201602-639 CALIPER, BRAKE - ASSEMBLY (INC. 21-31)CALIPER, BRAKE - ASSEMBLY (INC. 21-31)
-
218005-679 ...SCREW, CAP...SCREW, CAP
-
228050-272 ...WASHER...WASHER
-
230602-590 ...FITTING, ADAPTER...FITTING, ADAPTER
-
250602-729 ...O-RING, HOUSING...O-RING, HOUSING
-
260602-583 ...O-RING...O-RING
-
270602-708 ...PISTON...PISTON
-
280602-707 ...SCREW, BLEED - ASSEMBLY...SCREW, BLEED - ASSEMBLY
-
300702-229 ...PAD, BRAKE - SET (INC. 31)...PAD, BRAKE - SET (INC. 31)
-
310602-706 ......PIN, RETAINING......PIN, RETAINING
-
321623-558 SCREW, CAPSCREW, CAP
-
331623-766 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
342602-186 BRACKET, SPEEDOMETER SENSORBRACKET, SPEEDOMETER SENSOR
-
350630-207 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
360623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
371623-406 CLIP, ROUTINGCLIP, ROUTING
