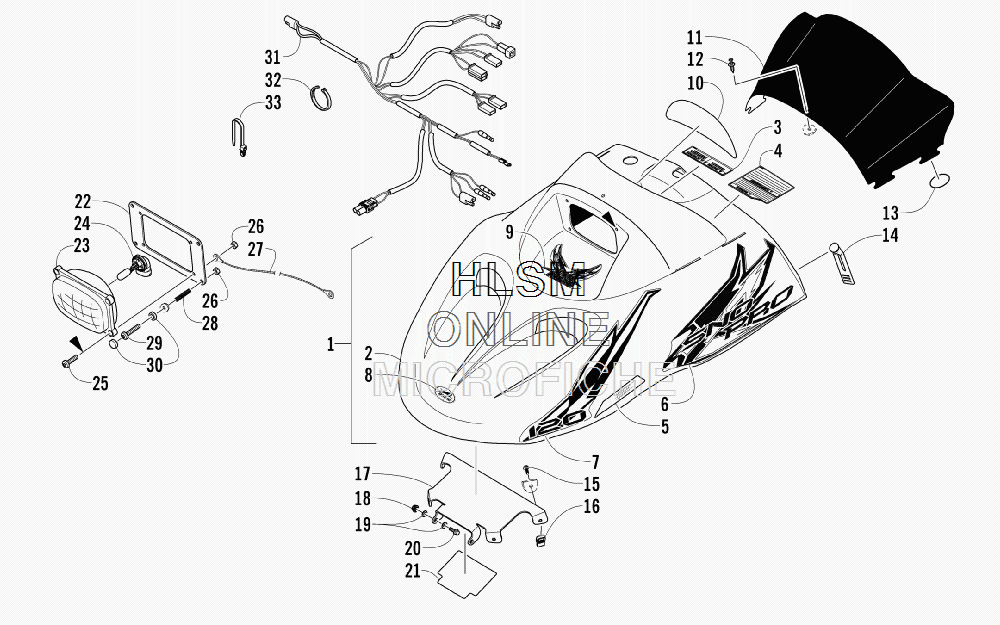

HOOD- HEADLIGHT- AND WINDSHIELD ASSEMBLY для Arctic Cat Sno Pro 120 [S2013ACAAAUSG] - 2013 года выпуска`
-
№АртикулНазвание
-
13718-506 HOOD W/DECALS - GREEN (INC. 2-10)HOOD W/DECALS - GREEN (INC. 2-10)
-
23718-654 ...HOOD W/O DECALS - GREEN (INC. 3-5)...HOOD W/O DECALS - GREEN (INC. 3-5)
-
33611-755 ......DECAL, CAUTION - THROTTLE......DECAL, CAUTION - THROTTLE
-
43611-678 ......DECAL, CAUTION - HOOD......DECAL, CAUTION - HOOD
-
59611-382 ......DECAL, REFLECTOR - RIGHT - AMBER......DECAL, REFLECTOR - RIGHT - AMBER
-
59611-383 ......DECAL, REFLECTOR - LEFT - AMBER......DECAL, REFLECTOR - LEFT - AMBER
-
60621-134 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
60621-135 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
70621-132 ...DECAL, HOOD - FORWARD - RIGHT...DECAL, HOOD - FORWARD - RIGHT
-
70621-133 ...DECAL, HOOD - FORWARD - LEFT...DECAL, HOOD - FORWARD - LEFT
-
89611-752 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
90621-136 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
100621-137 ...DECAL, HOOD/CONSOLE...DECAL, HOOD/CONSOLE
-
114606-411 WINDSHIELDWINDSHIELD
-
120623-243 CLIP, RETAININGCLIP, RETAINING
-
130616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
141606-930 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
150623-902 SCREW, MACHINESCREW, MACHINE
-
161623-023 CLIP, U-NUTCLIP, U-NUT
-
172706-140 BRACKET, MOUNTING - HOOD - UPPERBRACKET, MOUNTING - HOOD - UPPER
-
181623-868 NUT, LOCKNUT, LOCK
-
191623-011 WASHERWASHER
-
208020-039 SCREW, CAPSCREW, CAP
-
219611-961 DECAL, JET CHARTDECAL, JET CHART
-
223706-719 PLATE, ADAPTER - HEADLIGHTPLATE, ADAPTER - HEADLIGHT
-
230609-817 HEADLIGHT ASSEMBLY (INC. 24)HEADLIGHT ASSEMBLY (INC. 24)
-
240609-251 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
251623-859 SCREW, MACHINESCREW, MACHINE
-
268041-246 NUT, LOCKNUT, LOCK
-
271606-158 CABLE, HOODCABLE, HOOD
-
280123-614 SPRING, ADJUSTMENTSPRING, ADJUSTMENT
-
291623-860 SCREW, MACHINESCREW, MACHINE
-
300124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
311686-578 HARNESS, WIRING - MAINHARNESS, WIRING - MAIN
-
320123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
330623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
