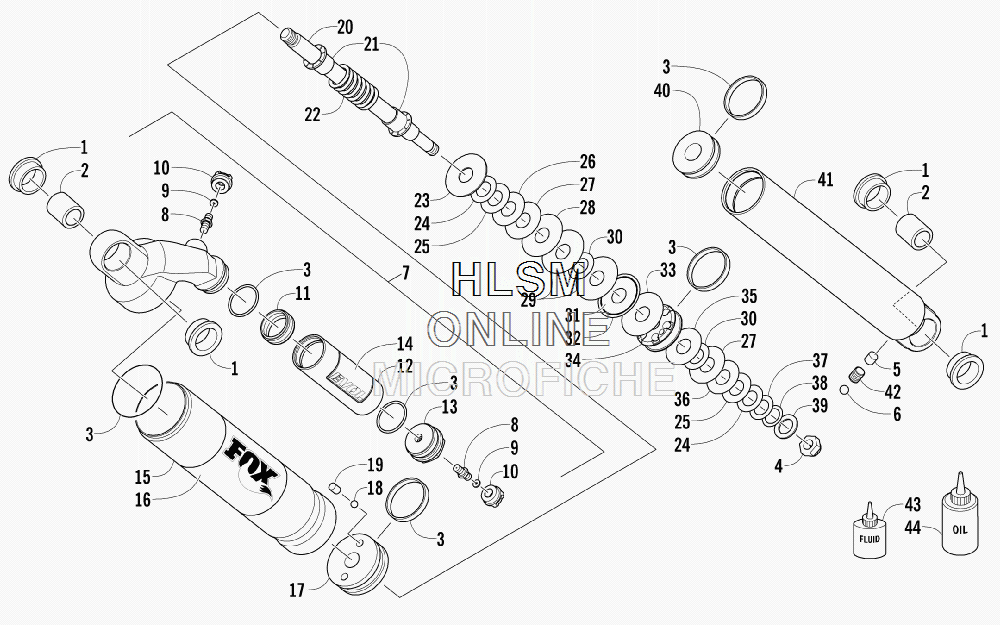

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat M 800 HCR - WHITE [S2013M8HHCUSW] - 2013 года выпуска

  • №
    Артикул
    Название
  • -
    2703-870 COMPLETE SHOCK ABSORBER - RIGHT
    COMPLETE SHOCK ABSORBER - RIGHT
  • -
    2703-871 COMPLETE SHOCK ABSORBER - LEFT
    COMPLETE SHOCK ABSORBER - LEFT
  • 1
    1604-222 BUSHING
    BUSHING
  • 2
    2604-223 SLEEVE
    SLEEVE
  • 3
    3604-652 KIT, SEAL/BEARING REBUILD (INC. 4-6)
    KIT, SEAL/BEARING REBUILD (INC. 4-6)
  • 4
    0603-301 ...NUT
    ...NUT
  • 5
    1604-428 ...PLUG, RUBBER - VALVE
    ...PLUG, RUBBER - VALVE
  • 6
    2603-337 ...BALL, AIR VALVE
    ...BALL, AIR VALVE
  • 7
    2603-963 END CAP, SHOCK - RIGHT ASSEMBLY (INC. 8-13)
    END CAP, SHOCK - RIGHT ASSEMBLY (INC. 8-13)
  • 7
    2603-962 END CAP, SHOCK - LEFT ASSEMBLY (INC. 8-13)
    END CAP, SHOCK - LEFT ASSEMBLY (INC. 8-13)
  • 8
    2603-511 ...VALVE, AIR
    ...VALVE, AIR
  • 9
    2603-965 ...SEAL
    ...SEAL
  • 10
    2603-980 ...CAP, AIR VALVE
    ...CAP, AIR VALVE
  • 11
    3604-653 ...PISTON, INTERNAL FLOATING
    ...PISTON, INTERNAL FLOATING
  • 12
    2603-967 ...RESERVIOR
    ...RESERVIOR
  • 13
    2603-966 ...END CAP, RESERVIOR
    ...END CAP, RESERVIOR
  • 14
    2603-981 DECAL, RESERVOIR
    DECAL, RESERVOIR
  • 15
    2603-411 BODY, SHOCK - UPPER
    BODY, SHOCK - UPPER
  • 16
    2603-982 DECAL, SHOCK
    DECAL, SHOCK
  • 17
    2603-906 BEARING - ASSEMBLY
    BEARING - ASSEMBLY
  • 18
    1604-315 BALL, BLEED
    BALL, BLEED
  • 19
    1603-940 SCREW, SET
    SCREW, SET
  • 20
    2603-954 ROD, SHOCK
    ROD, SHOCK
  • 21
    2603-522 GUIDE, SPRING
    GUIDE, SPRING
  • 22
    2603-656 SPRING
    SPRING
  • 23
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 24
    0603-334 VALVE, 0.800 X 0.008 IN.
    VALVE, 0.800 X 0.008 IN.
  • 25
    0603-337 VALVE, 0.900 X 0.008 IN.
    VALVE, 0.900 X 0.008 IN.
  • 26
    0603-340 VALVE, 1.000 X 0.008 IN.
    VALVE, 1.000 X 0.008 IN.
  • 27
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 28
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 29
    0603-349 VALVE, 1.300 X 0.008 IN.
    VALVE, 1.300 X 0.008 IN.
  • 30
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 31
    0603-342 VALVE, 1.100 X 0.006 IN.
    VALVE, 1.100 X 0.006 IN.
  • 32
    2603-936 VALVE, RING - 1.250 X 0.008 IN.
    VALVE, RING - 1.250 X 0.008 IN.
  • 33
    0603-348 VALVE, 1.300 X 0.006 IN.
    VALVE, 1.300 X 0.006 IN.
  • 34
    2603-934 PISTON, 0.081 IN. - ORIFICE
    PISTON, 0.081 IN. - ORIFICE
  • 35
    0603-882 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 36
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 37
    0603-330 VALVE, 0.700 X 0.006 IN.
    VALVE, 0.700 X 0.006 IN.
  • 38
    2603-902 VALVE, 0.550 X 0.020 IN.
    VALVE, 0.550 X 0.020 IN.
  • 39
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 40
    2603-919 PISTON, FLOATING W/O-RING
    PISTON, FLOATING W/O-RING
  • 41
    2603-955 BODY, SHOCK - LOWER
    BODY, SHOCK - LOWER
  • 42
    2603-338 SCREW, SET
    SCREW, SET
  • 43
    4639-012 FLUID, FLOAT SHOCK - 8 OZ
    FLUID, FLOAT SHOCK - 8 OZ
  • 44
    5639-240 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
