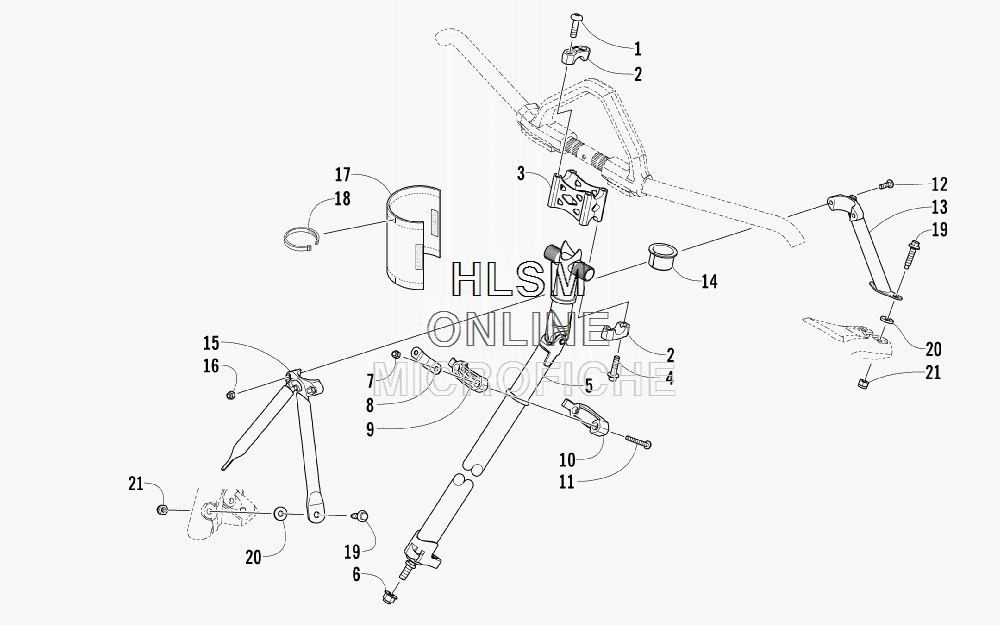

STEERING POST ASSEMBLY для Arctic Cat M 1100 Turbo Sno Pro - ORANGE [S2013M1NE4USO] - 2013 года выпуска
-
№АртикулНазвание
-
18476-830 SCREW, MACHINESCREW, MACHINE
-
21705-461 CAP, RISER BLOCK - BLACKCAP, RISER BLOCK - BLACK
-
31705-454 BLOCK, RISER - BLACKBLOCK, RISER - BLACK
-
48408-830 SCREW, CAPSCREW, CAP
-
51705-435 POST, STEERINGPOST, STEERING
-
68427-002 NUT, LOCKNUT, LOCK
-
78427-602 NUT, LOCKNUT, LOCK
-
80605-998 PLATE, RETAININGPLATE, RETAINING
-
91605-043 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
101605-044 BLOCK, MOUNTING - STEERING POSTBLOCK, MOUNTING - STEERING POST
-
118468-655 SCREW, MACHINESCREW, MACHINE
-
128468-635 SCREW, MACHINESCREW, MACHINE
-
131705-441 SUPPORT, STEERING POST - REARSUPPORT, STEERING POST - REAR
-
141705-447 BUSHINGBUSHING
-
151705-440 SUPPORT, STEERING POST - FRONTSUPPORT, STEERING POST - FRONT
-
168422-602 NUT, LOCKNUT, LOCK
-
171705-455 WRAP, STEERING POSTWRAP, STEERING POST
-
180123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
191623-982 SCREW, CAPSCREW, CAP
-
201623-968 WASHERWASHER
-
218422-802 NUT, LOCKNUT, LOCK
