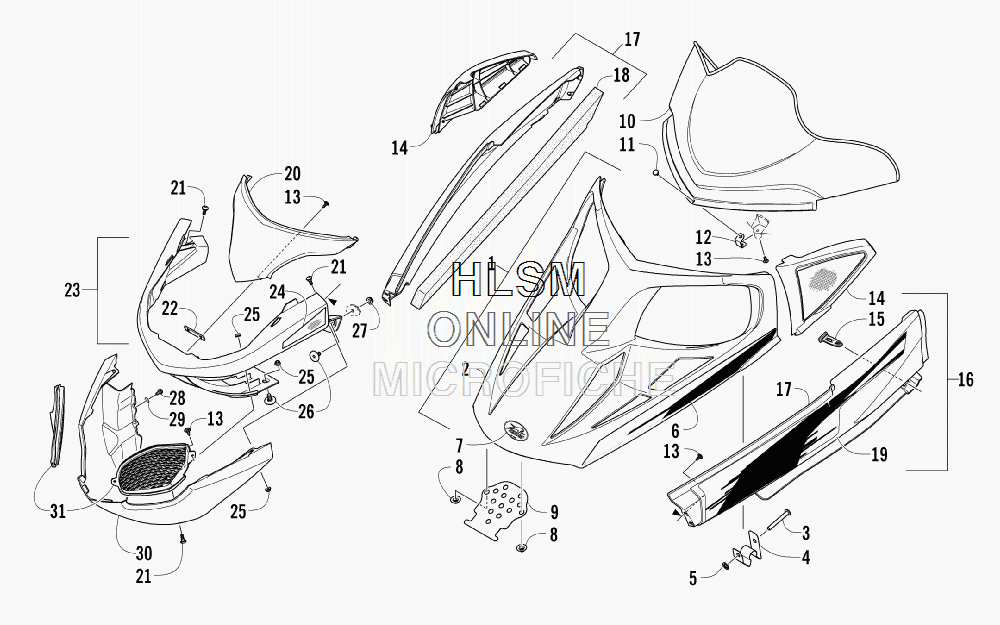

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F570 - GREEN [S2013F5DFCUSG] - 2013 года выпуска
-
№АртикулНазвание
-
13718-430 HOOD W/DECALS - GREEN (INC. 2-7)HOOD W/DECALS - GREEN (INC. 2-7)
-
27901-374 ...HOOD W/O DECALS - GREEN (INC. 3-5)...HOOD W/O DECALS - GREEN (INC. 3-5)
-
31623-610 ......PIN, RETAINING......PIN, RETAINING
-
45706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT......CLIP, HOOD HOLD-DOWN - RIGHT
-
45706-085 ......CLIP, HOOD HOLD-DOWN - LEFT......CLIP, HOOD HOLD-DOWN - LEFT
-
51623-409 ......NUT, PUSH......NUT, PUSH
-
69611-932 ...DECAL, HOOD - RIGHT - GREEN...DECAL, HOOD - RIGHT - GREEN
-
69611-933 ...DECAL, HOOD - LEFT - GREEN...DECAL, HOOD - LEFT - GREEN
-
79611-752 ...DECAL, "ARCTIC CAT" - GREEN...DECAL, "ARCTIC CAT" - GREEN
-
81623-469 NUT, STAMPEDNUT, STAMPED
-
95606-042 BRACKET, HINGEBRACKET, HINGE
-
105606-961 WINDSHIELDWINDSHIELD
-
111623-677 RIVET, PLASTICRIVET, PLASTIC
-
124606-961 BRACKET, WINDSHIELD - HOLD-DOWNBRACKET, WINDSHIELD - HOLD-DOWN
-
131623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
145606-920 BEZEL, INTAKE - RIGHT - GREENBEZEL, INTAKE - RIGHT - GREEN
-
145606-921 BEZEL, INTAKE - LEFT - GREENBEZEL, INTAKE - LEFT - GREEN
-
154606-926 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
163718-428 SPAR, FRONT W/DECALS - RIGHT - GREEN (INC. 17-19)SPAR, FRONT W/DECALS - RIGHT - GREEN (INC. 17-19)
-
163718-429 SPAR, FRONT W/DECALS - LEFT - GREEN (INC. 17-19)SPAR, FRONT W/DECALS - LEFT - GREEN (INC. 17-19)
-
173718-642 ...SPAR, FRONT W/O DECALS - RIGHT - GREEN (INC. 18)...SPAR, FRONT W/O DECALS - RIGHT - GREEN (INC. 18)
-
173718-643 ...SPAR, FRONT W/O DECALS - LEFT - GREEN (INC. 18)...SPAR, FRONT W/O DECALS - LEFT - GREEN (INC. 18)
-
173718-645 ...SPAR, FRONT W/O DECALS - LEFT - ORANGE (INC. 18)...SPAR, FRONT W/O DECALS - LEFT - ORANGE (INC. 18)
-
180617-656 ......FOAM, FRONT SPAR - RIGHT......FOAM, FRONT SPAR - RIGHT
-
180617-657 ......FOAM, FRONT SPAR - LEFT......FOAM, FRONT SPAR - LEFT
-
199611-934 ...DECAL, FRONT SPAR - RIGHT - GREEN...DECAL, FRONT SPAR - RIGHT - GREEN
-
199611-935 ...DECAL, FRONT SPAR - LEFT - GREEN...DECAL, FRONT SPAR - LEFT - GREEN
-
204606-519 FASCIA, BUMPER - UPPER - GREENFASCIA, BUMPER - UPPER - GREEN
-
210423-355 SCREW, SHOULDERSCREW, SHOULDER
-
225606-953 SPACERSPACER
-
232718-925 BUMPER, FRONT - WHITE (INC. 24)BUMPER, FRONT - WHITE (INC. 24)
-
249611-384 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
249611-385 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
258427-602 NUT, LOCKNUT, LOCK
-
261623-775 SCREW, SHOULDERSCREW, SHOULDER
-
278424-602 NUTNUT
-
280623-966 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
298053-242 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
305606-467 FASCIA, BUMPER - LOWER W/O DECALS - WHITEFASCIA, BUMPER - LOWER W/O DECALS - WHITE
-
314606-604 VENT, BUMPER - RIGHT - BLACKVENT, BUMPER - RIGHT - BLACK
-
314606-605 VENT, BUMPER - LEFT - BLACKVENT, BUMPER - LEFT - BLACK
