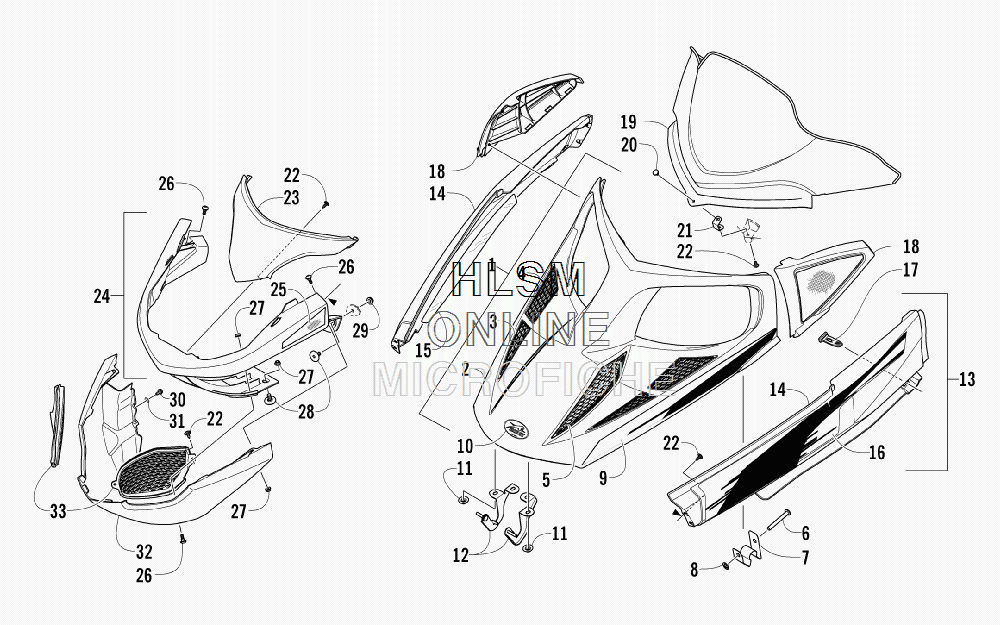

HOOD- WINDSHIELD- AND FRONT BUMPER ASSEMBLY для Arctic Cat F5 - ORANGE [S2013F5CEFUSO] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-402 HOOD W/DECALS - ORANGE (INC. 2-10)
    HOOD W/DECALS - ORANGE (INC. 2-10)
  • 2
    7901-079 ...HOOD W/O DECALS - ORANGE (INC. 3-8)
    ...HOOD W/O DECALS - ORANGE (INC. 3-8)
  • 3
    4606-624 ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
    ......VENT, HOOD - OUTER FRONT - RIGHT - BLACK
  • 3
    4606-625 ......VENT, HOOD - OUTER FRONT - LEFT - BLACK
    ......VENT, HOOD - OUTER FRONT - LEFT - BLACK
  • 4
    4606-640 ......VENT, HOOD - OUTER REAR - RIGHT - BLACK
    ......VENT, HOOD - OUTER REAR - RIGHT - BLACK
  • 4
    4606-641 ......VENT, HOOD - OUTER REAR - LEFT - BLACK
    ......VENT, HOOD - OUTER REAR - LEFT - BLACK
  • 5
    4606-614 ......VENT, HOOD - INNER - RIGHT - BLACK
    ......VENT, HOOD - INNER - RIGHT - BLACK
  • 5
    4606-615 ......VENT, HOOD - INNER - LEFT - BLACK
    ......VENT, HOOD - INNER - LEFT - BLACK
  • 6
    1623-610 ......PIN, RETAINING
    ......PIN, RETAINING
  • 7
    5706-084 ......CLIP, HOOD HOLD-DOWN - RIGHT
    ......CLIP, HOOD HOLD-DOWN - RIGHT
  • 7
    5706-085 ......CLIP, HOOD HOLD-DOWN - LEFT
    ......CLIP, HOOD HOLD-DOWN - LEFT
  • 8
    1623-409 ......NUT, PUSH
    ......NUT, PUSH
  • 9
    9611-746 ...DECAL, HOOD - RIGHT
    ...DECAL, HOOD - RIGHT
  • 9
    9611-747 ...DECAL, HOOD - LEFT
    ...DECAL, HOOD - LEFT
  • 10
    9611-751 ...DECAL, "ARCTIC CAT"
    ...DECAL, "ARCTIC CAT"
  • 11
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 12
    3706-348 BRACKET, HINGE - RIGHT
    BRACKET, HINGE - RIGHT
  • 12
    3706-347 BRACKET, HINGE - LEFT
    BRACKET, HINGE - LEFT
  • 13
    3718-410 SPAR, FRONT W/DECALS - RIGHT - ORANGE (INC. 14-16)
    SPAR, FRONT W/DECALS - RIGHT - ORANGE (INC. 14-16)
  • 13
    3718-411 SPAR, FRONT W/DECALS - LEFT - ORANGE (INC. 14 AND 16)
    SPAR, FRONT W/DECALS - LEFT - ORANGE (INC. 14 AND 16)
  • 14
    4606-900 ...SPAR, FRONT W/O DECALS - RIGHT - ORANGE
    ...SPAR, FRONT W/O DECALS - RIGHT - ORANGE
  • 14
    4606-901 ...SPAR, FRONT W/O DECALS - LEFT - ORANGE
    ...SPAR, FRONT W/O DECALS - LEFT - ORANGE
  • 15
    4606-934 ...FOIL, SPAR - RIGHT
    ...FOIL, SPAR - RIGHT
  • 16
    9611-744 ...DECAL, FRONT SPAR - FORWARD - RIGHT
    ...DECAL, FRONT SPAR - FORWARD - RIGHT
  • 16
    9611-745 ...DECAL, FRONT SPAR - FORWARD - LEFT
    ...DECAL, FRONT SPAR - FORWARD - LEFT
  • 17
    4606-926 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 18
    5606-926 BEZEL, INTAKE - RIGHT - ORANGE
    BEZEL, INTAKE - RIGHT - ORANGE
  • 18
    5606-927 BEZEL, INTAKE - LEFT - ORANGE
    BEZEL, INTAKE - LEFT - ORANGE
  • 19
    5606-961 WINDSHIELD
    WINDSHIELD
  • 20
    1623-677 RIVET, PLASTIC
    RIVET, PLASTIC
  • 21
    4606-961 BRACKET, WINDSHIELD - HOLD-DOWN
    BRACKET, WINDSHIELD - HOLD-DOWN
  • 22
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 23
    4606-517 FASCIA, BUMPER - UPPER - ORANGE
    FASCIA, BUMPER - UPPER - ORANGE
  • 24
    2718-925 BUMPER, FRONT - WHITE (INC. 25)
    BUMPER, FRONT - WHITE (INC. 25)
  • 25
    9611-384 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 25
    9611-385 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 26
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 27
    8427-602 NUT, LOCK
    NUT, LOCK
  • 28
    1623-775 SCREW, SHOULDER
    SCREW, SHOULDER
  • 29
    8424-602 NUT
    NUT
  • 30
    0623-966 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 31
    8053-242 WASHER, EXTERNAL TOOTH LOCK
    WASHER, EXTERNAL TOOTH LOCK
  • 32
    5606-467 FASCIA, BUMPER - LOWER - WHITE
    FASCIA, BUMPER - LOWER - WHITE
  • 33
    4606-604 VENT, BUMPER - RIGHT - BLACK
    VENT, BUMPER - RIGHT - BLACK
  • 33
    4606-605 VENT, BUMPER - LEFT - BLACK
    VENT, BUMPER - LEFT - BLACK
