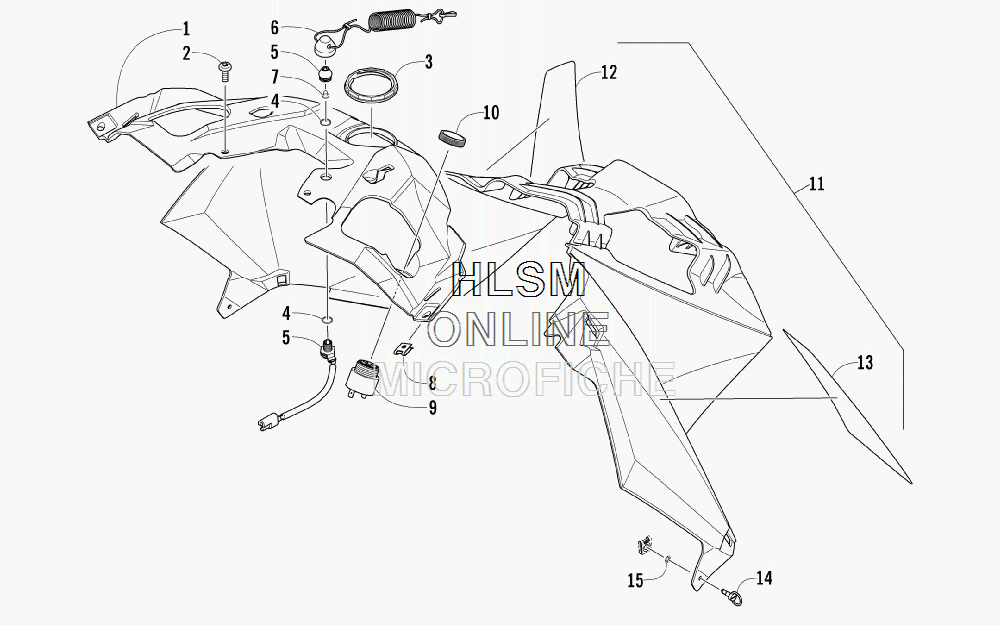

CONSOLE ASSEMBLY для Arctic Cat F 800 Tucker Hibbert Race Replica - INTERNATIONAL [2013F8H68OSB] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    5706-188 CONSOLE, UPPER
    CONSOLE, UPPER
  • 2
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    6606-390 NUT, RETAINING
    NUT, RETAINING
  • 4
    0123-985 WASHER, INTERNAL TOOTH LOCK
    WASHER, INTERNAL TOOTH LOCK
  • 5
    0709-071 TETHER SWITCH (INC. 6-7)
    TETHER SWITCH (INC. 6-7)
  • 6
    0709-055 ...TETHER CORD W/SCREW (INC. 7)
    ...TETHER CORD W/SCREW (INC. 7)
  • 7
    0623-338 ......SCREW, SELF-TAPPING
    ......SCREW, SELF-TAPPING
  • 8
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 9
    0630-243 ALARM, REVERSE (INC. 10)
    ALARM, REVERSE (INC. 10)
  • 10
    0630-017 ...RING, RETAINING
    ...RING, RETAINING
  • 11
    3718-153 CONSOLE, LOWER (INC. 12-13)
    CONSOLE, LOWER (INC. 12-13)
  • 12
    9611-499 ...DECAL, WARNING - ENGLISH
    ...DECAL, WARNING - ENGLISH
  • 13
    9611-498 ...DECAL, WARNING - FRENCH
    ...DECAL, WARNING - FRENCH
  • 14
    1623-746 PIN, RETAINING
    PIN, RETAINING
  • 15
    1623-747 NUT, PUSH
    NUT, PUSH
