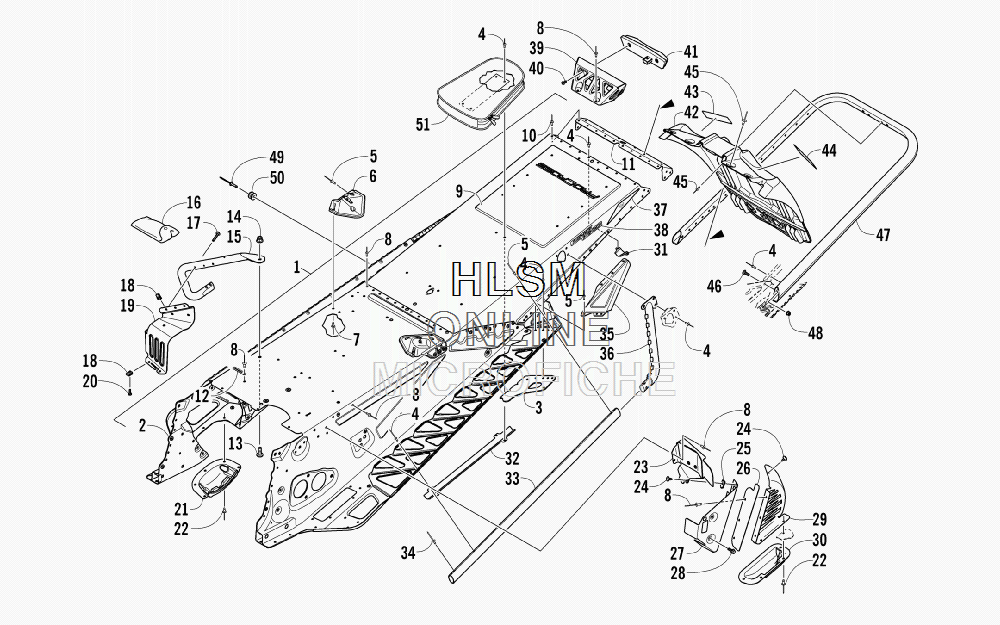

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 800 Sno Pro (ORANGE) [S2013F8HEPUSO] - 2013 года выпуска
-
№АртикулНазвание
-
-1707-823 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-912 TUNNEL ASSEMBLY (INC. 2-11)TUNNEL ASSEMBLY (INC. 2-11)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY (INC. 3-4)
-
30607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
30607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
48060-686 ......RIVET......RIVET
-
51623-241 ...RIVET...RIVET
-
61707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
61707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
71623-257 ...RIVET...RIVET
-
88060-682 ...RIVET...RIVET
-
91607-250 ...TUNNEL, REAR...TUNNEL, REAR
-
108060-484 ...RIVET...RIVET
-
111607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
121623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
138476-820 SCREW, MACHINESCREW, MACHINE
-
148427-802 NUT, LOCKNUT, LOCK
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
160744-076 KIT, TOOLKIT, TOOL
-
178468-536 SCREW, MACHINESCREW, MACHINE
-
181623-637 CLIP, U-NUTCLIP, U-NUT
-
190607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
190607-997 FOOTREST - LEFTFOOTREST - LEFT
-
208475-512 SCREW, MACHINESCREW, MACHINE
-
211607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
228061-708 RIVETRIVET
-
231702-278 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
241623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
251623-052 CLIP, U-NUTCLIP, U-NUT
-
261607-176 SHIELD, BRAKE DISC - CENTERSHIELD, BRAKE DISC - CENTER
-
271607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
288408-613 SCREW, CAPSCREW, CAP
-
290607-520 SHIELD, BRAKE DISC - REARSHIELD, BRAKE DISC - REAR
-
300607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
310630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
320630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
331607-092 ROLL, TUNNELROLL, TUNNEL
-
341623-130 RIVETRIVET
-
351607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
351607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
361607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
361607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
379611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
389611-591 DECAL, TUNNEL - "SNO PRO"DECAL, TUNNEL - "SNO PRO"
-
390630-279 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
408470-512 SCREW, MACHINESCREW, MACHINE
-
410609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
426606-394 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458061-706 RIVETRIVET
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
471707-816 BUMPER, REAR - ORANGEBUMPER, REAR - ORANGE
-
488427-602 NUT, LOCKNUT, LOCK
-
498060-630 RIVETRIVET
-
501623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
516606-615 BAG, SPARE BELTBAG, SPARE BELT
