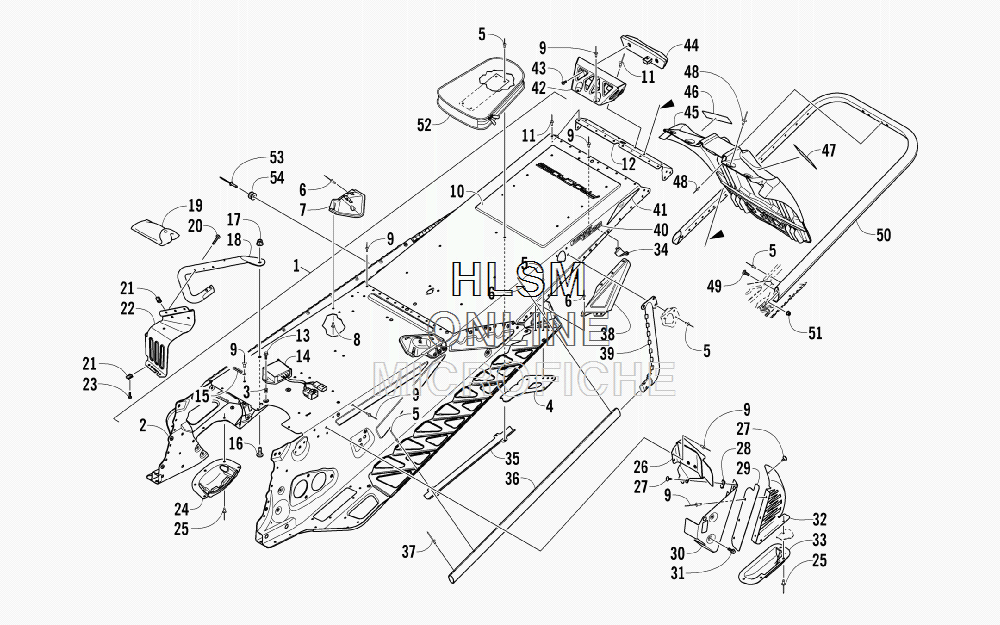

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat F 1100 Turbo Sno Pro - GREEN [S2013F1NTPUSG] - 2013 года выпуска`
-
№АртикулНазвание
-
-1707-995 COMPLETE CHASSIS ASSEMBLYCOMPLETE CHASSIS ASSEMBLY
-
11707-912 TUNNEL ASSEMBLY (INC. 2-12)TUNNEL ASSEMBLY (INC. 2-12)
-
21707-981 ...TUNNEL, FRONT - ASSEMBLY (INC. 3-5)...TUNNEL, FRONT - ASSEMBLY (INC. 3-5)
-
31623-797 ......INSERT......INSERT
-
40607-992 ......BRACKET, MOUNTING - SUSPENSION - RIGHT......BRACKET, MOUNTING - SUSPENSION - RIGHT
-
40607-993 ......BRACKET, MOUNTING - SUSPENSION - LEFT......BRACKET, MOUNTING - SUSPENSION - LEFT
-
58060-686 ......RIVET......RIVET
-
61623-241 ...RIVET...RIVET
-
71707-644 ...BRACKET, MOUNTING - REAR SPAR - RIGHT...BRACKET, MOUNTING - REAR SPAR - RIGHT
-
71707-645 ...BRACKET, MOUNTING - REAR SPAR - LEFT...BRACKET, MOUNTING - REAR SPAR - LEFT
-
81623-257 ...RIVET...RIVET
-
98060-682 ...RIVET...RIVET
-
101607-250 ...TUNNEL, REAR...TUNNEL, REAR
-
118060-484 ...RIVET...RIVET
-
121607-104 ...END CAP, TUNNEL...END CAP, TUNNEL
-
138408-516 SCREW, CAPSCREW, CAP
-
140630-288 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
151623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
168476-820 SCREW, MACHINESCREW, MACHINE
-
178427-802 NUT, LOCKNUT, LOCK
-
181707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
181707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
190744-064 KIT, TOOLKIT, TOOL
-
208468-536 SCREW, MACHINESCREW, MACHINE
-
211623-637 CLIP, U-NUTCLIP, U-NUT
-
220607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
220607-997 FOOTREST - LEFTFOOTREST - LEFT
-
238475-512 SCREW, MACHINESCREW, MACHINE
-
241607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
258061-708 RIVETRIVET
-
261702-278 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
271623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
281623-052 CLIP, U-NUTCLIP, U-NUT
-
291607-176 SHIELD, BRAKE DISC - CENTERSHIELD, BRAKE DISC - CENTER
-
301607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
318408-613 SCREW, CAPSCREW, CAP
-
320607-520 SHIELD, BRAKE DISC - REARSHIELD, BRAKE DISC - REAR
-
330607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
340630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
350630-308 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
361607-092 ROLL, TUNNELROLL, TUNNEL
-
371623-130 RIVETRIVET
-
381607-162 GUSSET, RUNNING BOARD - RIGHTGUSSET, RUNNING BOARD - RIGHT
-
381607-163 GUSSET, RUNNING BOARD - LEFTGUSSET, RUNNING BOARD - LEFT
-
391607-040 GUSSET, TUNNEL ROLL - RIGHTGUSSET, TUNNEL ROLL - RIGHT
-
391607-041 GUSSET, TUNNEL ROLL - LEFTGUSSET, TUNNEL ROLL - LEFT
-
409611-591 DECAL, TUNNEL - "SNO PRO"DECAL, TUNNEL - "SNO PRO"
-
419611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
420630-279 BRACKET, MOUNTING - TAILLIGHTBRACKET, MOUNTING - TAILLIGHT
-
438470-512 SCREW, MACHINESCREW, MACHINE
-
440609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
456606-394 SNOWFLAPSNOWFLAP
-
465611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
475611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
488061-706 RIVETRIVET
-
498476-620 SCREW, MACHINESCREW, MACHINE
-
501707-815 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
518427-602 NUT, LOCKNUT, LOCK
-
526606-615 BAG, SPARE BELTBAG, SPARE BELT
-
538060-630 RIVETRIVET
-
541623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
