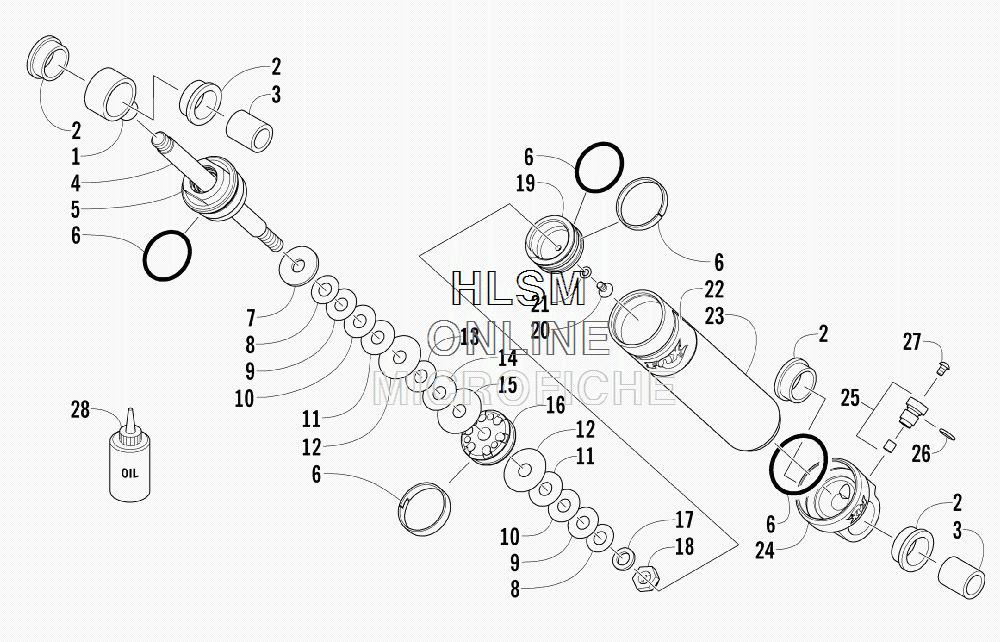

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F 1100 LXR - GREEN [S2013F1NLXUSG] - 2013 года выпуска

  • №
    Артикул
    Название
  • -
    2704-148 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    0604-893 EYELET, SHOCK
    EYELET, SHOCK
  • 2
    1604-222 BUSHING
    BUSHING
  • 3
    2604-223 SLEEVE
    SLEEVE
  • 4
    2604-863 ROD, SHOCK
    ROD, SHOCK
  • 5
    2604-413 CAP, SHOCK
    CAP, SHOCK
  • 6
    2604-815 KIT, SEAL/REBUILD
    KIT, SEAL/REBUILD
  • 7
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 8
    0603-335 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 9
    0603-338 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 10
    0603-341 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 11
    0603-344 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 12
    0603-347 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 13
    0603-334 VALVE, 0.800 X 0.008 IN.
    VALVE, 0.800 X 0.008 IN.
  • 14
    0603-343 VALVE, 1.100 X 0.008 IN.
    VALVE, 1.100 X 0.008 IN.
  • 15
    0603-891 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 16
    2604-412 PISTON, 0.055 IN. - ORIFICE
    PISTON, 0.055 IN. - ORIFICE
  • 17
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 18
    0603-301 NUT
    NUT
  • 19
    2604-816 PISTON, FLOATING
    PISTON, FLOATING
  • 20
    1604-316 SCREW, MACHINE W/O-RING (INC. 21)
    SCREW, MACHINE W/O-RING (INC. 21)
  • 21
    1604-425 ...O-RING
    ...O-RING
  • 22
    2604-897 DECAL, SHOCK
    DECAL, SHOCK
  • 23
    2604-864 BODY, SHOCK
    BODY, SHOCK
  • 24
    2604-817 END CAP, SHOCK - ASSEMBLY (INC. 25-26)
    END CAP, SHOCK - ASSEMBLY (INC. 25-26)
  • 25
    0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 26)
    ...VALVE, PRESSURE - ASSEMBLY (INC. 26)
  • 26
    1604-318 ......O-RING
    ......O-RING
  • 27
    0624-097 SCREW, VALVE
    SCREW, VALVE
  • 28
    5639-240 OIL, SHOCK - 1 QT
    OIL, SHOCK - 1 QT
