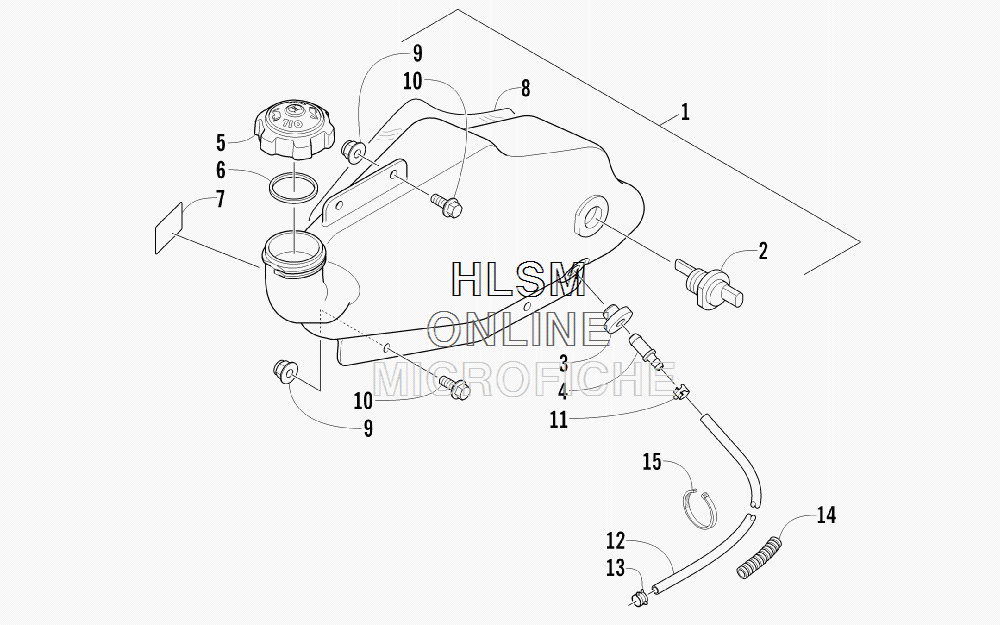

OIL TANK ASSEMBLY для Arctic Cat Bearcat 570 XT [2013BCDWTUSL] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-909 TANK, OIL (INC. 2-8)
    TANK, OIL (INC. 2-8)
  • 2
    0609-773 ...SENSOR, LOW OIL
    ...SENSOR, LOW OIL
  • 3
    1670-325 ...GROMMET
    ...GROMMET
  • 4
    1670-481 ...FITTING, OIL TANK
    ...FITTING, OIL TANK
  • 5
    1670-365 ...CAP, OIL TANK (INC. 6)
    ...CAP, OIL TANK (INC. 6)
  • 6
    0109-733 ......SEAL, CAP - OIL TANK
    ......SEAL, CAP - OIL TANK
  • 7
    1611-564 ...DECAL, OIL TANK
    ...DECAL, OIL TANK
  • 8
    6606-185 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 9
    8427-602 NUT, LOCK
    NUT, LOCK
  • 10
    8408-620 SCREW, CAP
    SCREW, CAP
  • 11
    1623-042 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    6101-009 HOSE, OIL - 25 FT
    HOSE, OIL - 25 FT
  • 12
    6101-001 HOSE, OIL - 100 FT
    HOSE, OIL - 100 FT
  • 13
    1623-351 CLAMP, HOSE
    CLAMP, HOSE
  • 14
    0716-558 CONDUIT, PROTECTIVE - 10 FT
    CONDUIT, PROTECTIVE - 10 FT
  • 15
    0123-811 TIE, CABLE - 4 IN.
    TIE, CABLE - 4 IN.
