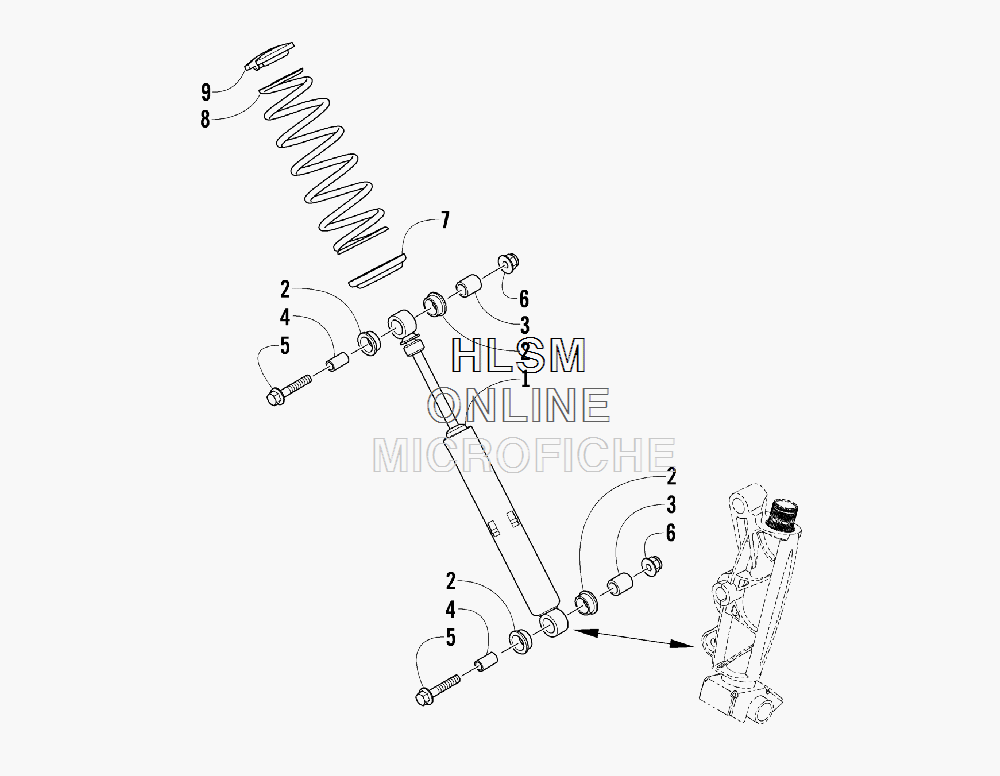

SHOCK ABSORBER ASSEMBLY для Arctic Cat Bearcat 570 [S2013BCDFCUSL] - 2013 года выпуска
-
№АртикулНазвание
-
12703-092 SHOCK, SKI (INC. 2-3)SHOCK, SKI (INC. 2-3)
-
21604-262 ...BUSHING...BUSHING
-
31604-397 ...SLEEVE INNER...SLEEVE INNER
-
43604-109 SLEEVESLEEVE
-
58408-055 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
72603-719 RETAINER, SPRINGRETAINER, SPRING
-
82703-735 SPRING, COMPRESSION - WHITESPRING, COMPRESSION - WHITE
-
91603-889 RETAINER, SPRINGRETAINER, SPRING
