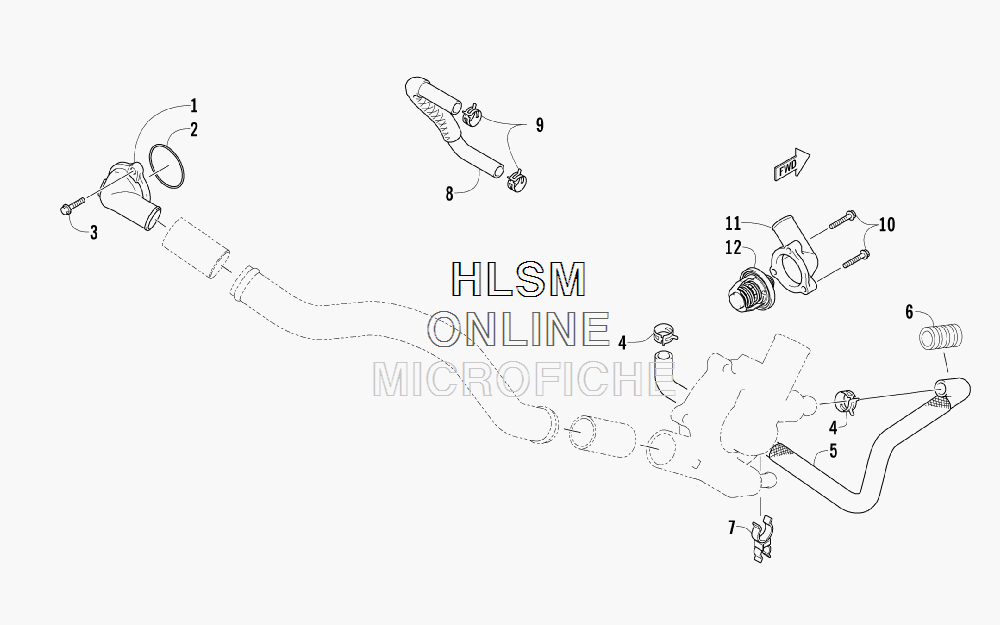

WATER HOSE ASSEMBLY для Arctic Cat XF 1100 TURBO SNO PRO (ORANGE) - 2012 года выпуска`
-
№АртикулНазвание
-
13007-190 FITTING, HOSEFITTING, HOSE
-
23007-191 O-RINGO-RING
-
33007-515 SCREW, CAPSCREW, CAP
-
43008-488 CLAMP, HOSE - NO. 2CLAMP, HOSE - NO. 2
-
53007-514 HOSE, BYPASS - NO. 2HOSE, BYPASS - NO. 2
-
60716-908 CONDUIT, FLEXIBLE - 3 FTCONDUIT, FLEXIBLE - 3 FT
-
73007-516 CLIP, RETAININGCLIP, RETAINING
-
83007-823 HOSE, BYPASS - NO. 3HOSE, BYPASS - NO. 3
-
93004-923 CLAMP, HOSE - NO. 3CLAMP, HOSE - NO. 3
-
103007-369 SCREW, CAPSCREW, CAP
-
113003-924 CAP, THERMOSTATCAP, THERMOSTAT
-
123007-182 THERMOSTAT, WATERTHERMOSTAT, WATER
