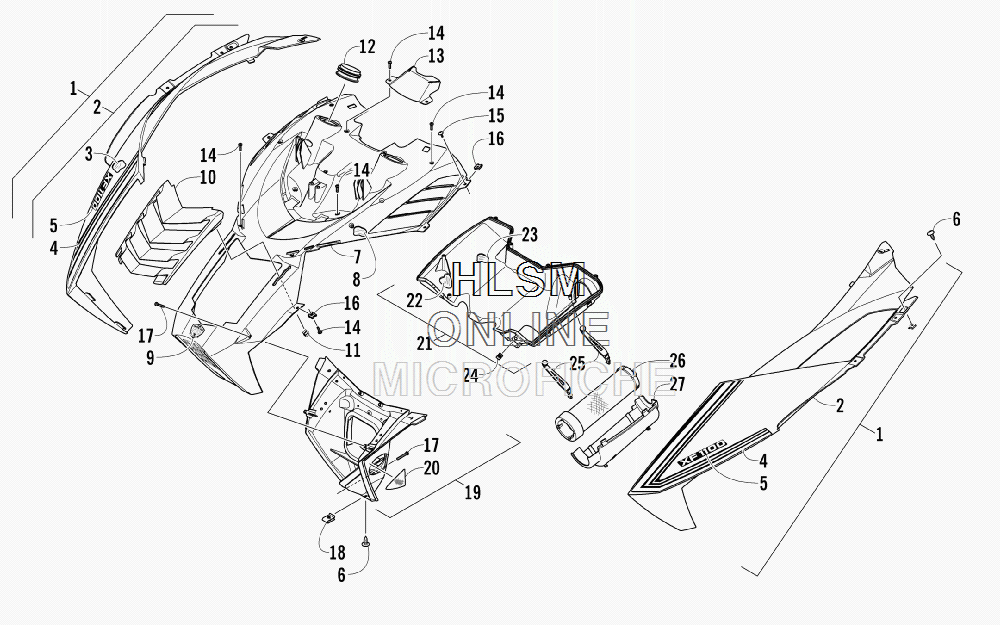

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat XF 1100 TURBO SNO PRO ANNIVERSARY EDITION - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-240 HOOD W/DECALS - RIGHT - BLACK (INC. 2-5)
    HOOD W/DECALS - RIGHT - BLACK (INC. 2-5)
  • 1
    3718-241 HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
    HOOD W/DECALS - LEFT - BLACK (INC. 2-5)
  • 2
    3718-486 ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
    ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
  • 2
    3718-313 ...HOOD W/O DECALS - LEFT - BLACK (INC. 3)
    ...HOOD W/O DECALS - LEFT - BLACK (INC. 3)
  • 3
    6606-420 ......FOIL, PROTECTIVE - RIGHT
    ......FOIL, PROTECTIVE - RIGHT
  • 3
    6606-415 ......FOIL, PROTECTIVE - LEFT
    ......FOIL, PROTECTIVE - LEFT
  • 4
    9611-614 ...DECAL, HOOD - FORWARD - RIGHT
    ...DECAL, HOOD - FORWARD - RIGHT
  • 4
    9611-615 ...DECAL, HOOD - FORWARD - LEFT
    ...DECAL, HOOD - FORWARD - LEFT
  • 5
    9611-617 ...DECAL, HOOD - "XF 1100"
    ...DECAL, HOOD - "XF 1100"
  • 6
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 7
    6606-276 PLENUM, INTAKE - UPPER
    PLENUM, INTAKE - UPPER
  • 8
    9611-603 DECAL, 50TH ANNIVERSARY
    DECAL, 50TH ANNIVERSARY
  • 9
    6606-388 GRILLE, INTERCOOLER
    GRILLE, INTERCOOLER
  • 10
    1623-765 CLIP, RETAINING
    CLIP, RETAINING
  • 11
    6606-386 BOOT, INTAKE
    BOOT, INTAKE
  • 12
    5706-229 GUARD, STEERING POST - BLACK
    GUARD, STEERING POST - BLACK
  • 13
    1623-933 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 15
    1623-939 CLIP, U-NUT
    CLIP, U-NUT
  • 16
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    0423-060 CLIP, U-NUT
    CLIP, U-NUT
  • 18
    5706-379 PLENUM, INTAKE - LOWER FRONT (INC. 19)
    PLENUM, INTAKE - LOWER FRONT (INC. 19)
  • 19
    9611-510 ...DECAL, REFLECTOR - AMBER
    ...DECAL, REFLECTOR - AMBER
  • 20
    6606-421 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 21
    5706-380 PLENUM, INTAKE - LOWER REAR (INC. 22)
    PLENUM, INTAKE - LOWER REAR (INC. 22)
  • 22
    6606-422 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 23
    1623-023 CLIP, U-NUT
    CLIP, U-NUT
  • 24
    6606-392 STRAP, HOLD-DOWN
    STRAP, HOLD-DOWN
  • 25
    2670-265 FILTER, AIR
    FILTER, AIR
  • 26
    6606-365 COVER, AIR FILTER
    COVER, AIR FILTER
