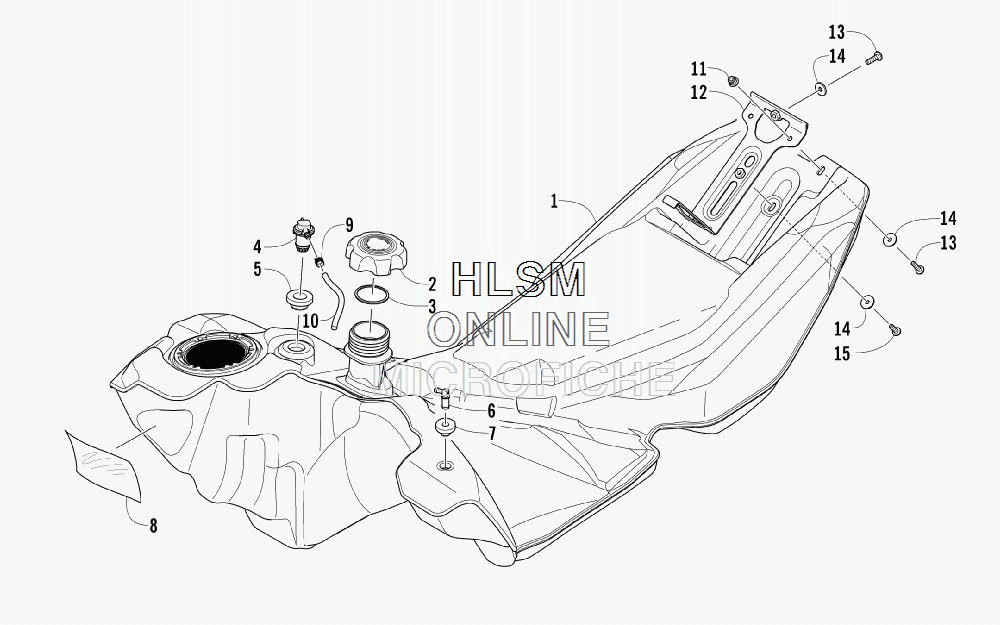

GAS TANK ASSEMBLY для Arctic Cat XF 1100 TURBO LXR (GREEN) - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-959 TANK, GAS - ASSEMBLY (INC. 2-7)
    TANK, GAS - ASSEMBLY (INC. 2-7)
  • 2
    2670-048 ...CAP, GAS TANK - ASSEMBLY (INC. 3)
    ...CAP, GAS TANK - ASSEMBLY (INC. 3)
  • 3
    0109-733 ......SEAL, GAS TANK CAP
    ......SEAL, GAS TANK CAP
  • 4
    1670-787 ...VALVE, CHECK
    ...VALVE, CHECK
  • 5
    1670-822 ...GROMMET
    ...GROMMET
  • 6
    2670-363 ...FITTING, ELBOW
    ...FITTING, ELBOW
  • 7
    2670-364 ...GROMMET
    ...GROMMET
  • 8
    0619-206 FOIL, PROTECTIVE - 30 FT
    FOIL, PROTECTIVE - 30 FT
  • 9
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    6101-009 HOSE, GASLINE - 50 FT
    HOSE, GASLINE - 50 FT
  • 10
    6101-001 HOSE, GASLINE - 100 FT
    HOSE, GASLINE - 100 FT
  • 11
    8427-602 NUT, LOCK
    NUT, LOCK
  • 12
    5706-098 BRACKET, HOLD-DOWN
    BRACKET, HOLD-DOWN
  • 13
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    8050-223 WASHER
    WASHER
  • 15
    8468-616 SCREW, MACHINE
    SCREW, MACHINE
