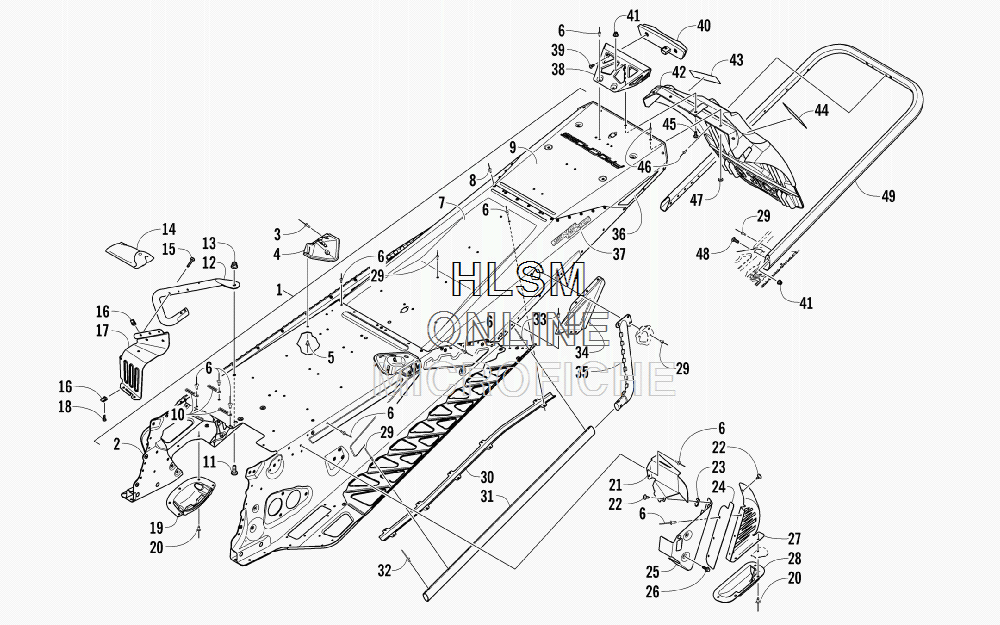

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat XF 1100 SNO PRO ANNIVERSARY EDITION - 2012 года выпуска`
-
№АртикулНазвание
-
-1707-540 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
11707-717 TUNNEL ASSEMBLY - BLACK (INC. 2-9)TUNNEL ASSEMBLY - BLACK (INC. 2-9)
-
21707-714 ...TUNNEL, FRONT - ASSEMBLY - BLACK...TUNNEL, FRONT - ASSEMBLY - BLACK
-
31623-206 ...RIVET...RIVET
-
41707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
41707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
51623-257 ...RIVET...RIVET
-
68060-702 ...RIVET - BLACK...RIVET - BLACK
-
71707-694 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
88060-504 ...RIVET - BLACK...RIVET - BLACK
-
91707-715 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
118476-820 SCREW, MACHINESCREW, MACHINE
-
121707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
121707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
138427-802 NUT, LOCKNUT, LOCK
-
140744-064 KIT, TOOLKIT, TOOL
-
158468-536 SCREW, MACHINESCREW, MACHINE
-
161623-637 CLIP, U-NUTCLIP, U-NUT
-
171707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
171707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
188475-512 SCREW, MACHINESCREW, MACHINE
-
191607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
208061-708 RIVETRIVET
-
212602-436 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
221623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231623-052 CLIP, U-NUTCLIP, U-NUT
-
241707-639 SHIELD, BRAKE DISC - CENTER - BLACKSHIELD, BRAKE DISC - CENTER - BLACK
-
251607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
268408-613 SCREW, CAPSCREW, CAP
-
271707-563 SHIELD, BRAKE DISC - REAR - BLACKSHIELD, BRAKE DISC - REAR - BLACK
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
298060-706 RIVET - BLACKRIVET - BLACK
-
300630-275 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311707-697 ROLL, TUNNEL - BLACKROLL, TUNNEL - BLACK
-
321623-130 RIVETRIVET
-
331623-241 RIVETRIVET
-
341707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
341707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
351707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
351707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
369611-724 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
369611-725 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
379611-612 DECAL, TUNNEL - "SNO PRO"DECAL, TUNNEL - "SNO PRO"
-
380730-159 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
398470-512 SCREW, MACHINESCREW, MACHINE
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
418427-602 NUT, LOCKNUT, LOCK
-
426606-123 SNOWFLAPSNOWFLAP
-
435611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
445611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
458468-616 SCREW, MACHINESCREW, MACHINE
-
468061-706 RIVETRIVET
-
470123-802 WASHERWASHER
-
488476-620 SCREW, MACHINESCREW, MACHINE
-
491707-494 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
