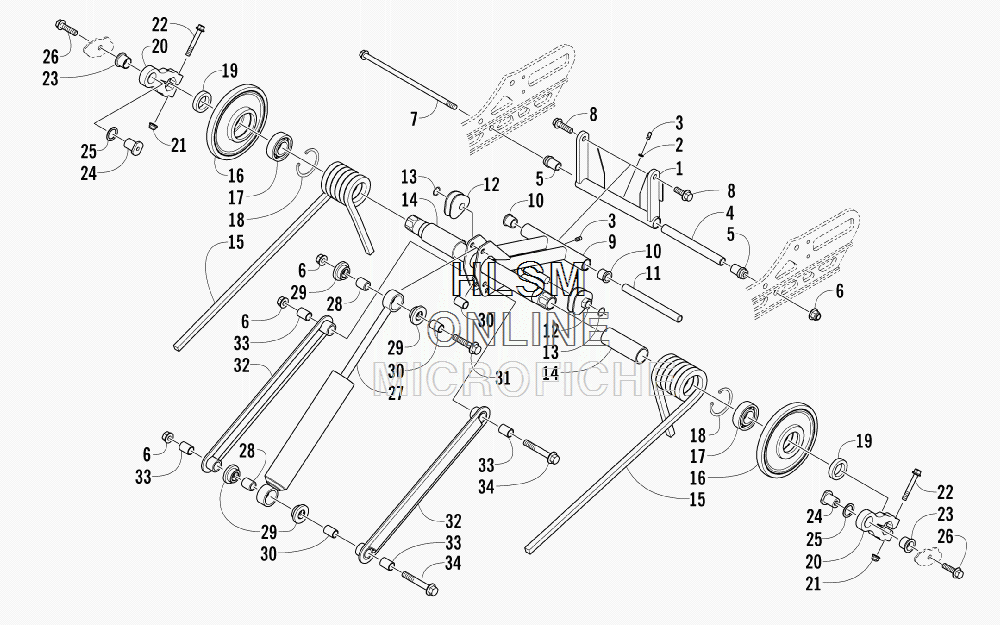

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat TZ1 - 2012 года выпуска`
-
№АртикулНазвание
-
11704-624 ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)ARM, REAR - BLACK (INC. 2 AND ONE NO. 3)
-
21623-011 ...WASHER...WASHER
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
43604-285 AXLE, REAR ARM - INNERAXLE, REAR ARM - INNER
-
53604-286 BUSHING, REAR ARMBUSHING, REAR ARM
-
68427-002 NUT, LOCKNUT, LOCK
-
71423-064 SCREW, CAPSCREW, CAP
-
88408-041 SCREW, CAPSCREW, CAP
-
91704-677 ARM, IDLER - BLACK (INC. 10 AND ONE NO. 3)ARM, IDLER - BLACK (INC. 10 AND ONE NO. 3)
-
101604-100 ...BUSHING, FLARED...BUSHING, FLARED
-
113604-276 AXLEAXLE
-
121604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
121604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
130623-138 RING, RETAININGRING, RETAINING
-
143604-288 SLEEVE, SPRINGSLEEVE, SPRING
-
151704-146 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
151704-147 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
163604-264 WHEEL, IDLER (INC. 17-18)WHEEL, IDLER (INC. 17-18)
-
173604-257 ...BEARING, BALL-30MM...BEARING, BALL-30MM
-
183604-256 ...RING, RETAINING...RING, RETAINING
-
193604-289 SPACER, PIVOT - IDLER ARMSPACER, PIVOT - IDLER ARM
-
201704-627 ARM, PIVOT IDLER (INC. 21-23)ARM, PIVOT IDLER (INC. 21-23)
-
218427-802 ...NUT, LOCK...NUT, LOCK
-
228408-860 ...SCREW, CAP...SCREW, CAP
-
233604-028 ...BUSHING, FLARED...BUSHING, FLARED
-
243604-275 AXLE, POWDER METALAXLE, POWDER METAL
-
251604-187 WASHER, PIVOT - IDLER ARMWASHER, PIVOT - IDLER ARM
-
268408-031 SCREW, CAPSCREW, CAP
-
273604-331 SHOCK ABSORBER (INC. 28-29)SHOCK ABSORBER (INC. 28-29)
-
281604-397 ...SLEEVE...SLEEVE
-
291604-262 ...BUSHING...BUSHING
-
303604-109 SLEEVESLEEVE
-
318408-050 SCREW, CAPSCREW, CAP
-
320704-928 LINK, SHOCKLINK, SHOCK
-
333604-330 AXLE, LINKAXLE, LINK
-
348408-090 SCREW, CAPSCREW, CAP
