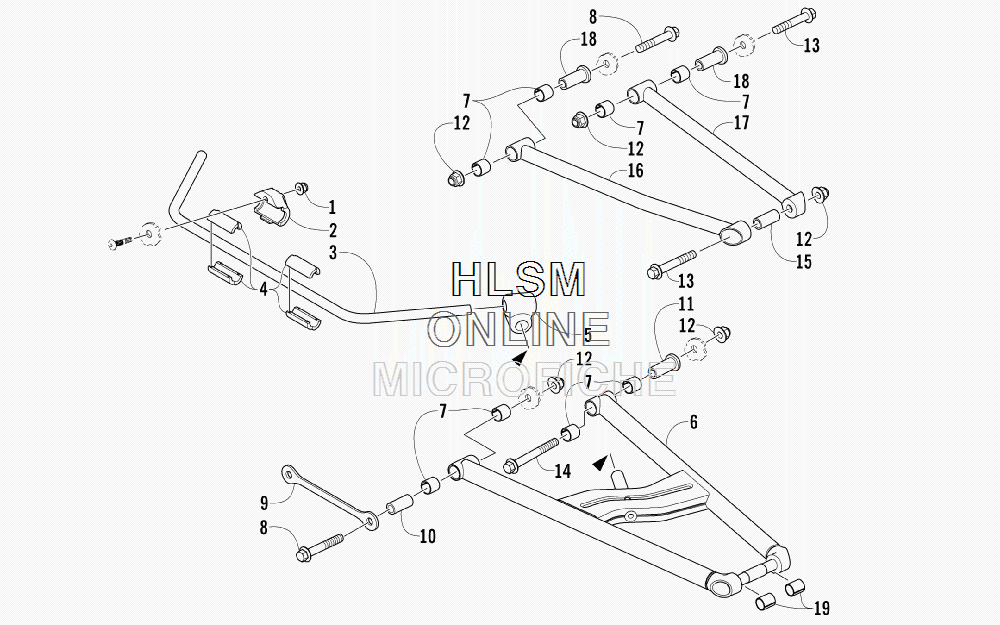

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat TZ1 TURBO LXR LTD - 2012 года выпуска`
-
№АртикулНазвание
-
18427-602 NUT, LOCKNUT, LOCK
-
22603-818 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
32703-323 BAR, SWAYBAR, SWAY
-
42603-712 SLEEVE, SWAY BARSLEEVE, SWAY BAR
-
52603-710 LINK, SWAY BARLINK, SWAY BAR
-
62703-464 A-ARM, LOWER - BLACK (INC. EIGHT NO. 7)A-ARM, LOWER - BLACK (INC. EIGHT NO. 7)
-
71603-895 ...BEARING...BEARING
-
88408-070 SCREW, CAPSCREW, CAP
-
94606-402 BRACE, LOWER A-ARMBRACE, LOWER A-ARM
-
102603-544 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
112603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
128427-002 NUT, LOCKNUT, LOCK
-
138408-065 SCREW, CAPSCREW, CAP
-
148408-090 SCREW, CAPSCREW, CAP
-
152603-643 AXLE, SPINDLEAXLE, SPINDLE
-
162703-262 A-ARM, UPPER - FRONT - BLACK (INC. FOUR NO. 7)A-ARM, UPPER - FRONT - BLACK (INC. FOUR NO. 7)
-
172703-248 A-ARM, UPPER - REAR - BLACK (INC. FOUR NO. 7)A-ARM, UPPER - REAR - BLACK (INC. FOUR NO. 7)
-
182603-634 AXLE, INNER - UPPER A-ARMAXLE, INNER - UPPER A-ARM
-
192603-577 BEARING, SPLITBEARING, SPLIT
