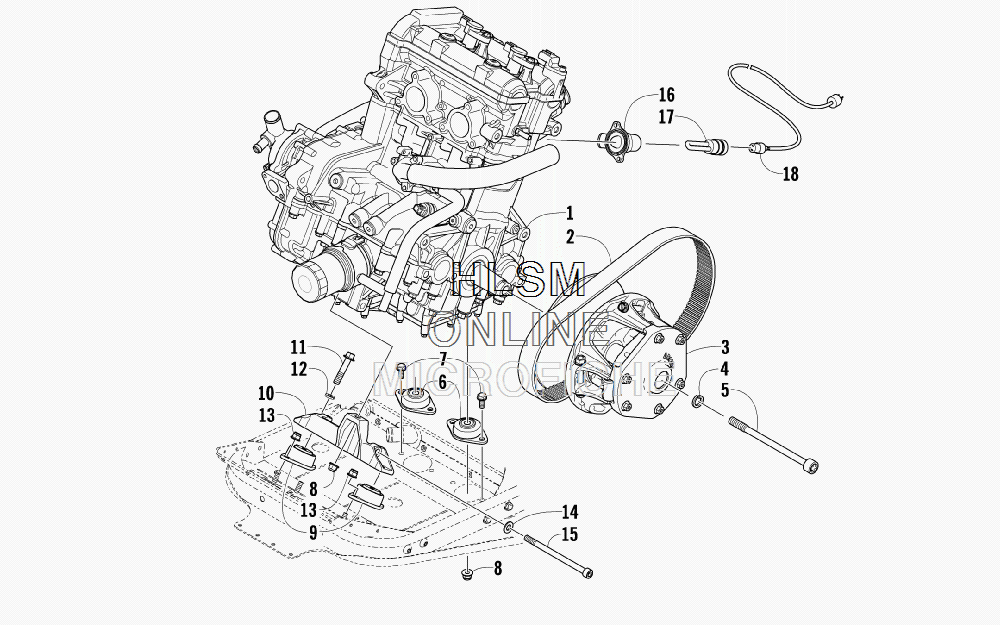

ENGINE AND RELATED PARTS для Arctic Cat TZ1 (INTERNATIONAL) - 2012 года выпуска`
-
№АртикулНазвание
-
10662-570 ENGINE, AA11L5ENGINE, AA11L5
-
20627-069 BELT, DRIVE-S-2A-1.406"WX45-394"OC-DCBELT, DRIVE-S-2A-1.406"WX45-394"OC-DC
-
30746-441 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
41623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
51623-620 BOLT, CLUTCHBOLT, CLUTCH
-
60608-590 MOUNT, ENGINE - REARMOUNT, ENGINE - REAR
-
71623-437 SCREW, CAPSCREW, CAP
-
88427-002 NUT, LOCKNUT, LOCK
-
90608-596 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
100708-552 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
118408-020 SCREW, CAPSCREW, CAP
-
128451-182 WASHER, LOCKWASHER, LOCK
-
138427-802 NUT, LOCKNUT, LOCK
-
148450-157 WASHERWASHER
-
151623-925 SCREW, CAPSCREW, CAP
-
160613-012 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
170609-877 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
180709-081 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
