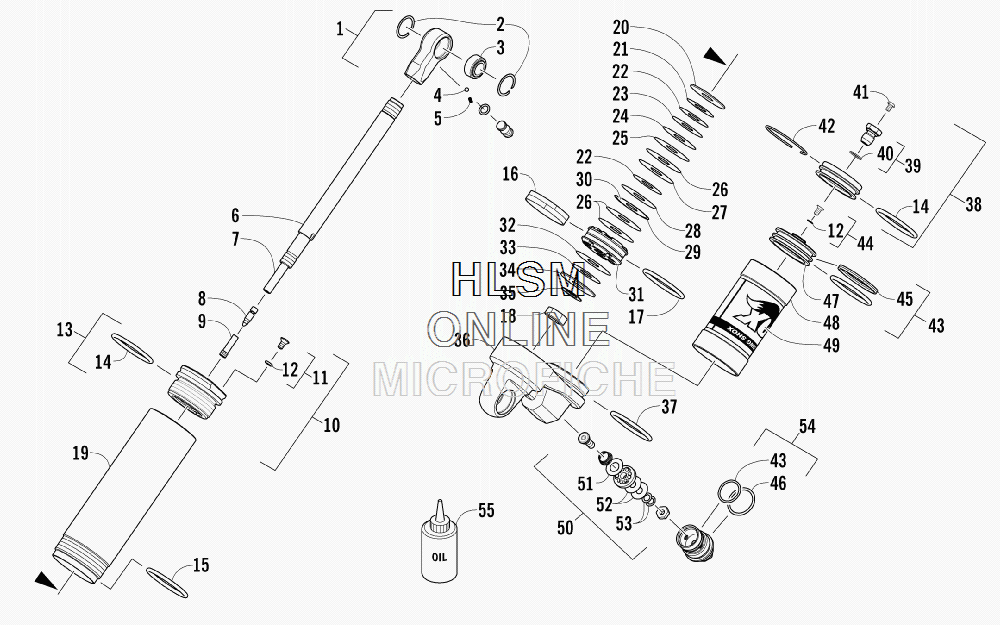

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat SNO PRO 600 CROSS COUNTRY (INTERNATONAL) - 2012 года выпуска`

№

Артикул

Название
-

2704-159 COMPLETE SHOCK ABSORBER

COMPLETE SHOCK ABSORBER

130 ₽
1

3604-727 EYELET, SHOCK - ASSEMBLY (INC. 2-5)

EYELET, SHOCK - ASSEMBLY (INC. 2-5)

44 510 ₽
2

3604-527 ...RING, RETAINING

...RING, RETAINING

2 070 ₽
3

3604-526 ...BEARING

...BEARING

13 310 ₽
4

1604-315 ...BALL, BLEED

...BALL, BLEED

630 ₽
5

2603-529 ...SPRING

...SPRING

1 040 ₽
6

3604-728 SHAFT, SHOCK

SHAFT, SHOCK

13 720 ₽
7

3604-800 ROD, DAMPING ADJUSTER - ASSEMBLY

ROD, DAMPING ADJUSTER - ASSEMBLY

3 110 ₽
8

2604-953 NEEDLE, DAMPING W/O-RING

NEEDLE, DAMPING W/O-RING

6 650 ₽
9

3604-423 VALVE, CHECK - ASSEMBLY

VALVE, CHECK - ASSEMBLY

23 290 ₽
10

2603-013 KIT, REBUILD - SHOCK (INC. 11-18)

KIT, REBUILD - SHOCK (INC. 11-18)

27 870 ₽
11

2604-530 ...SCREW, MACHINE (INC. ONE NO. 12)

...SCREW, MACHINE (INC. ONE NO. 12)

480 ₽
12

1604-425 ......O-RING

......O-RING

690 ₽
13

2604-956 ...BEARING - ASSEMBLY (INC. ONE NO. 14)

...BEARING - ASSEMBLY (INC. ONE NO. 14)

37 020 ₽
14

0603-671 ......O-RING

......O-RING

630 ₽
15

2603-328 ...O-RING

...O-RING

2 490 ₽
16

3604-723 ...STRAP, PISTON

...STRAP, PISTON

6 030 ₽
17

3604-725 ...O-RING

...O-RING

230 ₽
18

2604-448 ...NUT

...NUT

2 700 ₽
19

3604-799 BODY, SHOCK

BODY, SHOCK

26 830 ₽
20

2604-449 WASHER, TOP OUT

WASHER, TOP OUT

2 070 ₽
21

3604-628 VALVE, 0.800 X 0.004 IN.

VALVE, 0.800 X 0.004 IN.

1 870 ₽
22

2604-480 VALVE, 0.950 X 0.010 IN.

VALVE, 0.950 X 0.010 IN.

2 070 ₽
23

2604-485 VALVE, 1.100 X 0.008 IN.

VALVE, 1.100 X 0.008 IN.

1 020 ₽
24

2604-492 VALVE, 1.350 X 0.010 IN.

VALVE, 1.350 X 0.010 IN.

1 870 ₽
25

2604-496 VALVE, 1.425 X 0.008 IN.

VALVE, 1.425 X 0.008 IN.

1 870 ₽
26

2604-502 VALVE, 1.600 X 0.010 IN.

VALVE, 1.600 X 0.010 IN.

1 870 ₽
27

2604-501 VALVE, 1.600 X 0.008 IN.

VALVE, 1.600 X 0.008 IN.

1 870 ₽
28

2604-503 VALVE, 1.600 X 0.012 IN.

VALVE, 1.600 X 0.012 IN.

1 870 ₽
29

2604-692 VALVE, RING - 1.600 X 0.012 IN.

VALVE, RING - 1.600 X 0.012 IN.

2 070 ₽
30

2604-495 VALVE, 1.425 X 0.006 IN.

VALVE, 1.425 X 0.006 IN.

1 870 ₽
31

3604-730 PISTON, DAMPING

PISTON, DAMPING

11 020 ₽
32

2604-498 VALVE, 1.425 X 0.012 IN.

VALVE, 1.425 X 0.012 IN.

1 870 ₽
33

3604-626 VALVE, 1.000 X 0.004 IN.

VALVE, 1.000 X 0.004 IN.

1 870 ₽
34

3604-624 WASHER, TOP OUT

WASHER, TOP OUT

1 040 ₽
35

3604-184 WASHER, BACKUP

WASHER, BACKUP

2 070 ₽
36

3604-726 END CAP, BODY/RESERVOIR (INC. 15 AND 37)

END CAP, BODY/RESERVOIR (INC. 15 AND 37)

21 630 ₽
37

2603-504 ...O-RING

...O-RING

2 070 ₽
38

2603-525 END CAP, RESERVOIR (INC. ONE NO. 14 AND 39-40)

END CAP, RESERVOIR (INC. ONE NO. 14 AND 39-40)

11 850 ₽
39

0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 40)

...VALVE, PRESSURE - ASSEMBLY (INC. 40)

8 310 ₽
40

1604-318 ......O-RING

......O-RING

1 870 ₽
41

0624-097 SCREW, VALVE

SCREW, VALVE

130 ₽
42

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
43

3604-539 KIT, REBUILD - RESERVOIR (INC. ONE NO. 12, 14, 37, AND 44-46)

KIT, REBUILD - RESERVOIR (INC. ONE NO. 12, 14, 37, AND 44-46)

29 950 ₽
44

1604-316 ...SCREW, MACHINE W/O-RING (INC. ONE NO. 12)

...SCREW, MACHINE W/O-RING (INC. ONE NO. 12)

770 ₽
45

1603-235 ...STRAP, PISTON

...STRAP, PISTON

3 110 ₽
46

2603-502 ...O-RING

...O-RING

980 ₽
47

3604-524 PISTON, INTERNAL FLOATING

PISTON, INTERNAL FLOATING

17 470 ₽
48

2603-515 RESERVOIR

RESERVOIR

24 540 ₽
49

3604-724 DECAL, RESERVOIR

DECAL, RESERVOIR

1 450 ₽
50

3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 51-53)

PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 51-53)

41 590 ₽
51

0603-331 ...VALVE, 0.700 X 0.008 IN.

...VALVE, 0.700 X 0.008 IN.

920 ₽
52

2603-501 ...VALVE, 0.700 X 0.010 IN.

...VALVE, 0.700 X 0.010 IN.

2 070 ₽
53

3604-165 ...PLATE, BACKUP

...PLATE, BACKUP

2 070 ₽
54

2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 46)

CARTRIDGE, DAMPING ADJUSTER (INC. 46)

14 140 ₽
55

5639-240 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
