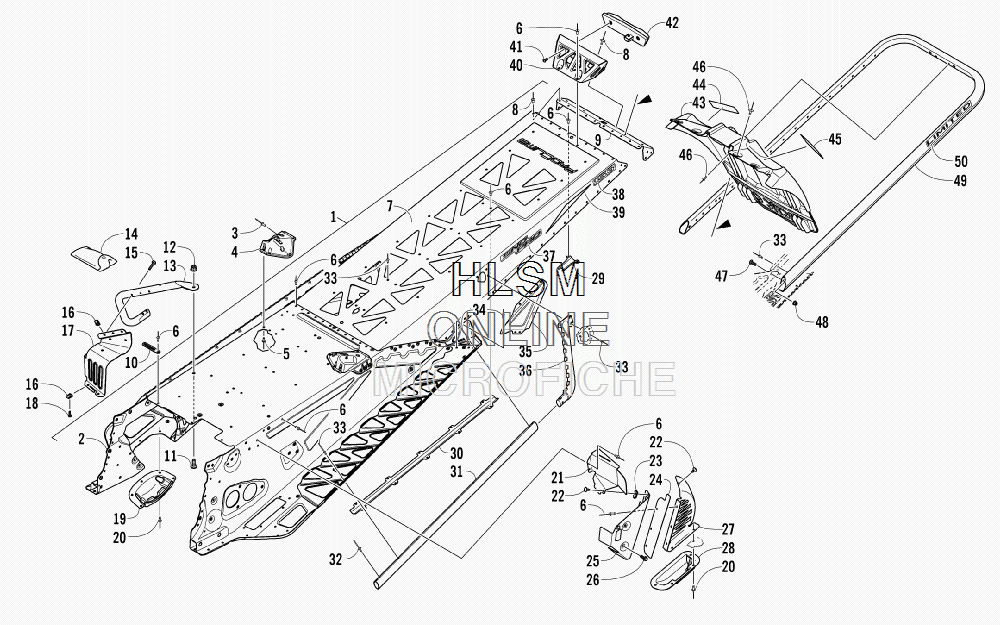

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 800 SNO PRO LTD - 2012 года выпуска`
-
№АртикулНазвание
-
-1707-625 COMPLETE CHASSIS ASSEMBLY - WHITECOMPLETE CHASSIS ASSEMBLY - WHITE
-
11707-723 TUNNEL ASSEMBLY - WHITE (INC. 2-9)TUNNEL ASSEMBLY - WHITE (INC. 2-9)
-
21707-719 ...TUNNEL, FRONT - ASSEMBLY - WHITE...TUNNEL, FRONT - ASSEMBLY - WHITE
-
31623-206 ...RIVET...RIVET
-
41707-704 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE...BRACKET, MOUNTING - REAR SPAR - RIGHT - WHITE
-
41707-705 ...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE...BRACKET, MOUNTING - REAR SPAR - LEFT - WHITE
-
51623-257 ...RIVET...RIVET
-
68060-682 ...RIVET...RIVET
-
71707-721 ...TUNNEL, REAR - 153 - WHITE...TUNNEL, REAR - 153 - WHITE
-
88060-484 ...RIVET...RIVET
-
91707-722 ...END CAP, TUNNEL - WHITE...END CAP, TUNNEL - WHITE
-
103002-964 CLAMP, WIRECLAMP, WIRE
-
118476-820 SCREW, MACHINESCREW, MACHINE
-
128427-802 NUT, LOCKNUT, LOCK
-
131707-552 SUPPORT, FOOTREST - RIGHT - WHITESUPPORT, FOOTREST - RIGHT - WHITE
-
131707-553 SUPPORT, FOOTREST - LEFT - WHITESUPPORT, FOOTREST - LEFT - WHITE
-
140744-063 KIT, TOOLKIT, TOOL
-
158468-536 SCREW, MACHINESCREW, MACHINE
-
161623-637 CLIP, U-NUTCLIP, U-NUT
-
171707-554 FOOTREST - RIGHT - WHITEFOOTREST - RIGHT - WHITE
-
171707-555 FOOTREST - LEFT - WHITEFOOTREST - LEFT - WHITE
-
188475-512 SCREW, MACHINESCREW, MACHINE
-
191607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
208061-708 RIVETRIVET
-
212602-436 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
221623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
231623-052 CLIP, U-NUTCLIP, U-NUT
-
241707-638 SHIELD, BRAKE DISC - CENTER - WHITESHIELD, BRAKE DISC - CENTER - WHITE
-
251607-118 SHIELD, BRAKE DISC - FRONTSHIELD, BRAKE DISC - FRONT
-
268408-613 SCREW, CAPSCREW, CAP
-
271707-562 SHIELD, BRAKE DISC - REAR - WHITESHIELD, BRAKE DISC - REAR - WHITE
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
290630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
300630-276 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311707-709 ROLL, TUNNEL - WHITEROLL, TUNNEL - WHITE
-
321623-130 RIVETRIVET
-
338060-686 RIVETRIVET
-
341623-241 RIVETRIVET
-
351707-710 GUSSET, RUNNING BOARD - RIGHT - WHITEGUSSET, RUNNING BOARD - RIGHT - WHITE
-
351707-711 GUSSET, RUNNING BOARD - LEFT - WHITEGUSSET, RUNNING BOARD - LEFT - WHITE
-
361707-712 GUSSET, TUNNEL ROLL - RIGHT - WHITEGUSSET, TUNNEL ROLL - RIGHT - WHITE
-
361707-713 GUSSET, TUNNEL ROLL - LEFT - WHITEGUSSET, TUNNEL ROLL - LEFT - WHITE
-
379611-613 DECAL, TUNNEL - "SNO PRO"DECAL, TUNNEL - "SNO PRO"
-
389611-630 DECAL, TUNNEL - 153DECAL, TUNNEL - 153
-
399611-512 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
400730-162 BRACKET, MOUNTING - TAILLIGHT - WHITEBRACKET, MOUNTING - TAILLIGHT - WHITE
-
418470-512 SCREW, MACHINESCREW, MACHINE
-
420609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
436606-394 SNOWFLAPSNOWFLAP
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
455611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
468061-706 RIVETRIVET
-
478476-620 SCREW, MACHINESCREW, MACHINE
-
488427-602 NUT, LOCKNUT, LOCK
-
491707-549 BUMPER, REAR - 153 - WHITEBUMPER, REAR - 153 - WHITE
-
509611-626 DECAL, BUMPER - "LIMITED"DECAL, BUMPER - "LIMITED"
