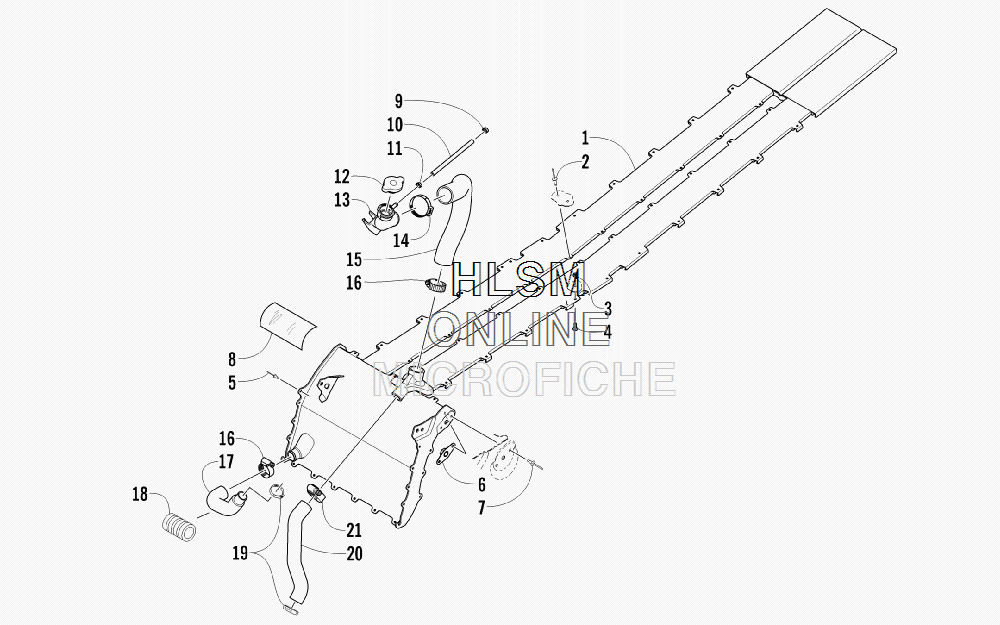

COOLING ASSEMBLY для Arctic Cat M 800 SNO PRO 153 (ORANGE) (INTERNATIONAL) - 2012 года выпуска`
-
№АртикулНазвание
-
10713-036 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVETRIVET
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
58060-686 RIVETRIVET
-
60608-631 PLATE, RETAININGPLATE, RETAINING
-
78060-688 RIVETRIVET
-
80619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
91623-619 CLAMP, HOSECLAMP, HOSE
-
100610-538 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
-
111623-655 CLAMP, HOSECLAMP, HOSE
-
122606-284 CAPCAP
-
130613-030 NECK, FILLERNECK, FILLER
-
140423-317 CLAMP, HOSECLAMP, HOSE
-
150613-097 HOSE, COOLANT - FILLER NECK/HEAT EXCHANGERHOSE, COOLANT - FILLER NECK/HEAT EXCHANGER
-
161623-092 CLAMP, HOSECLAMP, HOSE
-
170610-864 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
180619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
191623-656 CLAMP, HOSECLAMP, HOSE
-
200613-033 HOSE, COOLANT - HEAT EXCHANGER/ENGINEHOSE, COOLANT - HEAT EXCHANGER/ENGINE
-
210610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
210610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
