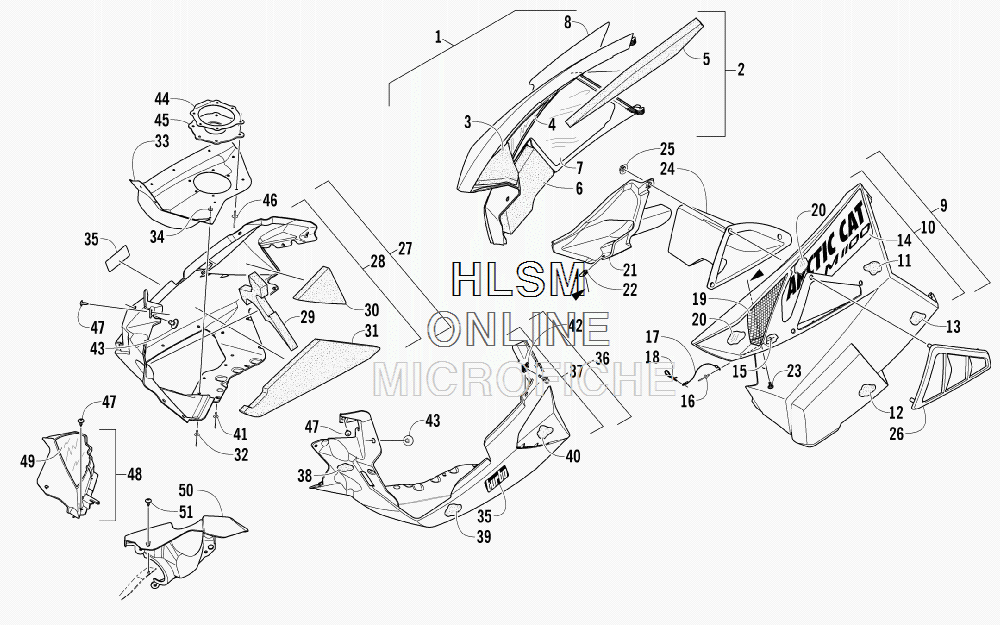

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 1100 TURBO SNO PRO LTD - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3718-252 PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)
    PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-8)
  • 2
    3718-246 ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)
    ...PANEL, SIDE - RIGHT W/O DECALS - WHITE (INC. 3-7)
  • 3
    0617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
    ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
  • 4
    6606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT
    ......FOIL, PROTECTIVE - MIDDLE - RIGHT
  • 5
    0617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
    ......FOAM, SIDE PANEL - UPPER REAR - RIGHT
  • 6
    0617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
    ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
  • 7
    6606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
    ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
  • 8
    9611-624 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
    ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
  • 9
    3718-293 PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-14)
    PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 10-14)
  • 10
    3718-295 ...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-13)
    ...PANEL, SIDE - LEFT W/O DECALS - WHITE (INC. 11-13)
  • 11
    0617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT
    ......FOAM, SIDE PANEL - UPPER REAR - LEFT
  • 12
    0617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
    ......FOAM, SIDE PANEL - LOWER FRONT - LEFT
  • 13
    0617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT
    ......FOAM, SIDE PANEL - LOWER REAR - LEFT
  • 14
    9611-663 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
    ...DECAL, SIDE PANEL - UPPER FRONT - LEFT
  • 15
    8050-127 WASHER
    WASHER
  • 16
    8060-486 RIVET
    RIVET
  • 17
    0607-447 CABLE
    CABLE
  • 18
    0605-283 CLIP, HAIRPIN
    CLIP, HAIRPIN
  • 19
    5706-227 SCREEN, INTAKE
    SCREEN, INTAKE
  • 20
    0619-206 FOIL, PROTECTIVE - 30 FT
    FOIL, PROTECTIVE - 30 FT
  • 21
    2602-457 DUCT, AIR - CLUTCH
    DUCT, AIR - CLUTCH
  • 22
    1623-030 CLIP, U-NUT
    CLIP, U-NUT
  • 23
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 24
    0708-596 DUCT, HEAT
    DUCT, HEAT
  • 25
    1623-469 NUT, STAMPED
    NUT, STAMPED
  • 26
    0608-648 VENT, HEAT DUCT
    VENT, HEAT DUCT
  • 27
    3718-256 PLATE, SKID - RIGHT W/DECALS - WHITE (INC. 28-34 AND ONE NO. 35)
    PLATE, SKID - RIGHT W/DECALS - WHITE (INC. 28-34 AND ONE NO. 35)
  • 28
    3718-254 ...PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 29-34)
    ...PLATE, SKID - RIGHT W/O DECALS - WHITE (INC. 29-34)
  • 29
    0617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT
    ......FOAM, SKID PLATE - UPPER FRONT - RIGHT
  • 30
    0617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT
    ......FOAM, SKID PLATE - UPPER REAR - RIGHT
  • 31
    0617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT
    ......FOAM, SKID PLATE - CENTER FRONT - RIGHT
  • 32
    8061-688 ......RIVET
    ......RIVET
  • 33
    1712-723 ......DEFLECTOR, HEAT - WHITE
    ......DEFLECTOR, HEAT - WHITE
  • 34
    0123-802 ......WASHER
    ......WASHER
  • 35
    9611-611 ...DECAL, "TURBO"
    ...DECAL, "TURBO"
  • 36
    3718-257 PLATE, SKID - LEFT W/DECALS - WHITE (INC. 37-40 AND ONE NO. 35)
    PLATE, SKID - LEFT W/DECALS - WHITE (INC. 37-40 AND ONE NO. 35)
  • 37
    3718-255 ...PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 38-40)
    ...PLATE, SKID - LEFT W/O DECALS - WHITE (INC. 38-40)
  • 38
    0617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT
    ......FOAM, SKID PLATE - UPPER FRONT - LEFT
  • 39
    0617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT
    ......FOAM, SKID PLATE - CENTER FRONT - LEFT
  • 40
    0617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT
    ......FOAM, SKID PLATE - UPPER REAR - LEFT
  • 41
    8061-708 RIVET
    RIVET
  • 42
    1623-748 CLIP, RETAINING
    CLIP, RETAINING
  • 43
    5606-639 PIN, RETAINING
    PIN, RETAINING
  • 44
    2612-685 PLATE, EXHAUST OUTLET
    PLATE, EXHAUST OUTLET
  • 45
    2612-669 SEAL, EXHAUST OUTLET
    SEAL, EXHAUST OUTLET
  • 46
    8060-488 RIVET
    RIVET
  • 47
    1623-129 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 48
    3718-302 FASCIA, FRONT RIGHT - BLACK (INC. 49)
    FASCIA, FRONT RIGHT - BLACK (INC. 49)
  • 49
    6606-404 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 50
    6606-351 FASCIA, FRONT LEFT - BLACK
    FASCIA, FRONT LEFT - BLACK
  • 51
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
