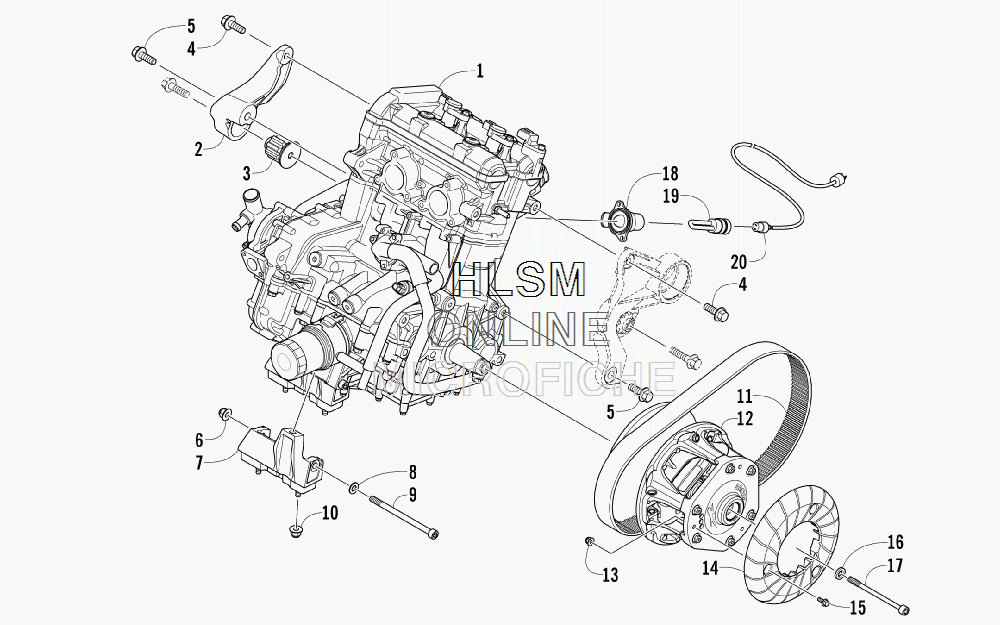

ENGINE AND RELATED PARTS для Arctic Cat M 1100 TURBO SNO PRO 162 (BLACK) - 2012 года выпуска`
-
№АртикулНазвание
-
10762-607 ENGINE, AB11L5ENGINE, AB11L5
-
20708-574 BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)BRACKET, ENGINE MOUNTING - RIGHT REAR (INC. 3)
-
30608-654 ...MOUNT, ENGINE...MOUNT, ENGINE
-
48413-036 SCREW, CAPSCREW, CAP
-
58413-241 SCREW, CAPSCREW, CAP
-
68427-002 NUT, LOCKNUT, LOCK
-
70608-619 MOUNT, ENGINE - FRONTMOUNT, ENGINE - FRONT
-
88450-157 WASHERWASHER
-
91623-925 SCREW, CAPSCREW, CAP
-
108427-802 NUT, LOCKNUT, LOCK
-
110627-082 BELT, DRIVEBELT, DRIVE
-
120746-444 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
138427-602 NUT, LOCKNUT, LOCK
-
140646-448 COVER, DRIVE CLUTCHCOVER, DRIVE CLUTCH
-
158408-620 SCREW, CAPSCREW, CAP
-
161623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
171623-620 BOLT, CLUTCHBOLT, CLUTCH
-
180609-928 ADAPTER, HEATER ELEMENT - OPTIONALADAPTER, HEATER ELEMENT - OPTIONAL
-
198408-650 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
218408-617 SCREW, CAP - OPTIONALSCREW, CAP - OPTIONAL
-
200609-927 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
200609-926 ELEMENT, HEATER - OPTIONALELEMENT, HEATER - OPTIONAL
-
220709-082 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
-
220709-081 HARNESS, HEATER ELEMENT - OPTIONALHARNESS, HEATER ELEMENT - OPTIONAL
