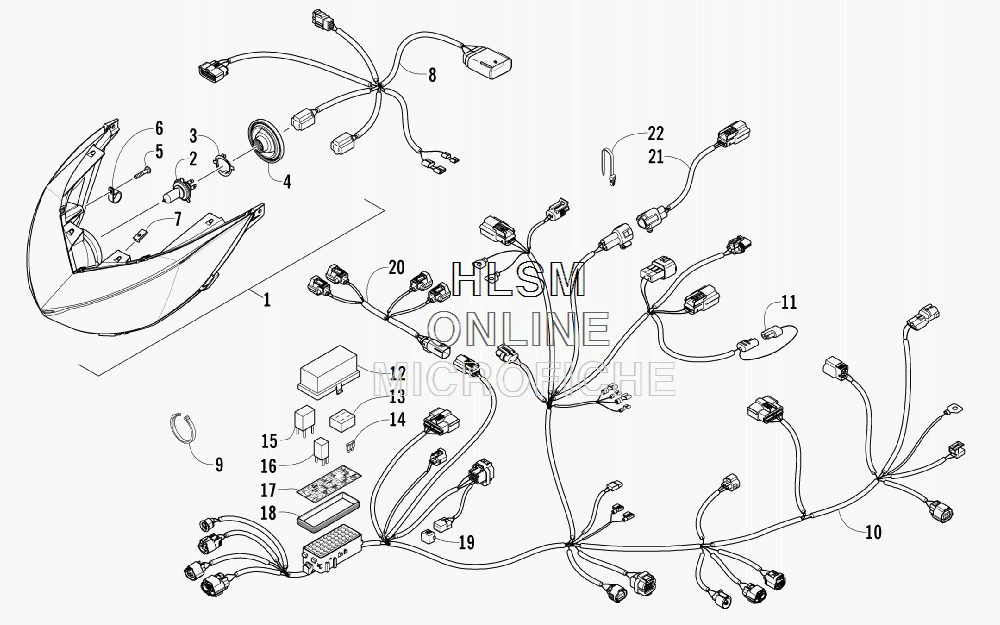

HEADLIGHT AND WIRING ASSEMBLIES для Arctic Cat M 1100 TURBO SNO PRO - ANNIVERSARY EDITION - 2012 года выпуска
-
№АртикулНазвание
-
10609-899 HEADLIGHT ASSEMBLY (INC. 2-4)HEADLIGHT ASSEMBLY (INC. 2-4)
-
20109-724 ...BULB...BULB
-
30409-097 ...RETAINER...RETAINER
-
40609-919 ...BOOT...BOOT
-
51623-915 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
61623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
70423-031 CLIP, U-NUTCLIP, U-NUT
-
81686-639 HARNESS, HOODHARNESS, HOOD
-
90123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
90123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
101686-621 HARNESS, MAIN (INC. 11-18)HARNESS, MAIN (INC. 11-18)
-
110486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
120430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
130430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
140430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
140430-098 ...FUSE - 20 AMP...FUSE - 20 AMP
-
140430-099 ...FUSE - 25 AMP...FUSE - 25 AMP
-
140430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
150430-033 ...RELAY (5-PIN) - 30 AMP...RELAY (5-PIN) - 30 AMP
-
160430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
178611-663 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
180430-086 ...SEAL...SEAL
-
190430-097 COVER, DIAGNOSTICS CONNECTOR - OPTIONALCOVER, DIAGNOSTICS CONNECTOR - OPTIONAL
-
201686-571 HARNESS, ADAPTER - INJECTORHARNESS, ADAPTER - INJECTOR
-
211686-642 HARNESS, EXTENSION - TAILLIGHTHARNESS, EXTENSION - TAILLIGHT
-
220623-677 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
13718-244 PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-10)PANEL, SIDE - RIGHT W/DECALS - BLACK (INC. 2-10)
-
23718-312 ...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)...PANEL, SIDE - RIGHT W/O DECALS - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
-
89611-604 ...DECAL, SIDE PANEL - UPPER FRONT - RIGHT...DECAL, SIDE PANEL - UPPER FRONT - RIGHT
-
99611-608 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
109611-606 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
113718-273 PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 12-18)PANEL, SIDE - LEFT W/DECALS - BLACK (INC. 12-18)
-
123718-261 ...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 13-15)...PANEL, SIDE - LEFT W/O DECALS - BLACK (INC. 13-15)
-
130617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
140617-633 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
169611-657 ...DECAL, SIDE PANEL - UPPER FRONT - LEFT - BLACK...DECAL, SIDE PANEL - UPPER FRONT - LEFT - BLACK
-
179611-609 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - BLACK...DECAL, SIDE PANEL - LOWER FRONT - LEFT - BLACK
-
189611-607 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK
-
198050-127 WASHERWASHER
-
208060-486 RIVETRIVET
-
210607-447 CABLECABLE
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
235706-227 SCREEN, INTAKESCREEN, INTAKE
-
240619-206 FOIL, PROTECTIVE - 30 FTFOIL, PROTECTIVE - 30 FT
-
252602-457 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
261623-030 CLIP, U-NUTCLIP, U-NUT
-
270623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280708-596 DUCT, HEATDUCT, HEAT
-
291623-469 NUT, STAMPEDNUT, STAMPED
-
300608-648 VENT, HEAT DUCTVENT, HEAT DUCT
-
313718-258 PLATE, SKID - RIGHT W/DECALS - BLACK (INC. 32-38 AND ONE NO. 39)PLATE, SKID - RIGHT W/DECALS - BLACK (INC. 32-38 AND ONE NO. 39)
-
323718-234 ...PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 33-38)...PLATE, SKID - RIGHT W/O DECALS - BLACK (INC. 33-38)
-
330617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
340617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
350617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
368061-708 ......RIVET......RIVET
-
371712-722 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
380123-802 ......WASHER......WASHER
-
399611-610 ...DECAL, "TURBO"...DECAL, "TURBO"
-
403718-259 PLATE, SKID - LEFT W/DECALS - BLACK (INC. 41-44 AND ONE NO. 39)PLATE, SKID - LEFT W/DECALS - BLACK (INC. 41-44 AND ONE NO. 39)
-
413718-235 ...PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 42-44)...PLATE, SKID - LEFT W/O DECALS - BLACK (INC. 42-44)
-
420617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
430617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
440617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
451623-748 CLIP, RETAININGCLIP, RETAINING
-
465606-639 PIN, RETAININGPIN, RETAINING
-
472612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
482612-669 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
498060-508 RIVETRIVET
-
501623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
513718-302 FASCIA, FRONT RIGHT - BLACK (INC. 52)FASCIA, FRONT RIGHT - BLACK (INC. 52)
-
526606-404 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
536606-351 FASCIA, FRONT LEFT - BLACKFASCIA, FRONT LEFT - BLACK
-
540623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
