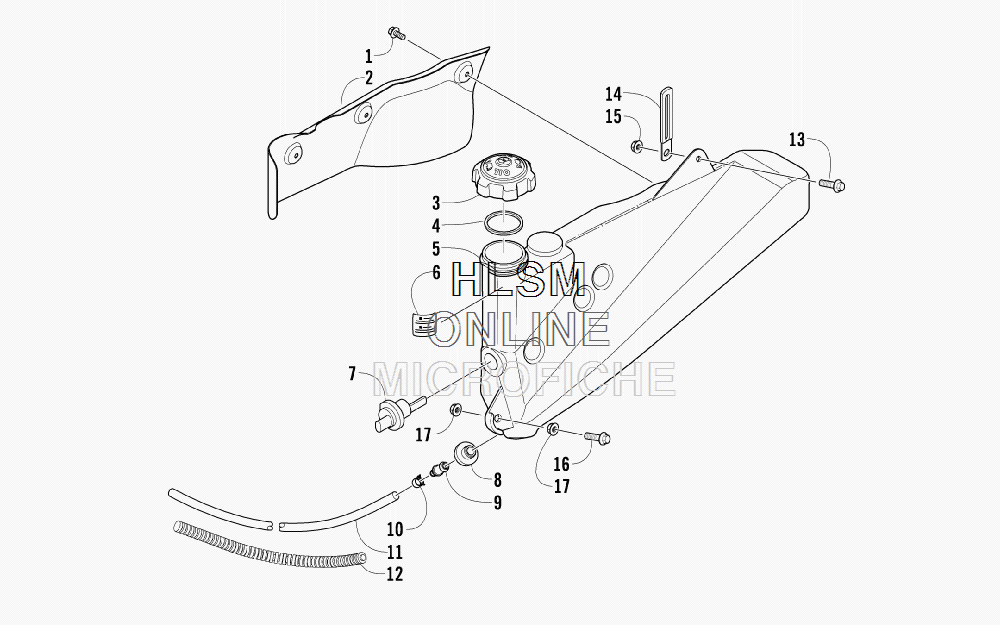

OIL TANK ASSEMBLY для Arctic Cat F5 LXR (ORANGE) - 2012 года выпуска`
-
№АртикулНазвание
-
11623-760 SCREW, CAPSCREW, CAP
-
22612-158 SHIELD, HEATSHIELD, HEAT
-
31670-365 CAP, OIL TANK (INC. 4)CAP, OIL TANK (INC. 4)
-
40109-733 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
51670-811 TANK, OILTANK, OIL
-
61611-564 DECAL, OIL TANKDECAL, OIL TANK
-
70609-773 SENSOR, LOW OILSENSOR, LOW OIL
-
81670-325 GROMMETGROMMET
-
91670-481 FITTING, OIL TANKFITTING, OIL TANK
-
101623-042 CLAMP, HOSECLAMP, HOSE
-
110610-692 HOSE, OIL - 25 FTHOSE, OIL - 25 FT
-
110610-693 HOSE, OIL - 100 FTHOSE, OIL - 100 FT
-
120716-558 CONDUIT, PROTECTIVE - 10 FTCONDUIT, PROTECTIVE - 10 FT
-
138408-635 SCREW, MACHINESCREW, MACHINE
-
143002-964 CLAMP, WIRECLAMP, WIRE
-
158427-602 NUT, LOCKNUT, LOCK
-
161623-645 SCREW, CAPSCREW, CAP
-
178427-802 NUT, LOCKNUT, LOCK
